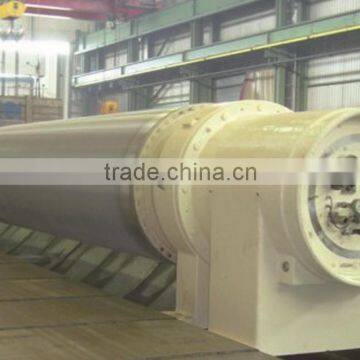

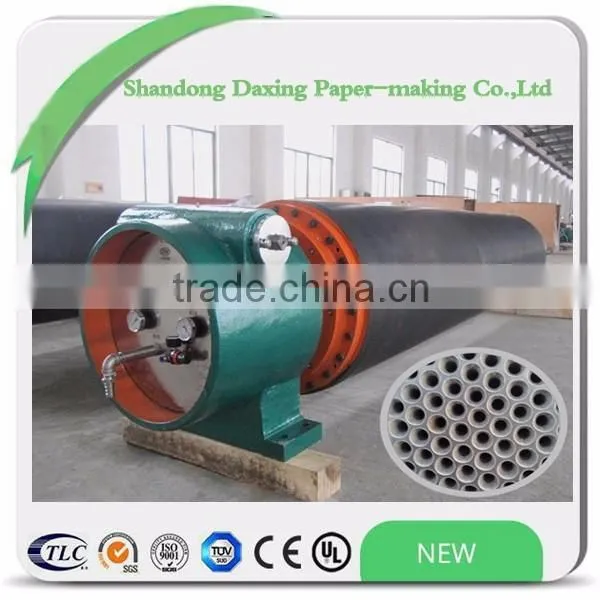

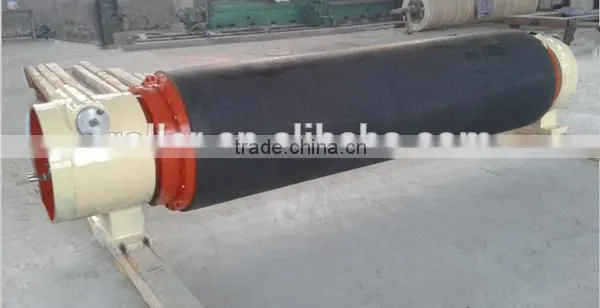

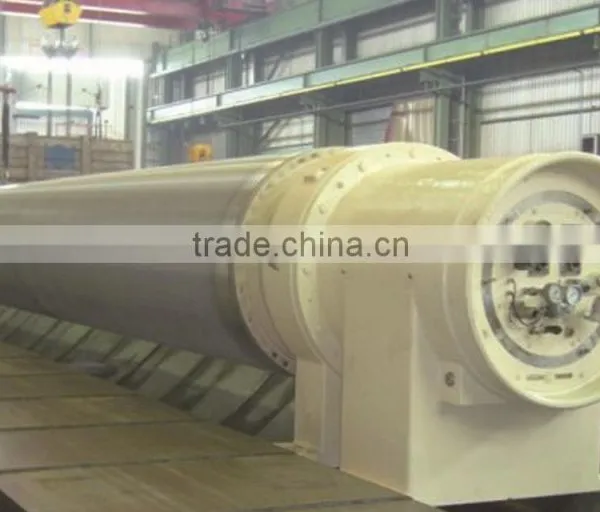

Paper making machine suction press roll
Vacuum/Suction press roller for paper machine
The press vacuum roll use for the media, high speed paper machine.
The dehydration is better than the ordinary press.Surface have a littele
hole,when it make paper the felt and wet paper moisture out to the
vacuum water area through the hole.Throw it into the white water plate
by the centrifugal force.
Press vacuum roll surface coat the rubber,it make the press uniformity,
decrease the damage of the felt and improve the pressure of high press line.
The body of roll is made by the stainless steel or bronze.
Specifications
trim width |
1575-4200mm |
diameter |
ø650-ø1000mm |
face width |
2020-4800 |
suction form |
single/double |
rubber thickness |
25mm |
The main products of our company include series of cultural paper machine, pulp board paper machine, corrugating paper machine of vat former ,fourdrinier and interformer, what’s more, 1575-2400mm series of high speed toilet paper machine sells very well in our market. At the same time, we provide professional workers you can consult any service of the paper machine.
Export standard wooden case or iron case, depended on specific conditions.
We, Shandong Zhangqiu Daxing Paper-making Machinery Co., Ltd, are manufacturer of paper machine rolls. Our main products include: press roll, guide roll, couch roll, spreader roll, spool roll, suction roll, bow roll ect. The max. diameter of roller we can process is 1.8meters, the max. face length is 10meters.
We have passed the ISO9001 international quality system certification. Our products has exported to many countries, like: Czech, Spain, Russia, Turkey, Egypt, Indonesia, Thailand, India, Pakistan, Bangladesh ect.
