Help CenterThermal Receipt Printer 58mm With Auto Cutter and Wall Mount Function for Queuing System AB-PD560
Related Products
-
Pos Terminal Dual Screen or Specialty Store Cashier System ZQ-T9060D From ZonerichUS$ 1 - 1,000MOQ: 1 Set -
Android Pos Terminal for All in One Pos System ZQ-A1088US$ 1 - 1,000MOQ: 1 Set
-
2 Inch Wireless Thermal Printer for Mobile Pos System AB-320M From ZONERICHUS$ 1 - 200MOQ: 10 Pieces
-
Factory Pos Machine Price !Dual Screen Pos Terminal for Specialty Store Cashier System ZQ-T9060DUS$ 1 - 1,000MOQ: 1 Set
-
Cashier System Dual Screen Touch POS Terminal ZQ-T9060D From ZonerichUS$ 1 - 1,000MOQ: 1 Set
Quick Details
- Products Status: Stock
- Type: Thermal
- Style: Black And White
- Use: POS Receipt
- Interface Type: USB and RS232
- Max Paper Size: 58mm
- Black Print Speed: 170mm/s
- Max. Resolution: 203DPI
- Brand Name: ZONERICH
- Model Number: AB-PD560
- Place of Origin: Guangdong, China (Mainland)
Packaging & Delivery
| Packaging Details: | A, 1pc in one box, 1.26kgs, 28cm*24.5cm*13cm B, 6pcs in one carton, 8.76kgs, 81cm*29cm*27.5cm |
|---|
PRODUCT NAME: Panel & Desktop Receipt Printer
MODEL#: AB-PD560
The panel desktop printer is designed to be small and in a unique way, with a selection of multiple inter faces. SDK and the expertise of the engineers have perfected the hardware solution.
HIGHLIGHTS
- They could be used as panel mounting printer and desktop receipt printer
- Small size rack mounting
- Silent printing through direct thermal printing method
- High resolution (203dpi: 8dots/mm)

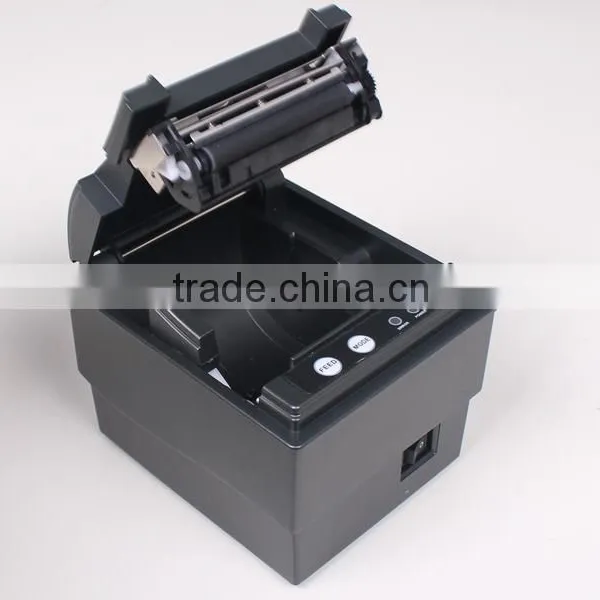

- Easy paper loading with button open cover
- Support text and graphic printing

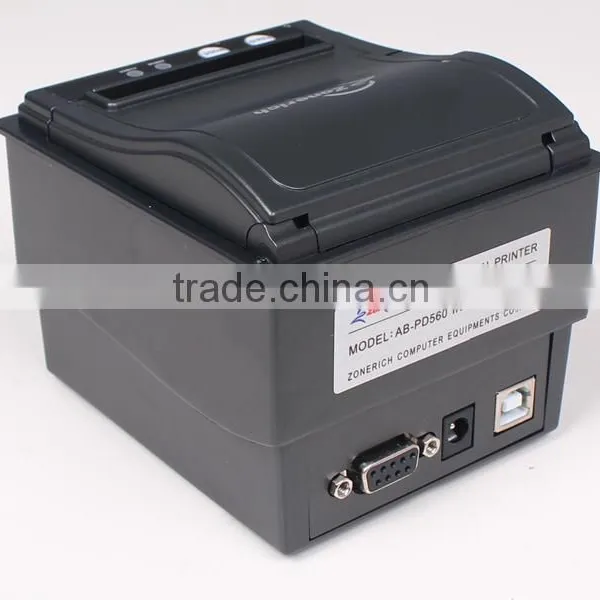

- Integrated serial and USB interface
- Auto cutter
APPICATION REFERENCE
Hospitality & Leisure: Reducing transaction time is invaluable to any business in today's hospitality
- Point of sale receipting
- Coupon printing
- Kitchen printing
- Bar receipt printing
- Mobile receipting
- Ticketing
SPECIFICATION
Printing |
Direct thermal line printing |
Characters Per Line |
32CPL |
Character Size |
12x24 |
Resolution |
203dpi(8dots/mm) |
Print Width |
48mm |
Printing Speed |
170mm/s |
Paper Roll |
Paper Type: Thermal Paper |
Paper Diameter:60mm | |
Paper Width:58mm | |
Receive Buffer Size |
4KB |
Interface |
RS232 & USB |
Input Power |
DC24V 2.0A |
Power Adaptor |
Option |
Operating Temperature |
0 C~50 C |
Storage Temperature |
-10°C~70°C |
Auto cutter |
Partial Cut/Full Cut |
MCBF |
Electric Life:100,000,000 pulses |
Wear Life |
Paper feed length Approximately 50 Km |
Dimensions (W x D x H) |
107x95x86.5mm |
Paper Supply Method |
Easy Paper Loading |
