Specifications
1. USB and parallel are available2. MTBF is over 10,000 hours
3. MAX 6 layers printing supported

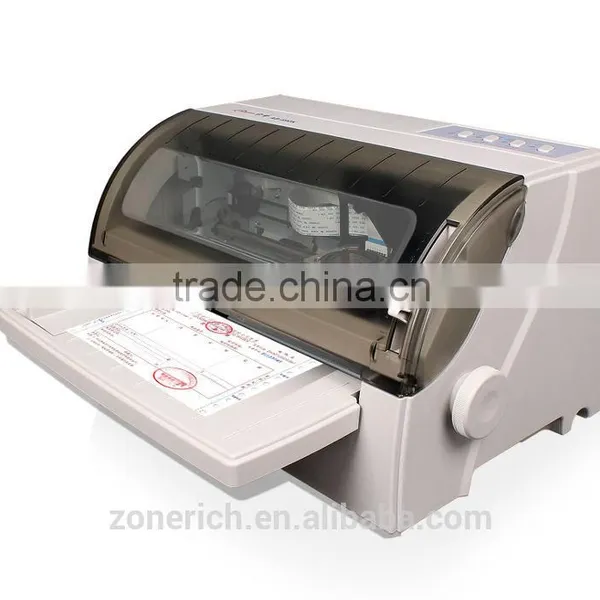

PRODUCT NAME: 80 COLUMNS IMPACT PRINTER
MODEL#: AB-690K
A reliable, easily-used, high-speed per former, fit for various size paper, 24 pin wear life is over 300 million, low cost of energy (6w when standby)
HIGHLIGHTS
- USB and parallel are available
- MTBF is over 10,000 hours
- MAX 6 layers printing supported
|
|
APPICATION REFERENCE
-Retail
-Public service
-Logistics- shipping bill
-Invoice printing
-Telecom center-receipt printing
SPECIFICATION
Printing Method |
24-pin, impact dot matrix |
Printing Direction |
Optional bidirectional and unidirectional |
Printer Language |
ESC/P |
Print Speed |
Ultra Speed Draft: 225 cps (10 cpi); 270cps (12 cpi) High Speed Draft: 150 cps (10 cpi); 180cps (12 cpi) Draft: 75 cps (10 cpi); 90 cps (12 cpi) |
Font |
Chinese: 24x24 English: Roman OCR-A, COR-B |
Paper |
Paper form: One copy, Continuous multipart Width: One copy 70-34mm, Continuous multipart 65-335mm Paper thickness: Max: 0.45mm |
Copying Capacity |
1+5 |
Interface |
USB, parallel |
Drivers |
Windows XP and 7 |
Sound Level |
55 dB(A)(ISO7779 pattern) |
Power Cost |
Standby 6W, Ultra speed 100W, Self-test 46W |
Power Supply |
AC100V-220V 50/60Hz |
Wear Life |
Printing head: 24-pin, 300 million Ribbon life: over 3 million character MTBF: OVER 100,000 hours |
Ribbon Model |
NX-500 |
Dimension |
360mmx260mmx205mm |
Weight |
Approx. 6 kgs |
