Specifications
paper machine press roll1:Diameter 500-2000mm
2:Face length 1000-8000mm
3:Covered with rubber
paper machine press roll
1:The press roll that used in the paper machine press section.
2:The roll have a good dehydration effect.
3:The press roll that have the blind hole type ,groove type ,and smooth type.
|
Blind hole press roll
|
Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
|
|
Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A". | |
The dynamic balance grade:G2.5 | |
Blind hole:dia 3mm, deep 12mm and 9mm ,arranged alternately . | |
|

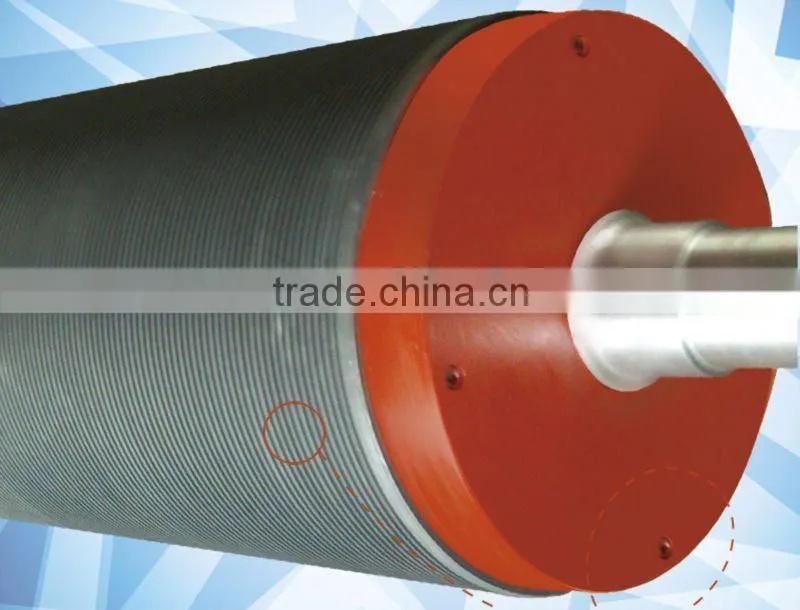

Grooved press roll |
Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
|
|
Roll surface cover with rubber. Rubber thickness 20-25mm. Rubber hardness is 92-96shore "A". | |
The dynamic balance grade:G2.5 | |
|

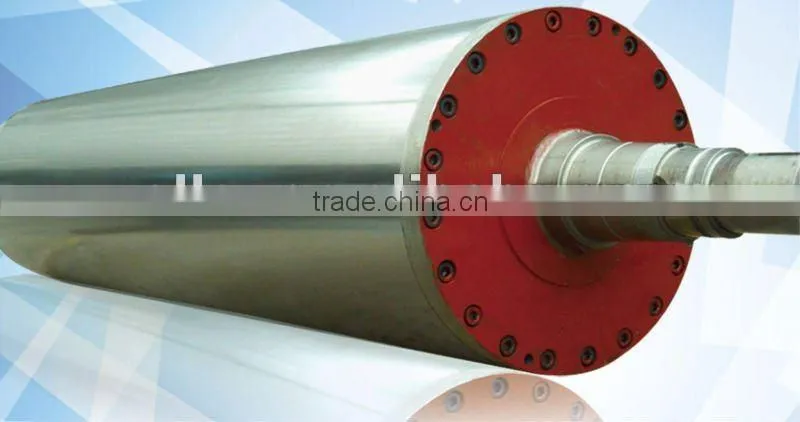

Smooth press roll |
Roll body material:alloy cast iron (HT300) Cast steel shaft or forging shaft
|
The dynamic balance grade:G2.5 | |
Roll surface will be grinding by precision grinding machine |
