Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Vertical Cnc Milling Machine XK716

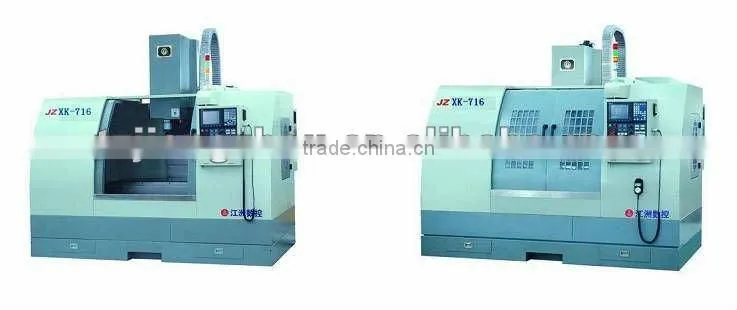

Vertical Cnc Milling Machine XK716
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
XK716
Type
Universal
CNC or Not
CNC
Specifications
CNC Milling Machine XK716Taiwan spindle
3 axis linkage
high rigidity and precision,low noise,easy operate
TM/ISO9001:2008
| Items/Types | XK716 |
| Worktable Size | 600×1300mm |
| Worktable T-grooves | 5-18 |
| Travel(X,Y,Z) | 1000×600×600mm |
| Distance between Spindle&Worktable | 180-780mm |
| Distance between Spindle Center&Z-axis Guidewheel Surface | 600mm |
| Taper of Spindle | BT40 |
| Max. PRM of Spindle | 6000rpm |
| Motor Power of Spindle | 9/11kW |
| Feeding Rate(related to control system) | 1-5000mm/min |
| Positioning Accuracy | ±0.01mm |
| Repeated Positioning Accuracy | ±0.005mm |
| Machine Weight | 7000kg |
| Overall Dimensions | 3400×2250×2800mm |
| Worktable Loading Capacity | 800kg |
The CNC milling machine has the following advantages:
good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
It can automatically mill planes, grooves, inclined planes and various complex curved surfaces and drilling, reaming, etc.
The machine tool has a large range of applications, wide applicability and superior performance.
It is especially suitable for mold processing.

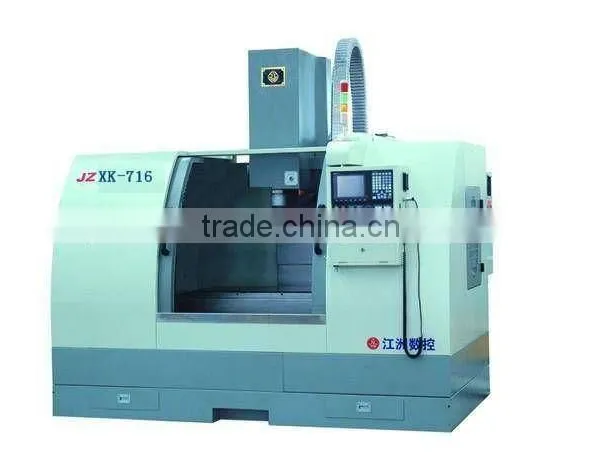

XK716 CNC Milling Machine
