Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > XK719 CNC Milling Machine

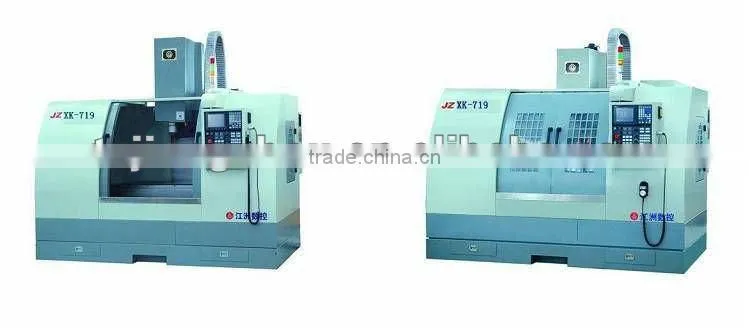

XK719 CNC Milling Machine
US$ 82,000 - 87,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
JZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Jiangsu, China
Brand Name
JZ
Model Number
XK719
Type
Universal
CNC or Not
CNC
Power(W)
15KW
Dimension(L*W*H)
cnc milling machine:4450*2400*3200
Weight
1600kg
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
XK719 CNC Milling Machine
| Main technology data | |
| Worktable Size | 900×2000mm |
| Worktable T-grooves | 5-22 |
| Travel(X,Y,Z) | 1800×900×800mm |
| Distance between Spindle&Worktable | 160-960mm |
| Distance between Spindle Center&Z-axis Guidewheel Surface | 950mm |
| Taper of Spindle | BT50 |
| Max. PRM of Spindle | 6000rpm |
| Motor Power of Spindle | 15kW |
| Feeding Rate(related to control system) | 1-5000mm/min |
| Positioning Accuracy | ±0.01mm |
| Repeated Positioning Accuracy | ±0.005mm |
| Machine Weight | 14000kg |
| Overall Dimensions | 4450×2400×3200mm |
| Worktable Loading Capacity | 1600kg |
| ATC Syetem(optional) | 20/24 |
Advantages:
good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
It can automatically mill planes, grooves, inclined planes and various complex curved surfaces and drilling, reaming, etc.
The machine tool has a large range of applications, wide applicability and superior performance.
It is especially suitable for mold processing.
Packing and Delivery
Packaging details:wooden container
Delivery detail:shipped in 20-40days after payment

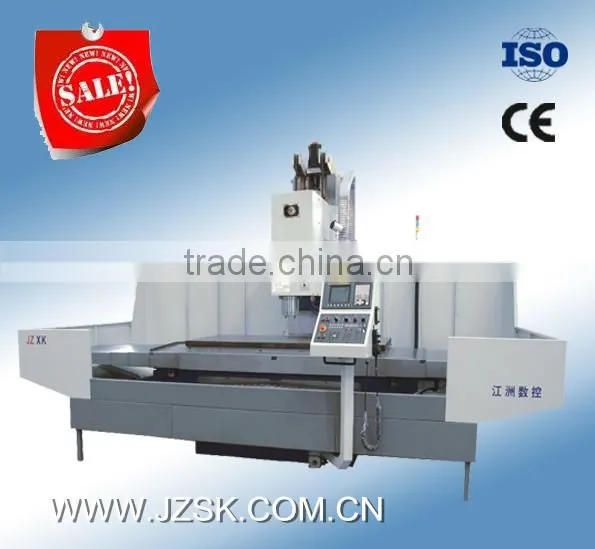

Sample picture
FAQ
| 1..Do you provide samples? |
| No |
| 2.Could your engineers go to our factory to install the machine and train our workers? |
| Yes,our engineers cuold go to your factory and assist you. |
| 3.Are you manufacturer? |
|
Yes,we are manufacturer.We have our technical team
|
