Welcome to our spring seals store!!!
PTFE&Spring Energized seal/Variseal
What is spring energized seal
The Spring energized seal is a sealing device consisting of a PTFE or other polymer, energized by a corrosion resistant metal spring. When the seal is seated in the gland, the spring is under compression applying force on the gland sealing surfaces thereby creating a tight barrier to prevent gas or fluids from leaking. The spring also provides resiliency to compensate for seal wear, gland misalignment or eccentricity. While spring force provides adequate force for sealing at low pressure, at high pressure the system pressure augments the spring force to provide an even tighter seal. The PTFE Spring energized seal are precision machined from PTFE, filled PTFE and other high performance polymers.
The different shape of spring seal/ spring energized seal
V-spring Helical Spring Slanted Coil Spring
1.V-spring seals are designed for used in high or low presseure dynamic reciprocationg or rotary applications.
2.Helical Spring seals are designed for used in static or slow, infrequent dynamic sealing application due to high compression load over a small deflection range, which make these seals suitable when low pressure or vacuum and very low temperature ( cryogenic ) are present.
3.Slanted Coil Spring Seals are for low friction, dynamic reciprocating and rotary applications. The seal produces a near flat load curve when compressed ( installed ). They provide constant predictable loads through their very wide deflection range.
Some type PTFE Spring Energized oil Seal
Type |
Use for |
Technical |
Application |
Material |
Symmetric |
standard heel groove |
temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
rod |
standard heel groove |
temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
piston |
standard heel groove |
temperacture:-40~+260 °C ,speed ≤m/s:15,pressure≤ Mpa:45 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
symetric for rod |
flanged heel groove |
temperacture:-40~+260 °C ,speed ≤m/s:2,pressure≤ Mpa:25 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
high-low lip rod |
flanged heel groove |
temperacture:-40~+260 °C ,speed ≤m/s:2,pressure≤ Mpa:25 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
inside |
face seal |
temperacture:-40~+260 °C ,speed:static or slow rotary,pressure≤ Mpa:45 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |
outside |
face seal |
temperacture:-40~+260 °C ,speed:static or slow rotary,pressure≤ Mpa:45 |
virtually all fluids,chemicals and gases |
PTFE-filled stainless steel |

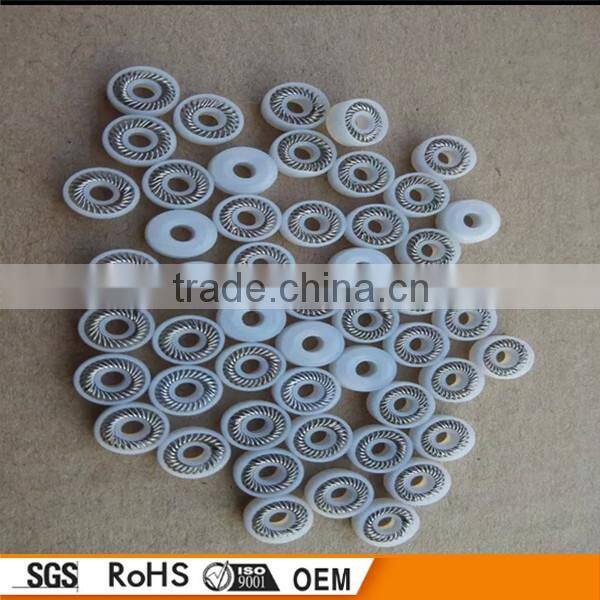

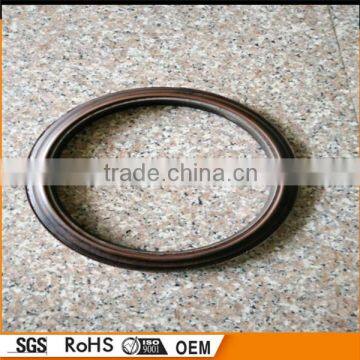

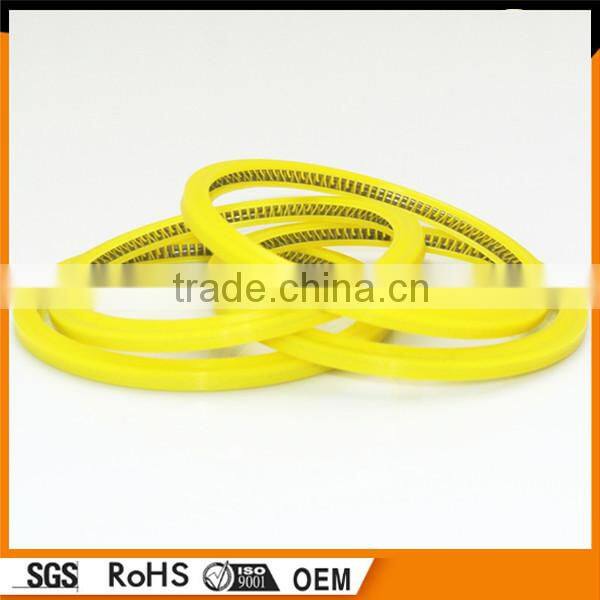

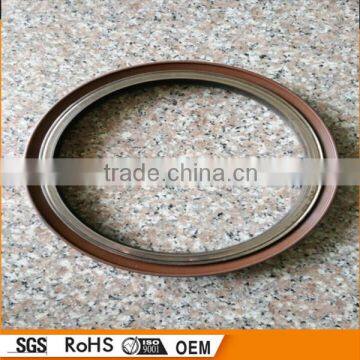

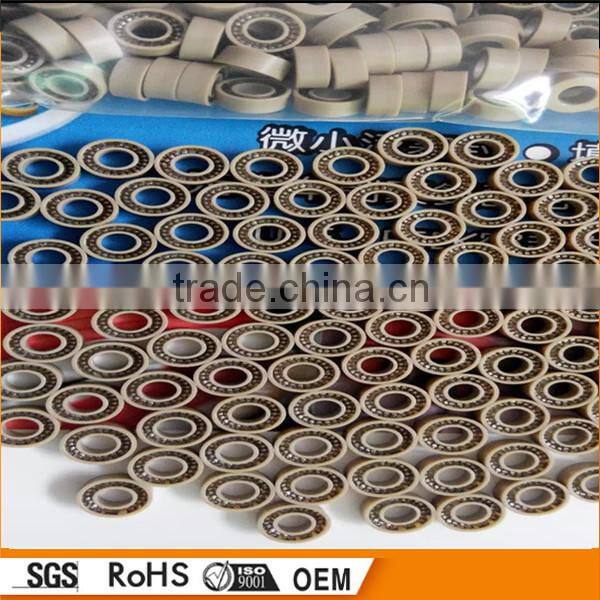

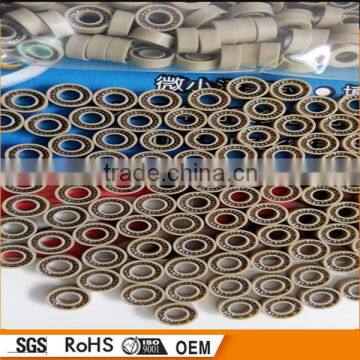

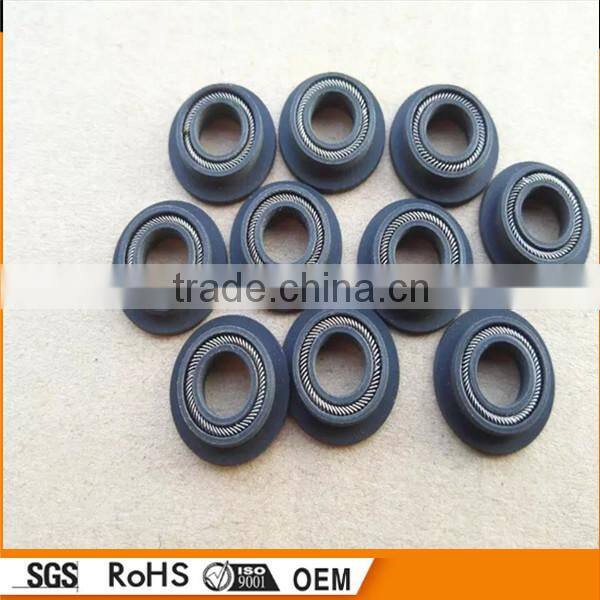

Some pictures of
PTFE&Spring Energized seal/Variseal
