Specifications
spray steel fiber1.reforcement concrete and shotcrete mixes
2.Primary Application, Shotcrete, Overlays
3.20Kgs/carton
Item Name: end hooked spray steel fiber for concrete/shotcrete
Company introduction:
Chongqing Joywell Trade Co.,Ltd is an professional foreign trade company which was founded in 1999. We are on the market of building materials more than 14 years, obtained a good feedback both in domestic and overseas. There are kinds of steel fibers: melt extract stainless steel fiber, hooked ends cold drawn steel fiber, crimped steel fiber, cutting steel fiber, cutting micro steel fiber, copper coated steel fiber etc. Should you have any interests or suggestions, pls don’t hesitate to contact us directly.
What’s steel fiber?
Steel fibres are filaments of wire, deformed and cut to lengths, for reinforcement of concrete, mortar, cement slurry and other composite materials. They have anti-crack, anti-bend, anti-wear, anti-shear, anti-twist, anti-fatigue,stretching resistance, abrasion resistance characters. Widely be used in industry, military,construction, machinery, metallurgy, petrifaction, pottery areas.
Wide range of applications:
Highway pavements/road overlays Airport runways and taxiways Bridge/tunnel/mine
Composite metal decks Equipment foundations Concrete/shotcrete
Blast resistant structures Hydrodynamic structures Railway sleeper
Industrial ground floor slabs Dam and stabilization Spray anchor
Commercial and residential slabs Shock resistance structure Cemetery/cesspool
Army construction Mix with refractory Seismic design
How to use?
1.To put steel fiber and mixing stuff into mixer to mix 30---60 seconds, the steel fiber will distribute equally in mixing stuff to avoid agglomerate.
2.Then to put sand and concrete into mixer to mix 30—60 seconds.
3.Finally to add water into the mixer to turn and mix 2-3minutes.
4.To transport them to working place.
Caution:
To minimize the risk of minor injury when handling or finishing mixes containing steel fibers, gloves should be worn. Gloves of similar quality to those normally worn by concrete placing and finishing crews are adequate. The use of gloves and eye protection during loading of steel fibers to mixer is recommended.
KE YOU steel fibers consist of hard drawn carbon steel wire that has been cut into suitable lengths for use as
integral reforcement in concrete and shotcrete mixes.Its aspect ratio request(length to diameter ratio) to minimize the quantity of fiber to be added to a concrete or shotcrete mixe to obtain the requested physical

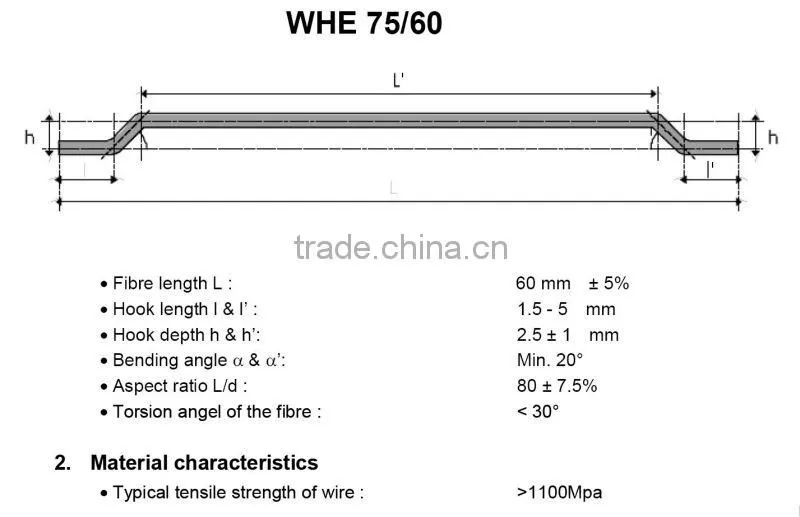

properties.They are hooked at each end to give improved mechanical anchorage of fibers which concrete or shotcrete.This provides improved impact ressistance,flectural strength relative to straight fibers.KE YOU fiber meetsZ-71.4-3,TC-07-0116-98,EN-14889-1,ASTM A820 and China's YB/T151-1999 standard.
Features:
1. Loose,not collated fibers are avaible for use in dry process shotcrete mixes.
2.KEYOU provides unrivaled bonding capacity in a wide range of concrete and shotcrete applications
while reducing the time and material costs associated with traditional rebar and wire mesh reinfor-cement.
Primary Application
l Commercial and Industrial Slab On Ground
l Shotcrete
l Composite Metal Decks
l Overlays
l Airport Runways and Taxiways
l Hydrodynamic Structures
l Equipment Foundations
l Precast
l Blast Resistant Structures
l Joint Free Design
Technical Parameter
| Model No. | Length(mm) L | Diameter (mm) D | Aspect Ratio L/D | Tensile Strength (MPa) |
| KEYOU0525 | 25 | 0.5 | 50 | ≥1000 |
| KEYOU0530 | 30 | 0.5 | 60 | ≥1000 |
| KEYOU0535 | 35 | 0.5 | 70 | ≥1000 |
| KEYOU0625 | 25 | 0.6 | 42 | ≥1000 |
| KEYOU0630 | 30 | 0.6 | 50 | ≥1000 |
| KEYOU0635 | 35 | 0.6 | 58 | ≥1000 |
| KEYOU07530 | 30 | 0.75 | 40 | ≥1000 |
| KEYOU07535 | 35 | 0.75 | 47 | ≥1000 |
| KEYOU07560 | 60 | 0.75 | 80 | ≥1000 |
| KEYOU0830 | 30 | 0.8 | 38 | ≥1000 |
| KEYOU0835 | 35 | 0.8 | 44 | ≥1000 |
| KEYOU0860 | 60 | 0.8 | 75 | ≥1000 |
| KEYOU0950 | 50 | 0.9 | 56 | ≥1000 |
| KEYOU0960 | 60 | 0.9 | 67 | ≥1000 |
| KEYOU1050 | 50 | 1 | 50 | ≥1000 |
| KEYOU1060 | 60 | 1 | 60 | ≥1000 |
| Other size | To produce as customer's request |
The measurement devices:

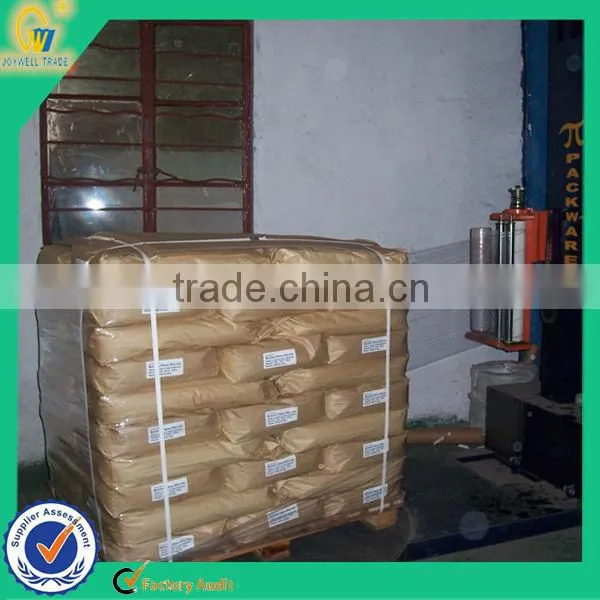

Packing:
Our convincing certificates:
