1.Main Function:

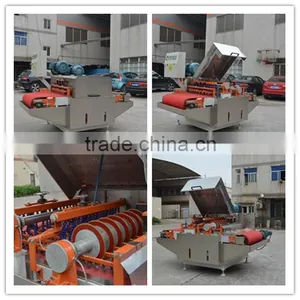

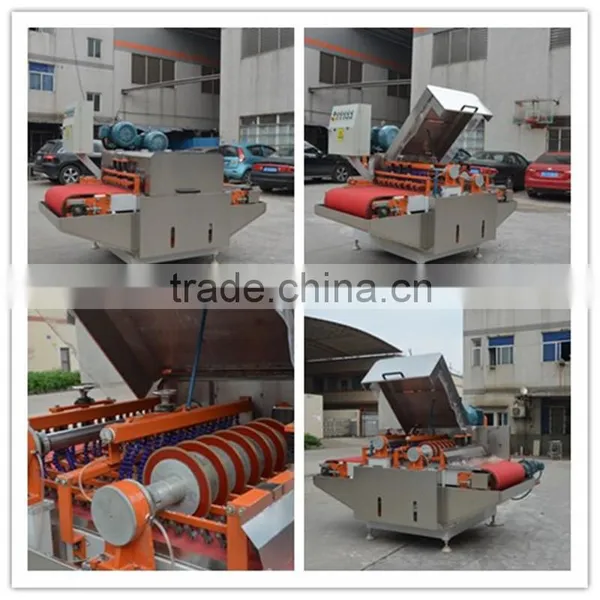

YJ-1/800 Spindle ceramic mosaic tile cutting machineis applied to cut large tiles(max Workable sizes is width 800mm/600mm) into strips, square,diamond,narrow and so on. Can process Large tiles of different size at one time.
The advantage of mosaic cutting machine is that can pre-cutting equipment required assure this machine high accuracy, Low broken and increase in productivity. Large tiles of different size can be cut into strips and mosaic continuously without doing any adjustment.

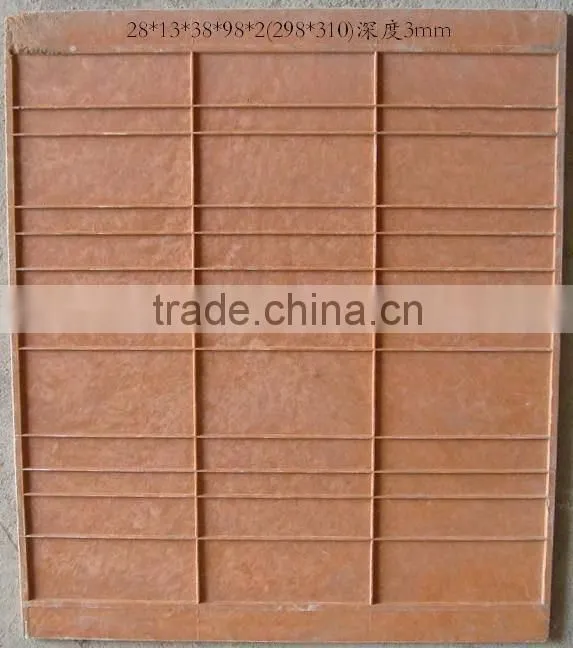

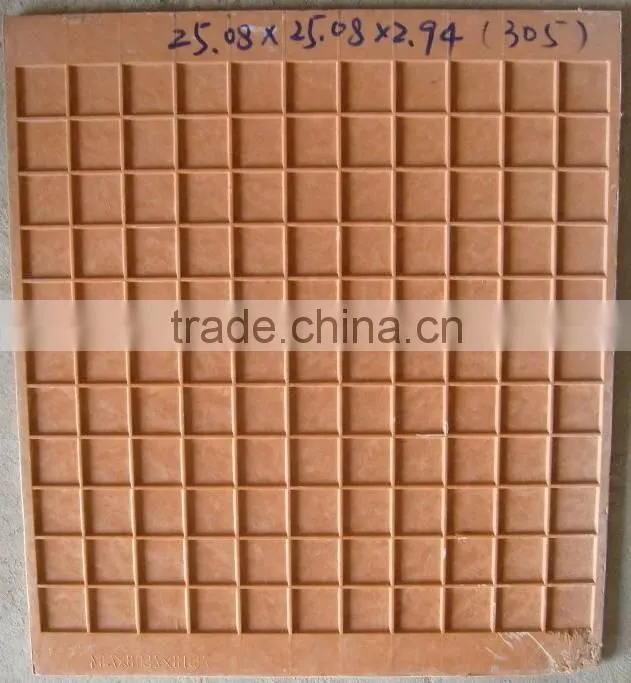

Mosaic Template

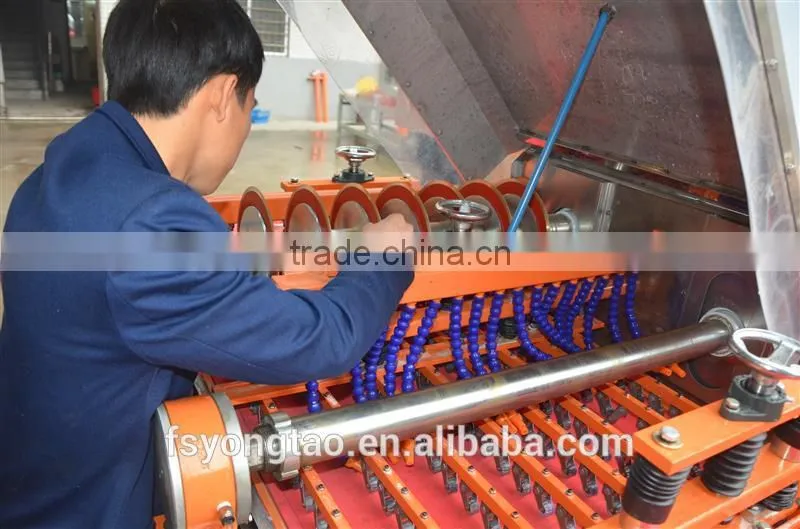

2.Working Principal:

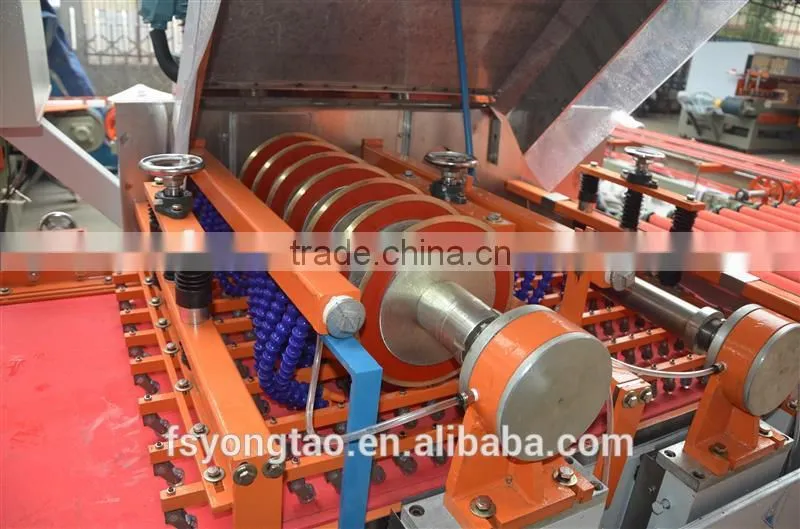

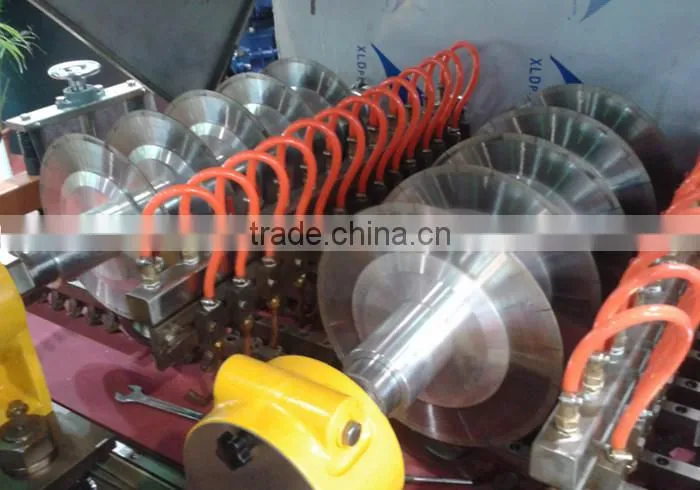

For Splitting
a/ 1-12 saw blades installed on the first spindle do thepre-cutting (optional)
b/ The same number of saw blades installed on the second spindle do thesplitting
For Slotting
Resin slotting wheel installed on the spindle do the slotting.
3.Main Advantages of Mosaic Cutting Machine:
1. Dovetail-groove lifting guide, double bridge structure and all steel machine frame make the machine work stably and dualby
2. Well-known brand electric motor and bearing produce high performance.
3. Twice cutting can assure high speed and less edge-crack
4. V-guide of the conveyor belt keeps the belt running with high precision.
5. Spindle bearing block cooled by water-cooling equipment assures long time continuous cutting without being overheated.
4.Technical Parameters:
Model |
Spindle Number |
Width of Conveyor |
Dia of Saw Blade |
Power of Spindle Motor |
YJ-2-600 |
2 |
620mm |
Φ250/Φ300 |
15KW |
YJ-2-800 |
2 |
820mm |
Φ250/Φ300 |
15KW |
Model |
Power of Conveyor Motor |
Conveyor speed |
Power of Lifting Motor |
Workable Width |
YJ-2/600 |
1.1KW |
0.8-4.0m/min |
0.75KW |
20-600mm |
YJ-2-800 |
1.1KW |
0.8-4.0m/min |
0.75KW |
20-800mm |
Model |
Max Workable Thickness |
Total Power |
Machine Size |
Weight |
YJ-2-600 |
20mm |
32.6KW |
2500*1580*1630 |
2000KG |
YJ-2-800 |
20mm |
32.6KW |
2500*1780*1630 |
2200KG |
Intensive Packaging:
Reinforced wooden crate.The important parts will be packed with waterproof packing.
Fast and Timely Delivery:
The machine will be available for shipping in 5 days after 30% deposit.
You can choose ocean freight, air freight,express according to your requirement.
Optional Departure Port:
Foshan Port, Shenzhen Port, Guangzhou Port……You can select any other port in China suitable for you.
Warranty Period: 6 months
Within warranty period, free parts and engineers available for service oversea.
Out of warranty period, parts and technical service are still available.
YONGTAO MACHINERY is born for technolgy! We aim at providing our customers with a complete solution for ceramic and stone further processing in the architectural decoration profession.
YONGTAO company was established in 2010 by the most experienced and skillfull machinery experts. Over the years, YONGTAO has become top brand in the stone and ceramic further processing profession. Now YONGTAO has captured the most in the related market.The key of success can be: top quality, reasonalbe price, and attentive after-sale service
By far there are almost 100 staff in our company, including 8 person technical research team and 30 after-sales service team available to oversea service
Due to the continuous great efforts we make to provide consumers with sactifactory machines and best service, YONGTAO company was rewarded"Quality Trustworthy Organization", "Top 10 Brand in Stone and Ceramic Further Processing Machinery", by the govenment.
The Motto of YONGTAO: "YOU THINK, WE MAKE"
Any time If you have any questions, please contact Mr. Beck .
Beck Ou
Sales Engineer Of YONGTAO
Mob/Whatsapp: +0086-18665475301 Tel: 0086-757-63297366 Fax: 0086-757-86442586
Wechat: beckyongtao QQ:3424458200 Skype: Beck.YongTao
Download YONGTAO website for more information:
WWW.GDYONGTAO.COM / FSYONGTAO.EN.china.cn
