GPS Tracker Original Manufacturer -GVT369
APPLICATIONS |
ADVANTAGES |
1.Vehicle GPS location tracking
2.Two-way voice communication
3.Car engine control
4.Overspeed alarm & Geo-fence alarm
5.Fuel level detection
FUNCTIONS |
1.SMS/GPRS(TCP/UDP) communication |
11.Hit alarm |
2.Track on demand |
12.Build-in 4M data Logger |
3.Track by time interval |
13.Voice surveillance (optional) |
4.Power saving mode |
14.Two-way voice communication (optional) |
5.SOS button for immediate rescue and alarm |
15.4 digital outputs, 4 digital inputs and 3 analog inputs |
6.Geo-fence alarm |
16.Ignition detection |
7.Speed limit alarm |
17.Oil detection (optional) |
8.Vibration alarm |
18.Remote oil/power cut-off (optional) |
9.Low battery alarm |
19.Power cut-off alarm |
10.No GPS signal alarm |
20.3G-sensor |
SPECIFICATIONS |
Items |
Specification |
Power Supply |
DC 7-36V/3A |
Backup Battery |
Rechargeable 1200 mAh battery (3.7V), |
Normal Power Consumption |
50mA/h |
Dimension |
124mm X 66mm X 27mm |
Weight |
210g |
Operating Temperature |
-20°C to 55°C |
Humidity |
5% to 95% Non-condensing |
GSM Module |
Quad Band GSM 850/900/1800/1900Mhz |
GPS Chipset |
Latest GPS chipset |
GPS Sensitivity |
-159 dB |
Position Accuracy |
< 15 M 2D RMS |
Velocity Accuracy |
0.1 M/S |
Time Accuracy |
1 us synchronized to GPS time |
Hot Start |
1 sec., average |
Warm Start |
35 sec., average |
Cold Start |
37 sec., average |
Altitude Limit |
18,000 meters (60,000 feet) max. |
Velocity Limit |
514 meters/second (1000 knots) max. |
Acceleration Limit |
Less than 4g |
Work Time using backup battery |
12 hours in normal mode and 55 hours in power-saving mode |
Memory |
32M-BIT flash memory |
LED |
3 LED lights to show power, GPS, GSM and other status. |
Button |
one SOS button for making phone calls and sending SMS |
Interface |
4 digital outputs; 4 digital inputs; 3 analog inputs. |

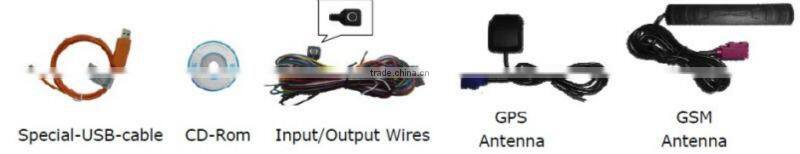

ACCESSORIES |
OPPTIONAL ACCESSORIES |
Relay (optional)
Oil sensor (optional)
DETAILS |

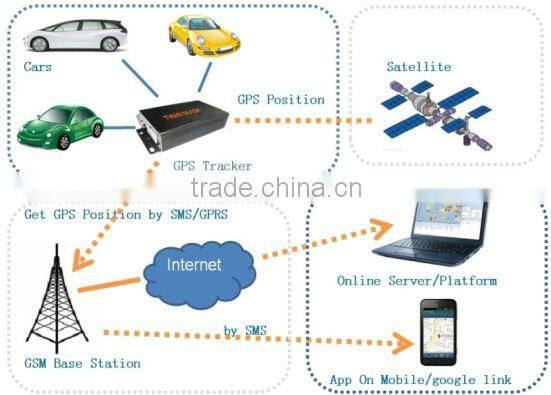

Working Conception

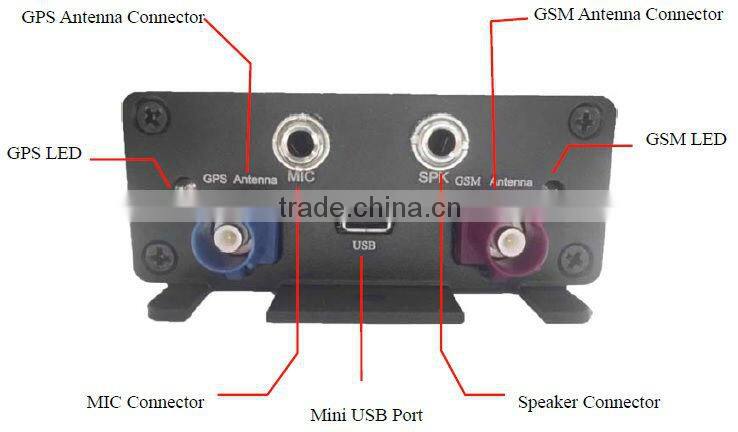

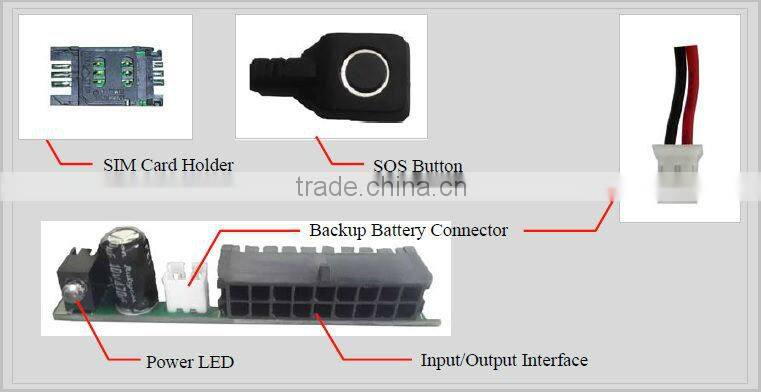

Function Parts and Interfaces

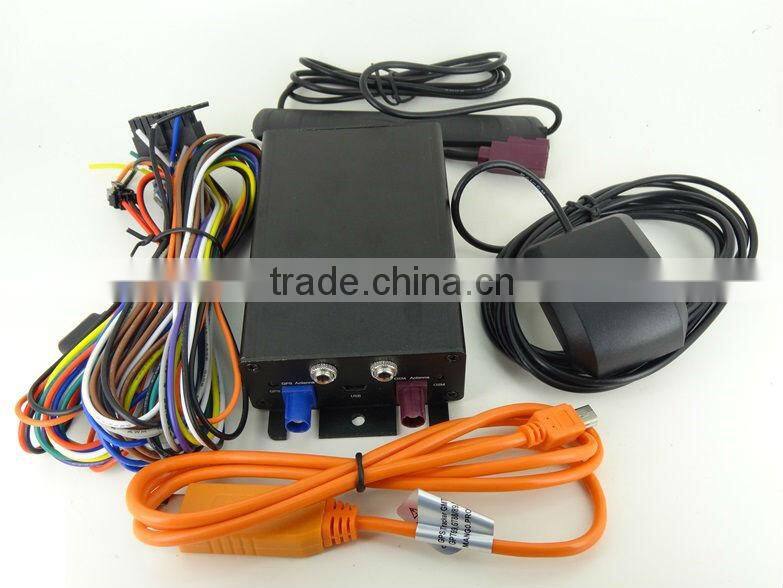

Whole Package

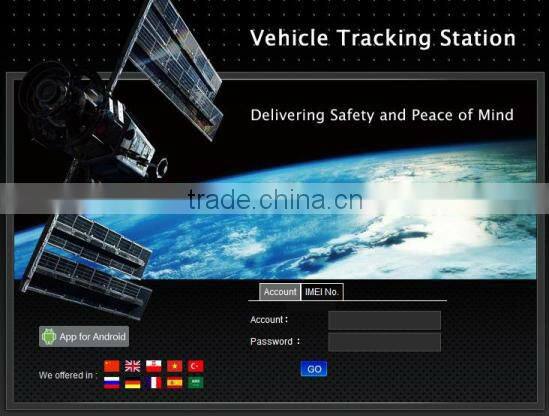

GPS TRACKING SYSTEM |

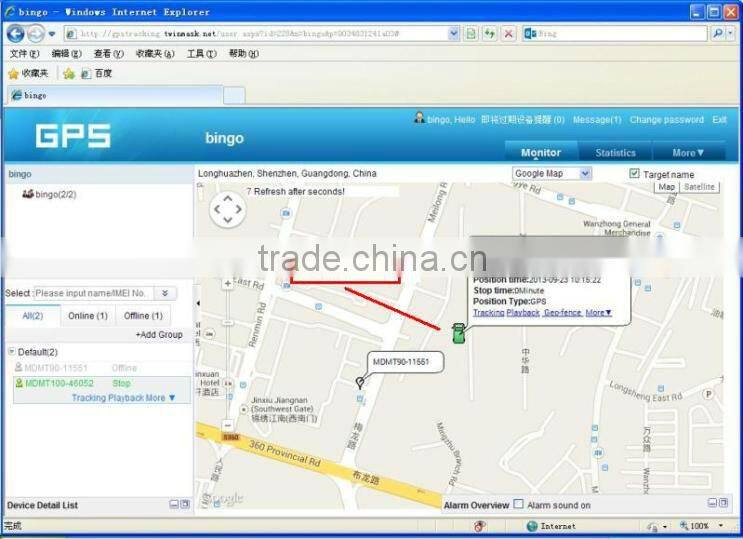

1.real-time display GPS tracker position in online system
2.real-time display GPS tracker position in APP in iphone / android mobile
3.get GPS tracker postion by SMS

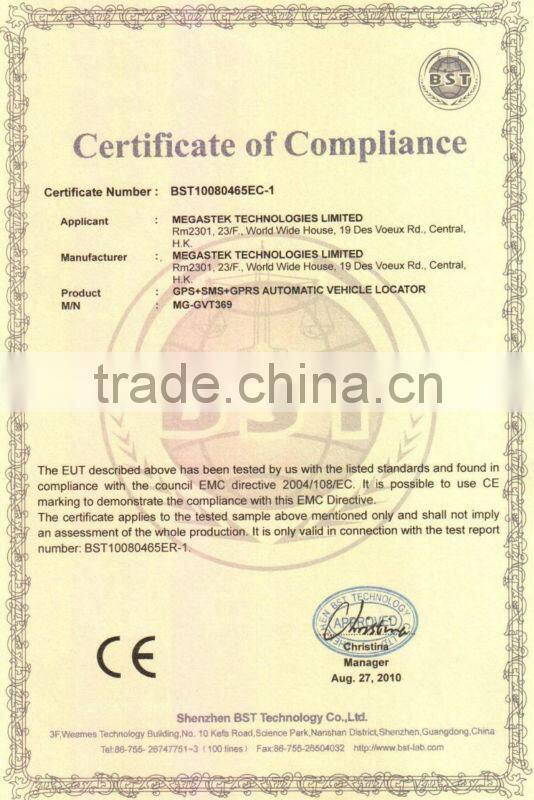

CERTIFICATE |
OUR SERVICE |
1.Reply inquiries in 24 hours
2.Provide complete GPS tracking solutions for customers
3.OEM/ODM
4.Online technical support
5.Warrant 1 year

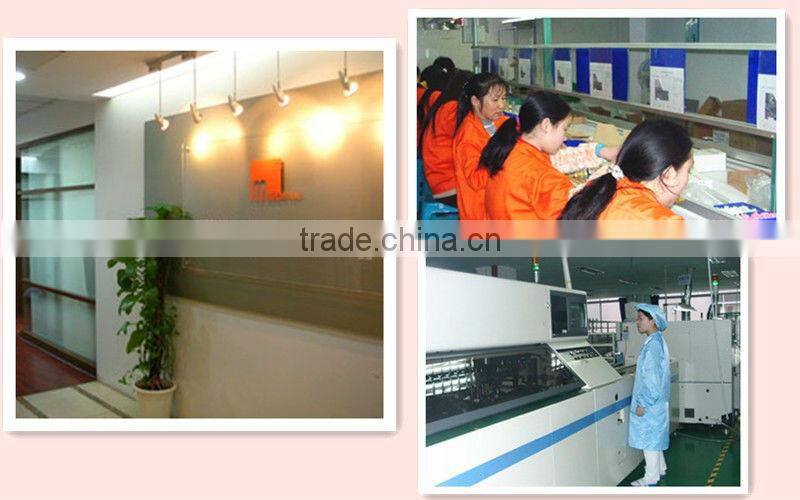

OUR FACTORY |
