Help CenterSK902IE Pir Sensor Switch,automatic Turn off Light Sensor Switch
Related Products
-
SK902IE Pir Sensor Switch,Light Sensor PriceUS$ 5 - 12MOQ: 500 Pieces -
SK903A PIR Motion Sensor Wall Switch, Motion Sensor Light SwitchUS$ 4 - 9MOQ: 500 Pieces
-
Ceiling Pir Motion Sensor Switch With Remote Control SK806RF,small Pir Motion Sensor SwitchUS$ 4 - 10MOQ: 300 Pieces
-
Ceiling Pir Motion Sensor Switch With Remote Control SK806RF,types of Pir SensorUS$ 4 - 10MOQ: 300 Pieces
-
SK808 Manufacturer 85-265V /AC Pir Motion Sensor With Remote ControlUS$ 4 - 10MOQ: 1000 Pieces
Specifications
1.Dual sensor(pir + sound) switch2.ETL,C-ETL Certification
3.120-277VAC
4.Auto-on/off
5.Energy-saving
OPERATION
The SK902 uses passive infrared (PIR) detection technology to monitor a room for occupancy, any movement by a person will cause the detector to register that movement and energise the lighting. After the primary detector PIR engages then the sound detection system comes into operation to keep the status of the detector as “Occupied” even though there is no detectable movement. The lights will remain ON as long as there is a noise or an occupant moving through the sensor zones.
A OFF delay time adjustment prevents the lights from switching OFF when the space is occupied. In order to keep the lights ON, noise must be generated, either from talking or any other activity, at least once during the selected OFF delay time interval. An LED indicator blinks to denote activity is sensed in the sensor zones. When the space being monitored by the sensor is unoccupied for the length of time chosen as the OFF delay interval, the unit will switch the lights OFF.

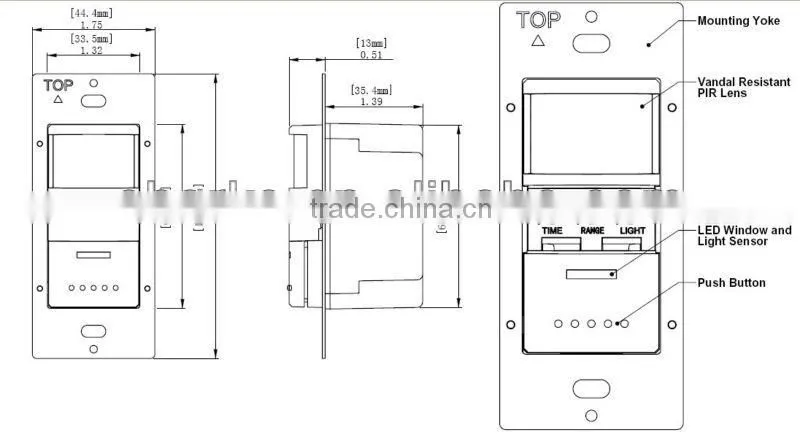

DIMENSIONAL DIAGRAMS

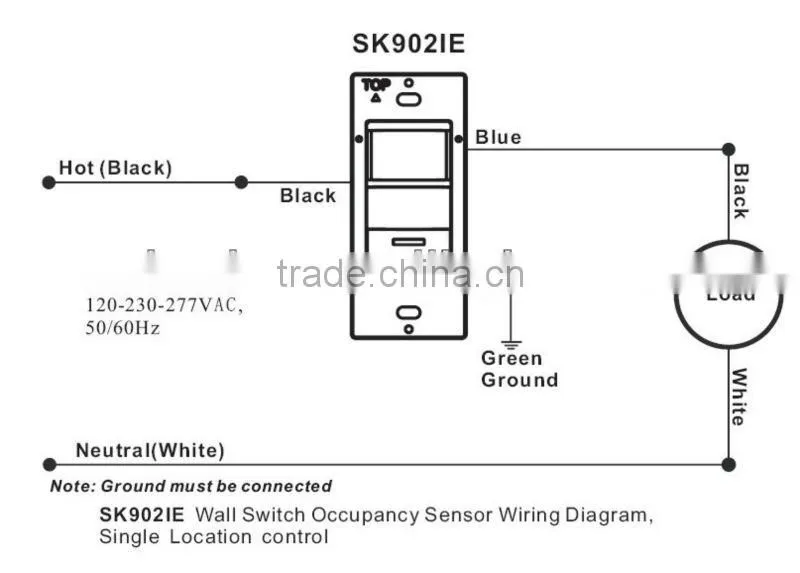

WIRE DIAGRAM
ELECTRICAL REQUIREMENTS
| line voltage | 120/277VAC 50/60HZ |
| Wire designation |
Line-Black load-Blue Ground-Green no neutral line required |
| Load Rating |
Incandescent: 800W - 6.67A @ 120V Fluorescent: 1200VA - 10A @ 120V 2700VA - 10A @ 277V Inductive Load: 1/4hp(185W) - 5.8A @ 120V |
| Dual sensor | PIR+Microphonics |
