Specifications
1.Ceiling Pir Motion Sensor with Remote Control2.Auto on/off
3.Time,lux,distance are adjustable
Introduction
The product is a new saving-energy switch, it adopts good sensitivity
detector, integrated circuit and SMT. It gathers automatism, convenient safe,
saving-energy and practical functions. Three detectors inside compose a
wide range detection field, it utilizes the infrared energy from human as
control-signal source, it can start the load at once when one enters detection
field. It can identify day and night automatically. It is easy to install and used
widely, possessing the functions of power show and detecting show.
Techinical Specifics
Power source: 220-240V/AC,50Hz
100-130V/AC,60Hz
Rated load: 1200W Max.tungsten (220-240V/AC)
300W Max.fluorescent (220-240V/AC)
600W Max.tungsten (100-130V/AC)
150W Max.fluorescent (100-130V/AC)
Time setting: 10sec~12min(adjustable)
Light-control: 10LUX~2000LUX(adjustable)

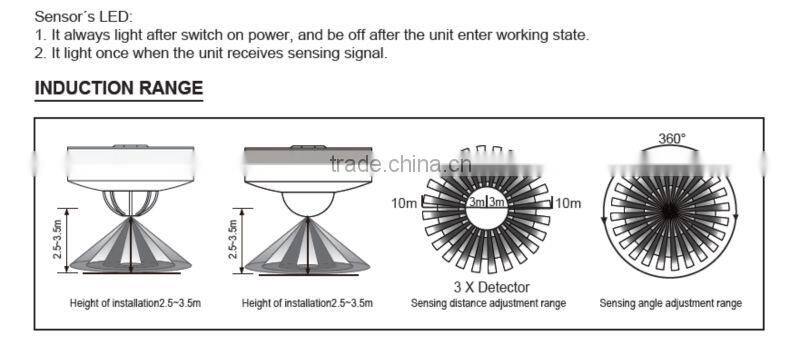

Detection range: 3-10m (radii.)(adjustable)
Detection angle: 360º (ceiling installation)
Installation height: 2.5~3.5m
Working temperature: -10°C~+40°C
Power consumption: working 0.45W(static 0.1W)
Sense motion speed: 0.6~1.5m/s
Application:

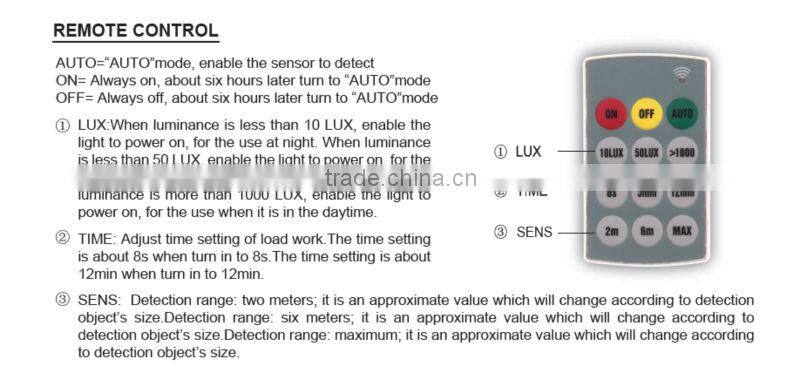

You can manually adjust the time setting, Sensitivity and light-control (For detail: see 1.knob setting); it is very easy to use.
Install Sensor at 2.5~3.5m position on the wall (For detail: see 3. installation instruction) and connect the wire according to
the 2. connection figure. Switch on power, after about 1 minute the unit enter stable working state. Here please turn TIME
knob to the position close to minimum, and turn LUX to sun for testing. If it works normally, turn the TIME knob to the
minimum” IMPULSE” position( ). When it senses again, the controlled lamp will be turned on and off regularly. If the above
tests go through, then select the time, light-control and sensitivity to your need. So its installation is ok.
We are a manufacturer which is most professional in energy savings .Especially in dimming system ,sensors ,sensor
switches,sensor lights and so on with high quality and competitive price. We also have our own R&D, and can produce
products according your special request or sample you offered.
