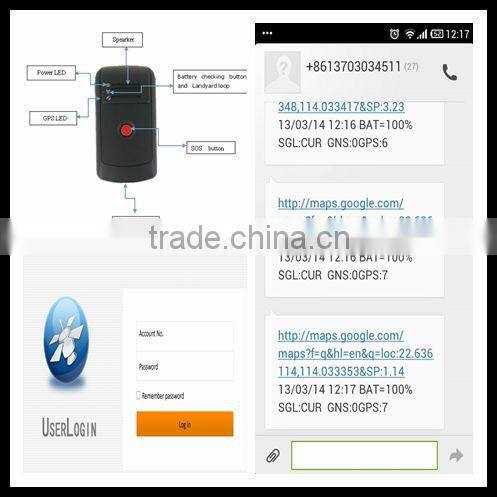

Gps Tracker Type and gsm gps gprs 2g 3g Function personal gps tracker
GPS + LBS
GPS Chipset: Ublox 6M
GSM Chipset: Simcom800L GSM 850/900/1800/1900 MHz
Support setting 3 authorized cell phone numbers
Track on Demand, time Interval,LOC request
Low power consumption – standby for 15 days.
SOS button for immediate rescue and alarm
Two-way Audio
3G acceleration sensor
Geo-fencing Alarm
Over speed limit warning
Built in Speaker and Microphone
Motion Sensor
GPS Blind Area Alarm
Background voice surveillance
Low Battery warning
Items |
Specification |
Charging Voltage |
DC 4.5-5.5V/1000mA (Mini USB) |
Internal Battery |
Rechargeable and replaceable 1000 mAh battery(3.7V), |
Dimension |
86mm X 44mm X 22mm |
Weight |
65g (with battery) |
Operating Temperature |
-20 ~ +55 °C |
Humidity |
5% to 95% Non-condensing |
GSM Module |
Quad Band GSM 850/900/1800/1900 MHz |
GPS Chipset |
Newest Ublox chipset |
GPS Sensitivity |
-159Db |
GPS Frequency |
L1, 1575.42 MHz |
C/A Code |
1.023 MHz chip rate |
Channels |
20 Channels |
Position Accuracy |
<10 M, 2D RMS |
Velocity Accuracy |
0.1 M/S |
Time Accuracy |
Satellite Time: 1 nano second |
Update Time |
Average 0.1 second |
Hot Start up |
Average 1 second |
Warm Start up |
Average 3 second |
Cold Start up |
Average 27 second |
Max. Altitude |
18,000m (Max. 60,000 ft) |
Max. Speed |
515 m/s (Max. 1000 knots). |
Max. Acceleration |
less than 4g |
Position Drifting |
20 m/sec |
Operation time |
Standby time 15 days in personal mode; 15 hours in vehicle mode. |
LED |
3 LEDs for showing states of power, GPS, GSM. |
Button |
2 buttons. 1 SOS, 1 battery check |
