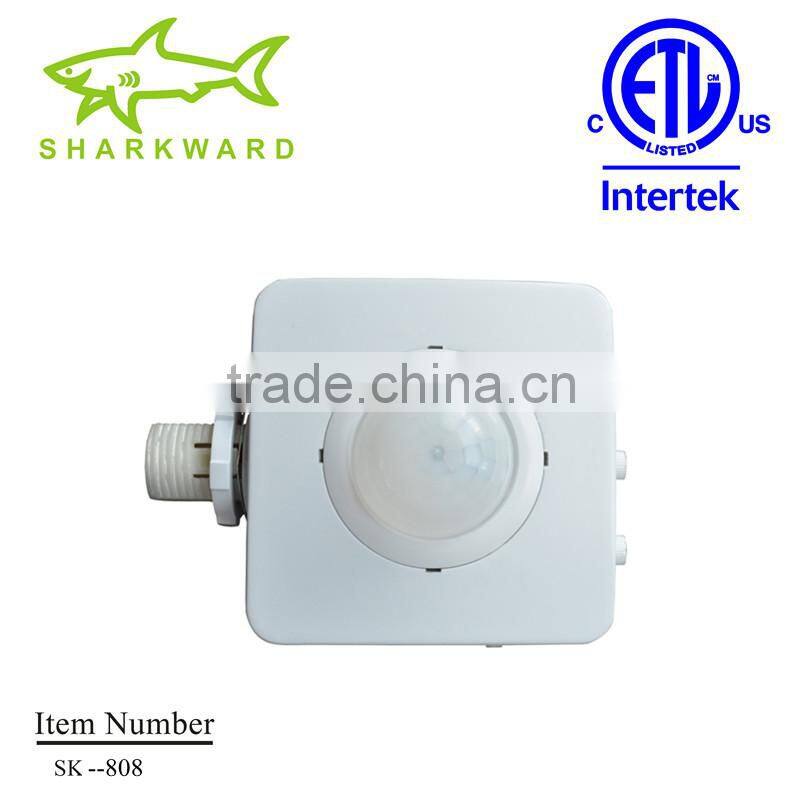

SK808 Manufacturer 85-265V /AC led pir sensor with remote control,360 pir sensor

Specifications

1.Microphonic sensor+pir sensor
2.Dual sensor switch
3.On/off automatically
4.High quality















PRODUCT INFORMATION



This product is a brand new digital energy-saving lighting switch , it adopts high sensitivity detector , MCU control, SMT; It gathers automatic, convenient, safe, energy-saving, anti-disturbance and practical functions; The wide detection range is made up of the up and down , left and right detection field ; It utilizes the infrared energy from Human Body as the control-signal source , When one enters the detection field , it will start the controlled load; It can identify day and night automatically; Its installation is convenient and its detection range is wide ; It has the functions of the power indication and the detection indication.









SPECIFICATIONS



Power source : 85-265V /AC

Power frequency : 50 /60Hz

Light-control: <50LUX (it can be customized to your needs)

Time setting:(Delay time can be set by the key or remoter)

3min 6min 9min 12min 15min 18min 21minm 24min 27 min 30min

Rated load: 2000W Max tungsten 265V AC

800W Max .fluorescent (265V /AC )

800W Max .tungsten (85V /AC)

200W Max .fluorescent (85V /AC )

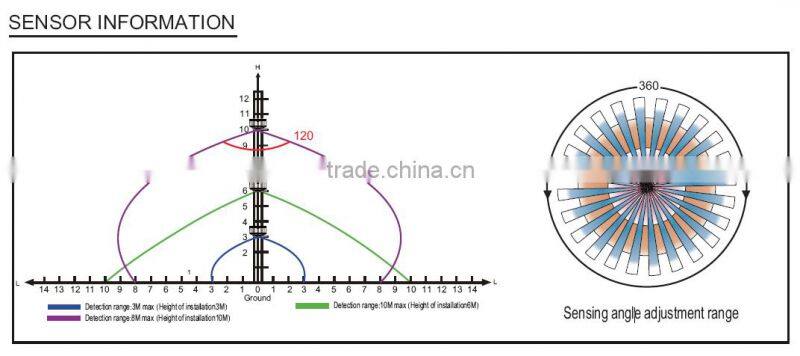

Detection range : 15m Max(wall installtion)

                                  13m Max( ceiling installtion ) 24 °C-- 26 °C

Detection angle : 360°/ 120°

Working temperature: -10~40°C

Working humidity: <93%RH

Installation height : 2-12m(ceiling installtion), 2-3m(wall installtion)

Detection motion speed : 0 .6~1 .5m /s



















We are a manufacturer which is most professional in energy savings .Especially in  dimming system ,sensors ,sensor



switches,sensor lights and so on with high quality and competitive price. We also have our own R&D, and can produce



 products according your special request or sample you offered.
