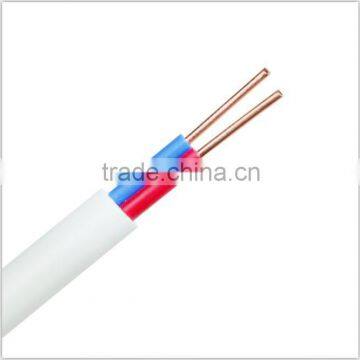

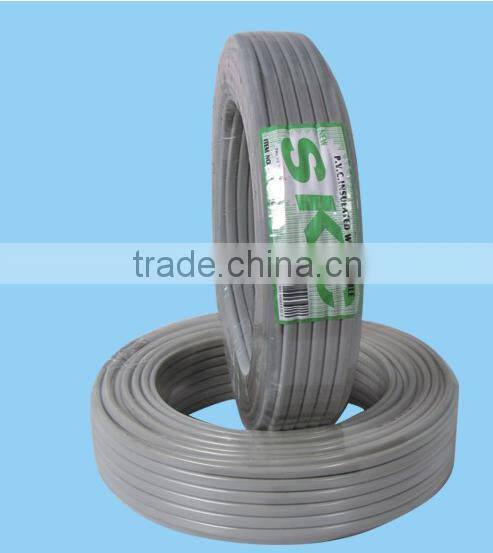

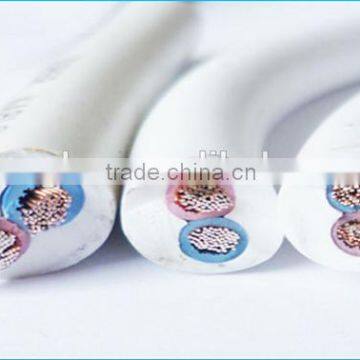

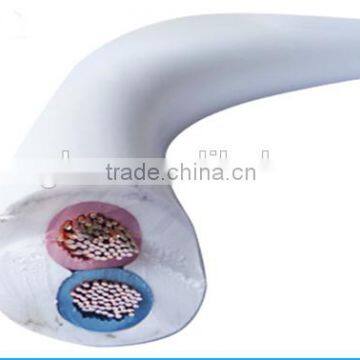

Australia export AS/NZS srandard House electrical wiring Twin and earth flat cable
Application
|
For separate earth conductors. For switchboard and control panel wiring. For fixed wiring within other enclosures or apparatus where the cable is not accessible without the use of tools. |
STANDARD |
AS/NZS 5000.1 |
VOLTAGE |
600/1000V |
|
CONDUCTOR |
Copper 1 - 240mm2 |
|
INSULATION |
PVC, V-90 See below for colour options |
|
|
MAX. OPERATING TEMP. |
90°C |
CONDUCTOR |
CURRENT RATING (a) |
ELECTRICAL CHARACTERISTICS |
||||
|
Nominal Area mm2 |
FIXED WIRING |
Maximum DC Resistance @20℃ Ω/km |
Maximum AC Resistance @90℃ Ω/km |
Equivalent Star Reactance (trefoil) Ω/km |
Single Phase Voltage Drop (trefoil) @90℃ mV/Am |
|
|
Unenclosed In Air
|
Conduit In Air
|
|||||
1 |
13 |
13 |
18.1 |
27.0 |
0.168 |
54.1 |
1.5 |
16 |
16 |
13.6 |
17.3 |
0.157 |
34.7 |
2.5 |
23 |
24 |
7.41 |
9.45 |
0.143 |
18.9 |
4 |
31 |
32 |
4.61 |
5.88 |
0.137 |
11.8 |
6 |
40 |
41 |
3.08 |
3.93 |
0.128 |
7.87 |
10 |
54 |
54 |
1.83 |
2.33 |
0.118 |
4.68 |
16 |
72 |
70 |
1.15 |
1.47 |
0.111 |
2.95 |
25 |
97 |
94 |
0.727 |
0.927 |
0.106 |
1.87 |
35 |
119 |
112 |
0.524 |
0.668 |
0.101 |
1.35 |
50 |
146 |
138 |
0.387 |
0.494 |
0.0962 |
1.01 |
70 |
184 |
170 |
0.268 |
0.342 |
0.0917 |
0.710 |
95 |
230 |
212 |
0.193 |
0.247 |
0.0904 |
0.528 |
120 |
267 |
242 |
0.153 |
0.197 |
0.0870 |
0.431 |
150 |
308 |
282 |
0.124 |
0.160 |
0.0868 |
0.365 |
185 |
358 |
320 |
0.0991 |
0.129 |
0.0862 |
0.329 |
240 |
428 |
361 |
0.0754 |
0.0991 |
0.0847 |
0.283 |
