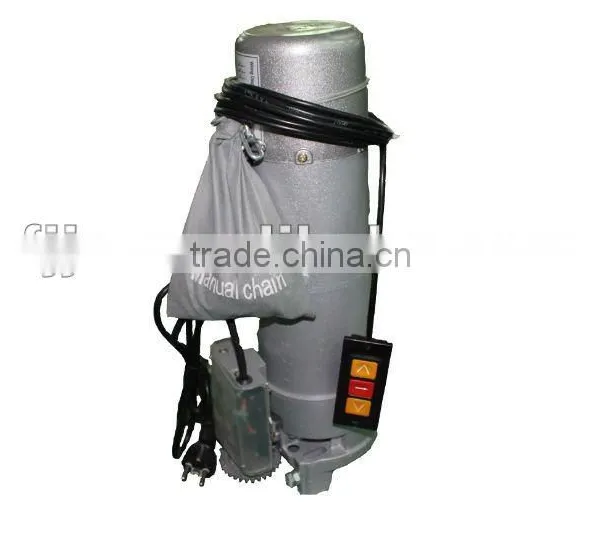

Help Center(800KG-3P) Copper Wiring Garage Rolling Door Motor
Related Products
-
(800KG) AC Rolling Shutter Motor-3PUS$ 10 - 200MOQ: 10 Sets -
Copper Wiring Roller Shutter Motor (600kg-3P)US$ 10 - 200MOQ: 5 Sets
-
Hot Sales 220v Garage Door OpenerUS$ 10 - 200MOQ: 1 Set
-
Electric Roller Shutter Motor AC 3PUS$ 10 - 200MOQ: 1 Set
-
Functional Rolling Door MotorUS$ 10 - 200MOQ: 1 Set

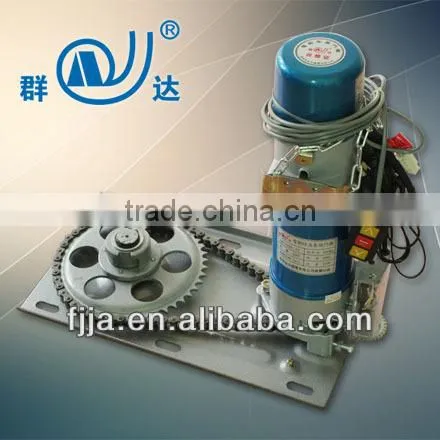

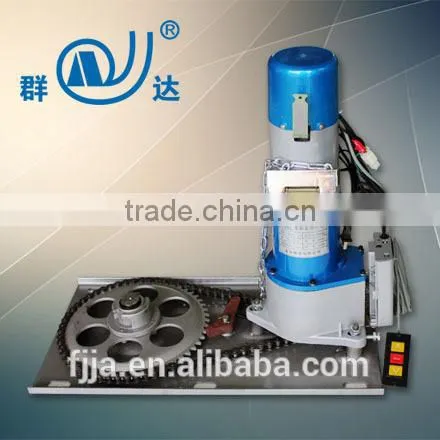

Garage Rolling Door Motors 800kg-3P:
| Model | Maximum weight doors(Kg) | Maximum lift height (M) | Power (W) | Rated current(A) | Output torque(N.m) | Big wheel rolls turn(r/min) | Chain No. | Carton Size (CM) | Accessories Carton Size (CM) |
| 380V 50HZ (380V 60HZ) | |||||||||
| 300KG-3P | 300 | 6.5 | 180 | 1.2 | 168 | 6.2 | 10A | 54*26*20.5 | 53*33*10 |
| 500KG-3P | 500 | 6.5 | 250 | 1.3 | 343 | 6.2 | 10A | 54*26*20.5 | 53*33*10 |
| 600KG-3P | 600 | 6.5 | 250 | 1.3 | 412 | 6.2 | 10A | 54*26*20.5 | 57.5*33*10 |
| 800KG-3P | 800 | 7 | 300 | 2 | 607 | 3.4 | 10A | 55.5*26.5*26.5 | 68*37*12 |
| 1000KG-3P | 1000 | 8 | 400 | 2.3 | 1102 | 6.5 | 12A | 56*27*27 | 68*37*12 |
| 1300KG-3P | 1300 | 8 | 600 | 3 | 1372 | 6.5 | 12A | 56*27*27 | 68*37*12 |
| 1500KG-3P | 1500 | 8 | 600 | 3.2 | 1610 | 5.7 | 12A | 56*27*27 | 76*36*12 |
Feature:
1) Shell: Aluminium alloy , solid and light but durable and easy to install.

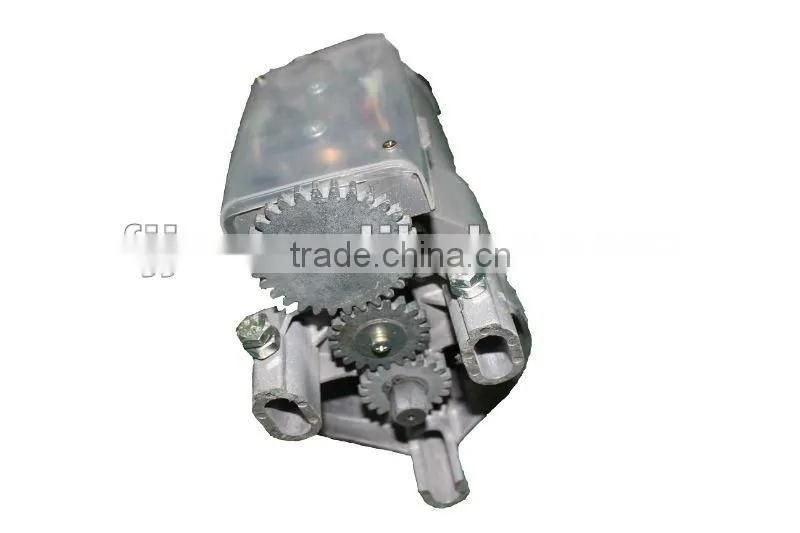

2) Gear : High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Brake structure: special device mechanical brakes, power cut off in an instant the brakes, to ensure absolute safety brake.
4) Limit System: Correct control , easy operation , and big control range.
5) Transmission System : High accuracy, smooth running , and low noise.
6) Anti-dropping device : Preventing accidental injury and ensure safety.
Specifications:
1) Relative humidity: 90% (25°C)
2) Short hour working system, continuous operation not exceeding 5 minutes with one phase and 10 minutes with three phases
3) Stylish, advanced structure and strong power
4) Imported electronic parts
5) Safe and stable
6) Little vibration and small power consumption
7) Light weight, easy to install, long operational life and reliable performance

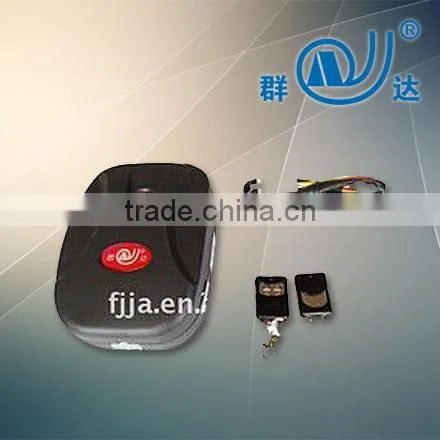

8) Remote control: long-distance operation
9) Theft proof and fire proof functions
10) Easy manual operation in case of power failure
11) The first power storage mechanism of its kind in China
12) Security mechanism in case chain is broken, (state patent)
ATTENTION: 1. THE POWER USED MUST BE ABOVED 380V.
2. THIS TYPE IS USED IN SPECIAL PLACE.
