Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > 2015 Zhejiang Donglan Telecom Project Underground Telephone Cable

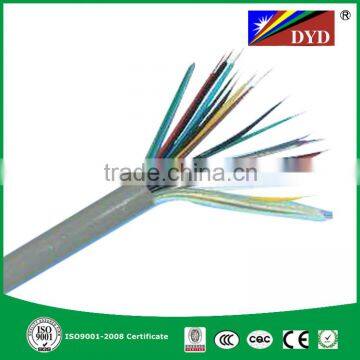

2015 Zhejiang Donglan Telecom Project Underground Telephone Cable
US$ 2.00 - 2.00
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
donglan
Model Number:
audio
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct Cat5e With PVC Material for Computer CableUS$ 2.00 - 2.00MOQ: 1000 Pieces -
Factory Price Computer Cable Cat5e Cat6 Network Cable ManufacturerUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Best Price China Guangzhou Supply 4pr 24awg Utp Cat5e Cable UTP, FTP, SFTP Cat 5e Lan/ Netwrok/ Computer CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
Blue Head High Quality VGA Cables HD15PIN VGA Computer CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
-
China Supplier Telephone And Alarm CableUS$ 2.00 - 2.00MOQ: 1000 Pieces
Place of Origin
Jiangxi, China
Brand Name
donglan
Model Number
audio
Type
Other
Application
Other
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
2015 zhejiang donglan telecom project underground telephone cable ,communication cable
- Rated temperature:60oC 75oC
- Reference standard:UL444,TIA/EIA 568A.
- Bare solid copper conductor.
- Rip cord optional
- Flammability Grade:CMX,CM,MP,CMG,CMR,MPR.UL verified to TIA/EIA 568A &ISO/IEC 11801.
| Part Number | 100P(0.4) Telephone Cable | |
| Conductor | Diameter(mm) | 0.4±0.01 |
| Material | Bare Copper | |
| Type | Solid | |
| Dielectric(Insulation) | Thickness (mm) | 0.15±0.005 |
| Diameter(mm) | 0.70±0.01 | |
| Material | Solid PE | |
| twist | (2 wire twist) | |
| Fillde | ||
| Core Wrapping | Material | Plastic tape |
| Thickness (mm) | 0.05±0.01 | |
| shield | Material | Aluminium tape |
| Thickness(mm) | 0.25 | |
| sheath | Thickness(mm) | 1.80 |
| Diameter(mm) | 18.5 | |
| Material | LDPE | |
| Loop Resistance(ohms/km ) | ≤145 | |
| Insulation Resistance(Gohms/km ) | ≥1 | |
| Mutual Capacitance (Nf/km ) | 44±5 | |
| Attenuation(dB/km) | 150KHZ | ≤12.5 |
| 1024KHZ | ≤27.0 | |
| Number of Pairs | 100 | |
| Weight (kgs/km) | 400 | |
| Drum size (mm) | 1200 | |
| package | 1km | |
