Help CenterSpecialized Anti-theft Garage Door Opener
Related Products
Specifications
Garage door opener/motor1.Aluminium alloy,100% original
2.Low noise and energy consumption
3.Certification: CE,CCC,ISO9001

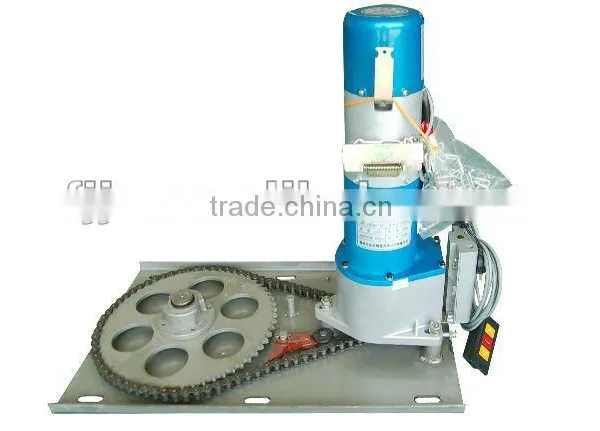

Rolling door motor/ Garage door opener JM1000-1P
| MODEL NO | Max upgrade height(M) | Max upgrade weight(Kg) | Power (W) | Current Rating (A) | Output Torque (N.m) | rotation (r/min) | CHAIN NO. |
| 220V 50HZ | |||||||
| JM300-1P | 6.5 | 300 | 250 | 3.3 | 168 | 6.2 | 10A |
| JM500-1P | 6.5 | 500 | 250 | 3.9 | 343 | 6.2 | 10A |
| JM600-1P | 6.5 | 600 | 370 | 3.9 | 412 | 6.2 | 10A |
| JM800-1P | 7 | 800 | 370 | 4.5 | 607 | 3.4 | 10A |
| JM1000-1P | 7 | 1000 | 400 | 4.5 | 1102 | 3.2 | 10A |
| 380V 50HZ | |||||||
| JM300-3P | 6.5 | 300 | 180 | 1.2 | 168 | 6.2 | 10A |
| JM500-3P | 6.5 | 500 | 250 | 1.3 | 343 | 6.2 | 10A |
| JM600-3P | 6.5 | 600 | 250 | 1.3 | 412 | 6.2 | 10A |
| JM800-3P | 7 | 800 | 300 | 2 | 607 | 3.4 | 10A |
| JM1000-3P | 8 | 1000 | 400 | 2.3 | 1102 | 6.5 | 12A |
| JM1300-3P | 8 | 1300 | 600 | 3 | 1372 | 6.5 | 12A |
| JM1500-3P | 8 | 1500 | 600 | 3.2 | 1610 | 5.7 | 12A |
| DC-AC-24V | 6.5 | 500 | 500 | 3.9 | 343 | 6.2 | 10A |
Machine characteristic of rolling door motor:
1) Shell: Aluminium alloy , solid and light but durable and easy to install.
2) Gear : High-quality alloy steel and special technical treatment to guarantee the strong hoist.
3) Limit System: Correct control , easy operation , and big control range.
4) Transmission System : High accuracy, smooth running , and low noise.
5) Anti-dropping device : Preventing accidental injury and ensure safety.
6) Quality: All of our products have the 100% test,you don't worry.
Working environment and conditions:
1. The temperature of environmentair change as season.
2. Relative humidity: 90%25.
3. Voltage and frequency is inline with the product nameplate.
4. Short hour working system,continuous operation not exceeding 5min.
Notice: Your prompt inquiry after the Above Technical Parameters will be highly appreciated.Thanks.

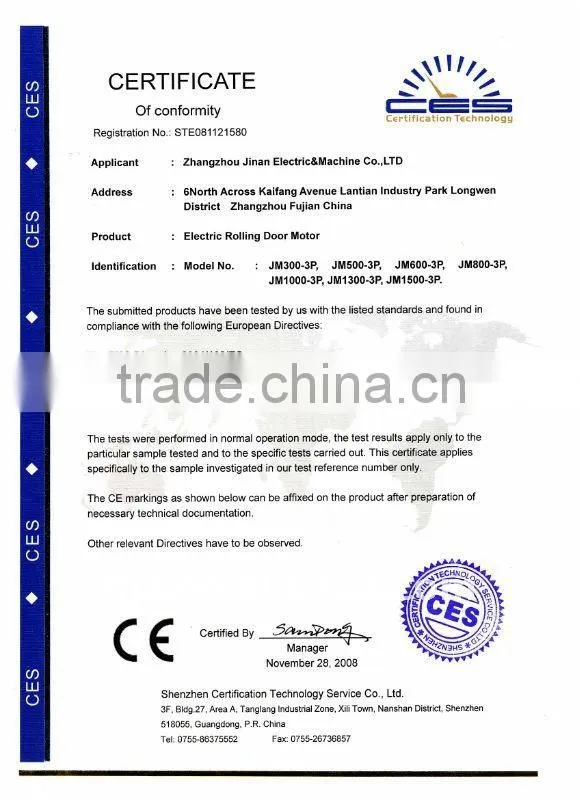

We have got the ISO9001:2000 and CCC certification.
Rolling door motor are suits for shop doors,cinema doors,garage doors and other alumium lock gates.
