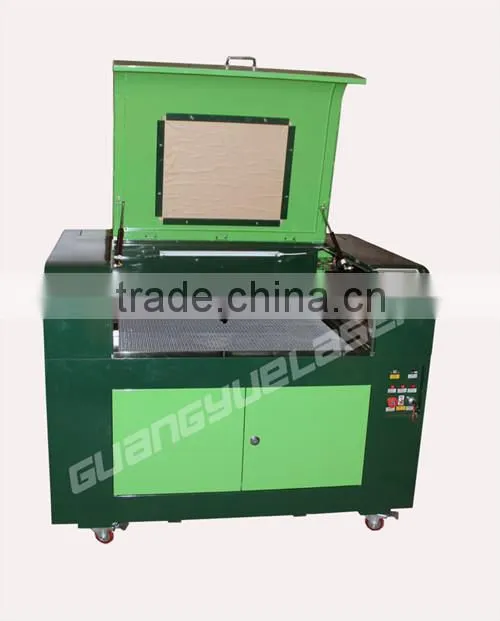

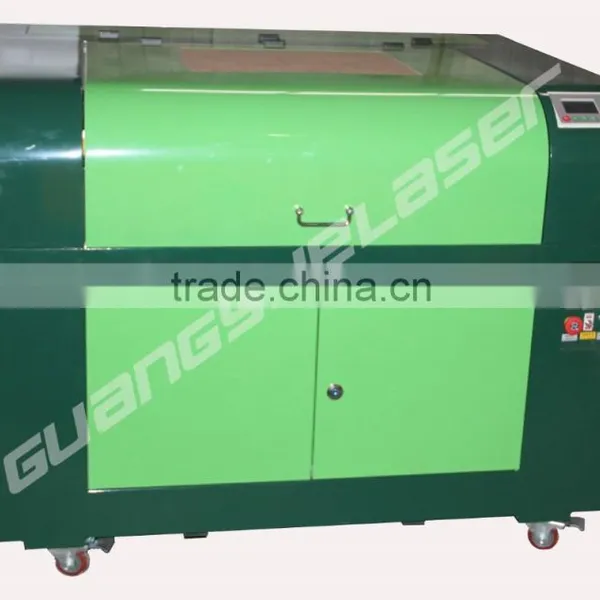

Help Center6090 Laser Cutting and Engraving Machine
Related Products
Specifications:
Model/Name |

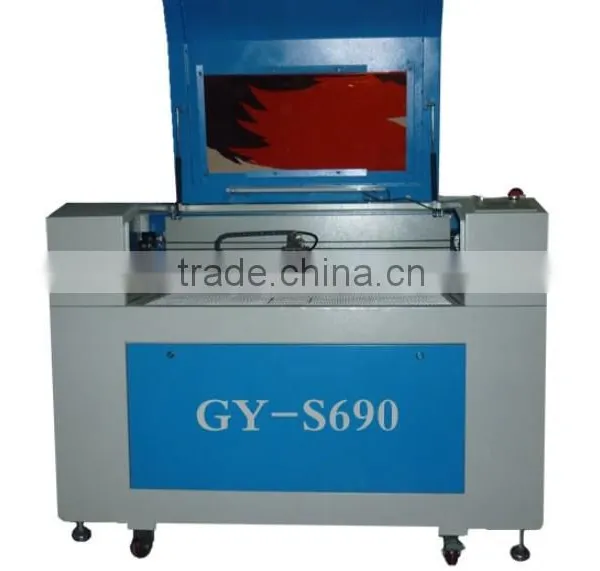

GY-690 laser engraving machine |
Working Table Size |
600 *900mm |
Laser Tube |
Sealed CO2 glass Tube |
Laser Power |
60w/80w |
Cutting Speed |
800mm/s |
Engraving Speed |
1500mm/s |
Resolution |
±0.05mm /1000DPI |
Minimum Letter |
English 1×1mm (Chinese Characters 2*2mm) |
Support Fils |
BMP,HPGL,PLT,DST,DXF,CDR and AI |
Port |
USB 2.0 Plug and play |
Software |
CorelDraw (Direct Output) |
Motor |
Stepper |
Power Voltage |
220v 110v 50HZ |
Working Environment |
0-45°C 5-95%(humidity) |
Power consumption |
<600Toal) |
Software compatible |
CorelDraw,AutoCAD,Photoshop |
Table type |
Aluminum |
Z-Axis Movement |
Automatic (0-160mm ajustable ) |
Position system |
RED dot pointer |
Power Supply |
Water-cooled system |
Cutting thickness |
20mm (upon materials type) |
Rotary device |
φ10-150×300mm |

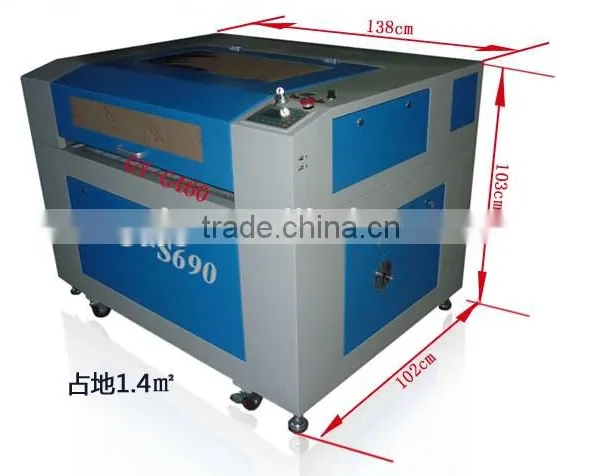

Packing-Size |
1360*1200*1200CM |
Gross Weight |
240kg |

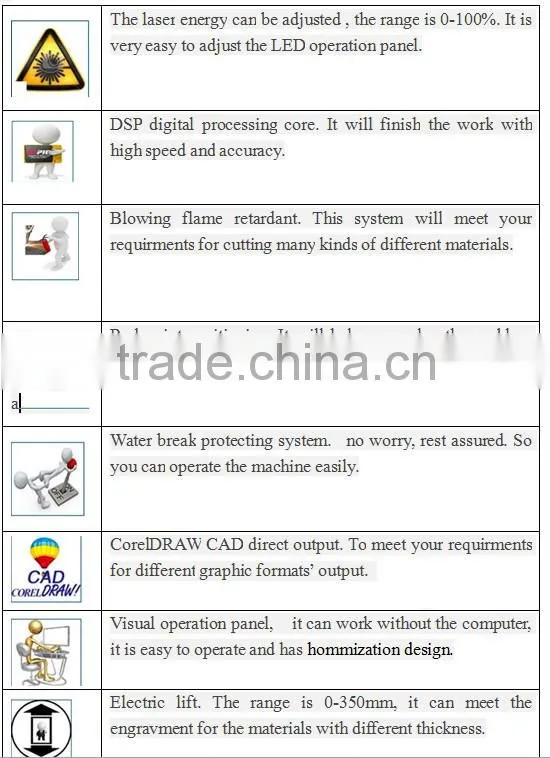

1, Imported and factory direct sale slide way. The high accuracy and speed can be guaranteed.
2, The laser lens meets the industrial standard to make sure the engraving accuracy.
3,Water shortage protect system. It provides you with the 24-hour protect when the machien works in high load.
4,human-machine operation. It can engrave and cut without the laptop.
5, Electric lift, driving synchronous motor is adopted, incline; 0-500mm.

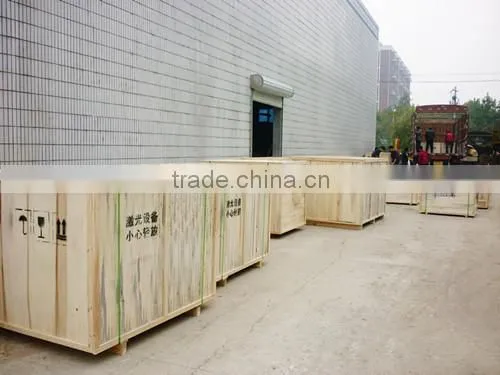

The standard wooden board with thickness 10mm,
The 10 cm thick foam board is put in. The box is fixed by STRAP.
We will try our best to reduce the risks during the shipping journey.
This machine has 1-year warranty, but the laser tube and the lens has 3-month warranty.
if you had bought the machine, it has got some problems, we could provide the service via the chat software, the telephone or even we could send our engineers to help you solve the problems.
We are the manufacturer which supplies the laser machines.
We supply laser engraving machine, laser cutting machine, laser cutting bed, handicraft carving machine and laser fiber marking machine.
We have got 10--year experience in laser equipment.
Our products have been exported to 40 countries, including USA, Russia, Thailand, South Korea, South Africa, Turkey, Angola, Pakistan, Netherland .etc.
We believe that the customers are first. And we also believe that we can provide you with the machines with good quality, resonable price and the first-class after-sale service.
welcome to visit our company
