Higher Quality Feldspar Crushing Plant

Name: Higher Quality Feldspar Crushing Plant
Brand: TENGFEI
Availability: InStock

FOB Price

US$ 50,000 - 128,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai etc
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Stone Crushing Line
Application	Crushing stone as aggregate for construction.	Motor Type	AC Motor
Power(W)	467 KW	Capacity(t/h)	550-650
Place of Origin	Henan, China	Brand Name	TENGFEI
Model Number	PF, PE, GZD, YZS	Dimension(LWH)	Refer to the technical table
Weight	Refer to the technical table	Certification	ISO, CE, SGS,
Warranty	12 months	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Feldspar Crushing Plant
1.Crush soft or medium hard stone
2.Higher Quality
3.Non-key Connection

Feldspar Crushing Plant

TENGFEI QUALITY

Product Description

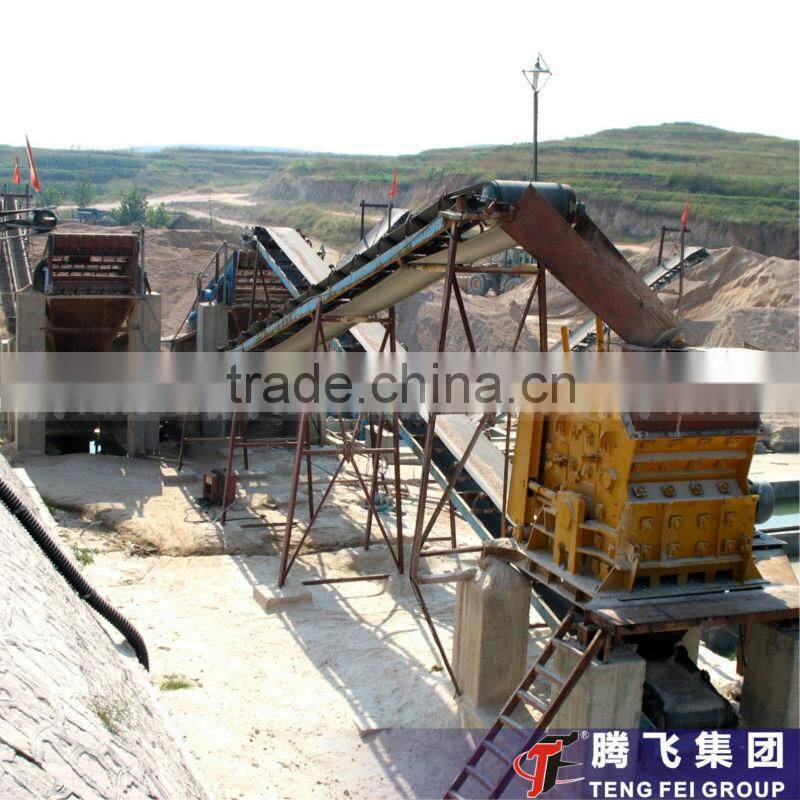

Feldspar Crushing Plant

Feldspar Crushing Plant is used to crush soft or medium hard stone (like: limestone, gypsum, marble, calcite, dolomite, etc) from <1000mm down to about 0-5, 5-10, 10-20, 20-40mm (or other sizes according to your need) as aggregate for construction.
With it, TENGFEI can provide you the well-shaped cubic final products, with low energy consumption, low cost, easy maintenance, and high efficiency. Also, with the most advance technology, automatic lubricating system and hydraulic system, the European type impact crusher will provide you the best experience.

Specification of Feldspar Crushing Plant

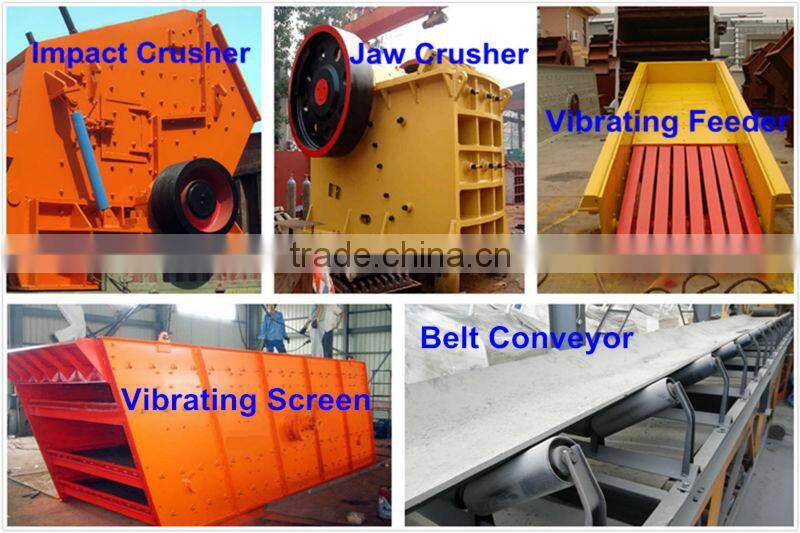

NO.	Equipment	Model	Max. Feeding Size (mm)	Motor(KW)	Number
I	Vibrating Feeder	GZD1500X6000	800	30	1
II	Jaw Crusher	PE1200×1500	1020	200	1
III	Impact Crusher	PFW1318Ⅲ	300	200	2
4	Vibrating Screen	4YZS2460	100	37	1
Belt:B500×10m, B1400×23m, B1200×26m, B800×27m, B650×15m, B650×15m, B650×15m, B650×15m

TENGFEI is going to equip you a solution as the following:

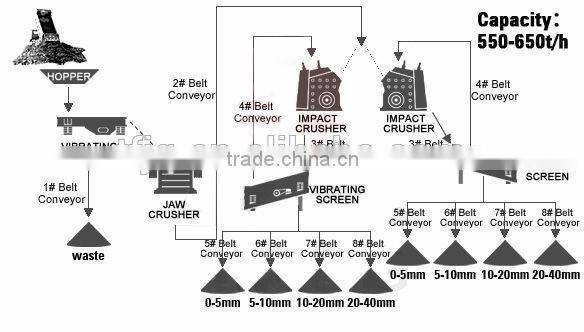

Vibrating feeder GZD1500X6000 feed the stone evenly and smoothly into the jaw crusher PE1200x1500, which will crush the stone from <940mm down to about 220mm as the primary crusher. Then belt conveyor will take the outputs of PE1200x1500 into the secondary crusher – 2 sets of European type impact crusher PFW1318III, to get further crushed down to about 40mm (or other sizes as the customer wanted), then the outputs of PFW1318III will be carried to 2 sets of vibrating screen 4YZS2460, to get separated into 5 kinds: 0-5, 5-10, 10-20, 20-40, and >40mm. Then >40mm will be carried back to 4YZS2460 for re-crushing, while 0-5, 5-10, 10-20, 20-40mm goes out into piles as final products.
