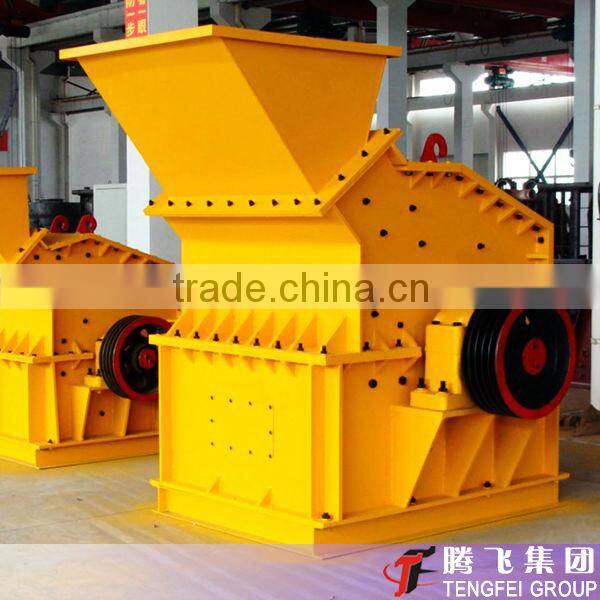

Efficient and Durable Fine Ore Crusher
- 55 Set / Sets per Month
- Qingdao Lianyungang Shanghai Ningbo etc
- T/T Credit Card
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Other, Fine Crusher | Application: | Mechanism sand, bituminous concrete, metal mine, aggregates shaping |
Motor Type: | AC Motor | Power(W): | 60-70 KW | Capacity(t/h): | 50-60 for Clinkers; 90 for Limestone |
Place of Origin: | Henan, China | Brand Name: | TengFei | Model Number: | PXJ-1000*1000 |
Dimension(L*W*H): | 3700x1760x2330 mm | Weight: | 10 t | Certification: | ISO, CE |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Fine Ore Crusher1. Simple in structure
2. Low operating cost
3. High efficiency and high capacity
4.ISO, CE
Fine Ore Crusher
Overview
New Style Fine Crusher incorporates the advantages of hammer crusher and impact crusher. It adopts “stone on stone" principle with a huge arc-shaped crushing cavity, which is a screen cavity with grate seam. Tengfei achieves the low cost operation of the fine crusher completely for the specialized plate hammer. PXJ plays the irreplaceable role in fine crushing with its high efficiency and low cost. It has gained the deep trust from customers and high market-occupying rate with the increasing products function.
Applications
Applied in all kinds of ores, cement, fireproofing material, bauxite chamotte, emery, glass raw material, machined construction sand, stone, all kinds of metallurgical slay, etc.
Model | Max Feeding Size (mm) | Average Discharge Size(mm) | Capacity(t/h) | Motor power (kw) | Weight (t) | |
Clinkers | Limestone | |||||
PXJ-800×400 | <80 | 3 | 15-20 | 37 | 20-25 | 3.9 |
PXJ-800×800 | <80 | 3 | 25-30 | 45 | 30-40 | 6 |
PXJ-900×800 | <100 | 3 | 30-35 | 45 | 35-40 | 7 |
PXJ-900×1000 | <100 | 3 | 40-45 | 55 | 45-50 | 8 |
PXJ-1000×1000 | <150 | 3-5 | 50-60 | 90 | 60-70 | 10 |
PXJ-1200×1000 | <200 | 3-5 | 70-80 | 110 | 80-90 | 13 |
PXJ-1200×1200 | <200 | 3-5 | 90-100 | 132 | 90-110 | 14.4 |
PXJ-1400×1400 | <200 | 3-5 | 110-150 | 160 | 120-160 | 22 |
PXJ-1600×1600 | <200 | 5-8 | 170-210 | 250 | 210-260 | 35 |
Five Features of the New Style Fine Crusher
- Feeding size: <150mm
- More than 90% of final products below 5mm
- Even particle size, higher output, more durable plate hammer
- Lower motor power, no need the third crushing.
- Simple structure, easy maintenance and stable running

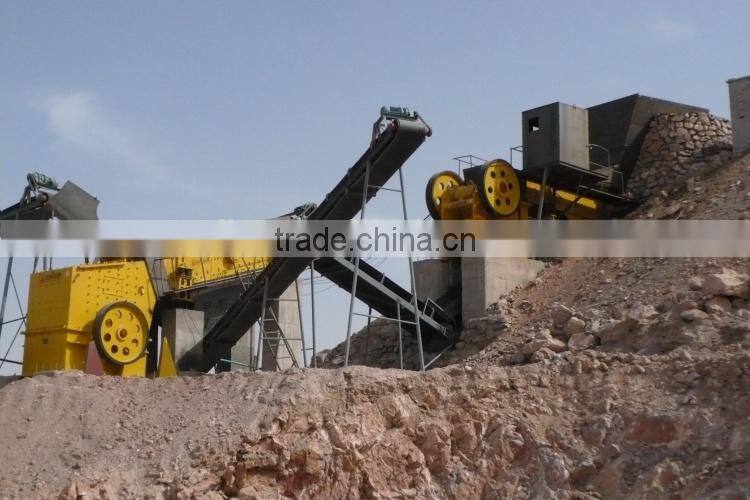

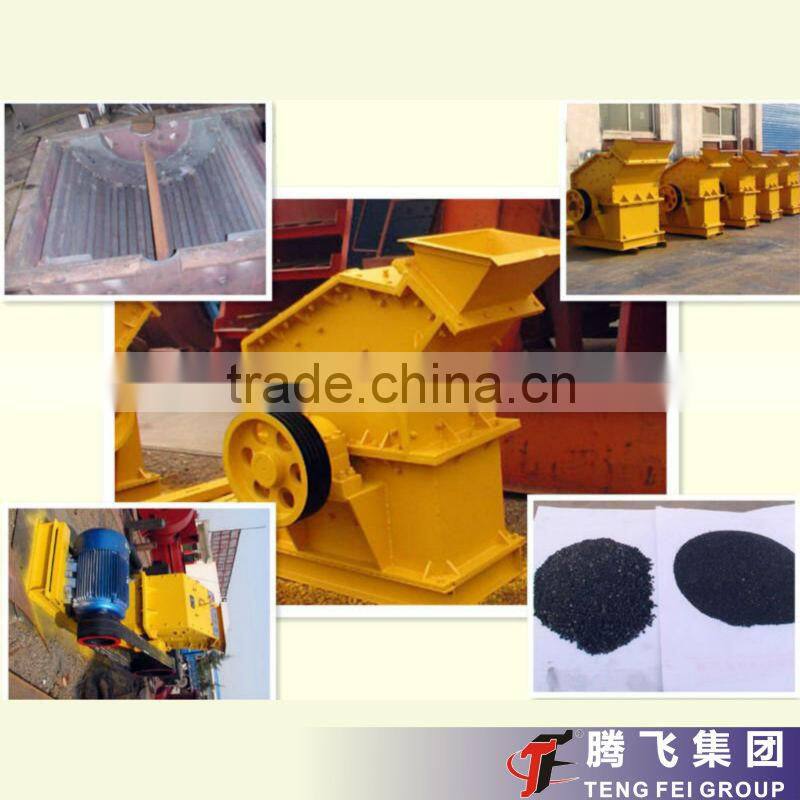

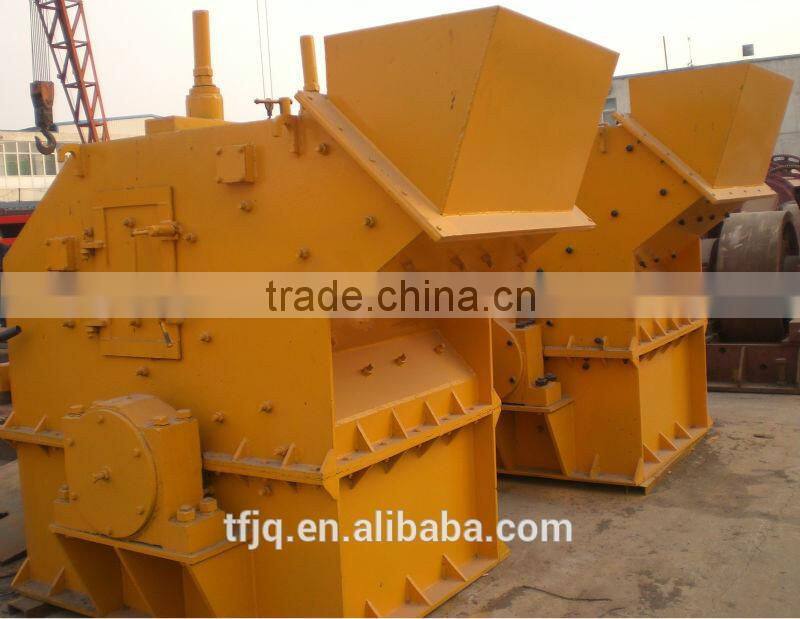

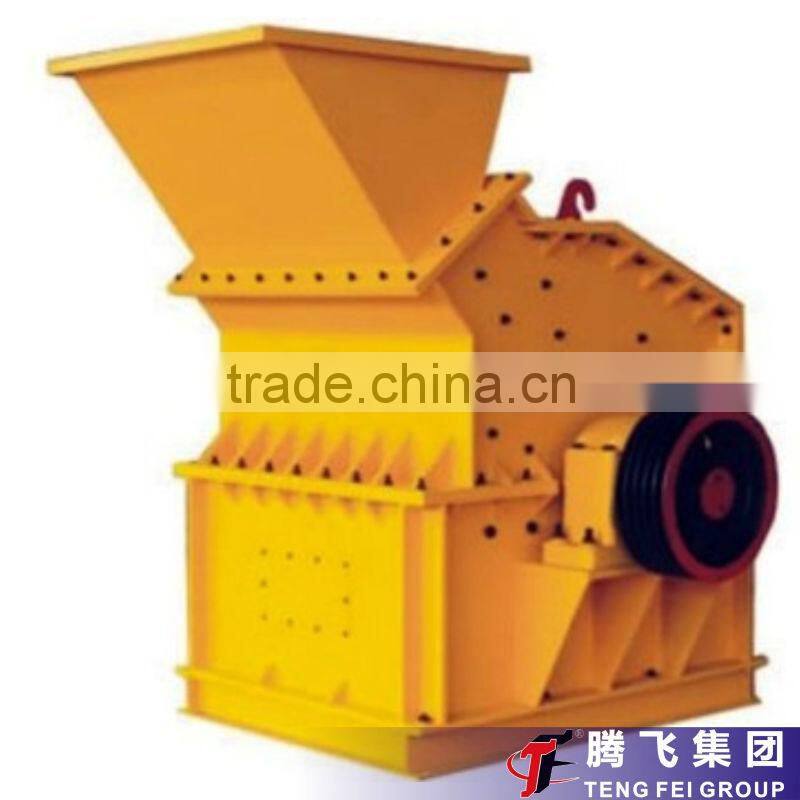

Pictures about the New Style Fine Crusher
1. Pre- sale service: our company can provide technological guidance and formulate suitable equipment matching program according with your specific production requirements.
2. On- purchase service: our company can solve professional technical problems and other related issues for you.
3. After- sales service: our company provides that engineers available to service machinery overseas and equipment for life maintenance.
