Flexible Connection Efficient Vibrating Screen
US$ 12,300 - 28,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Circular
Application:
Ore
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningnbo Tianjin etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Adjustable Exciting Force Sand Vibrating Sieve MachineUS$ 5,680 - 9,800MOQ: 1 Set -
Strong Exciting Force Sand Screen MachineUS$ 12,300 - 28,500MOQ: 1 Set
-
YZS Series High Efficient Circular Vibrating ScreenUS$ 1,620 - 18,900MOQ: 1 Set
-
Large Handling Capacity Vibrating Screening MachineUS$ 12,300 - 28,500MOQ: 1 Set
-
Flexible Connection Wet Vibrating ScreenUS$ 12,300 - 28,500MOQ: 1 Set
Condition
New
Type
Circular
Application
Ore
Place of Origin
Henan, China
Brand Name
TengFei
Model Number
YZS Series
Voltage
380v or required
Power(W)
11-22kw
Dimension(L*W*H)
Different
Weight
3.2t-12.78t
Certification
ISO CE
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Efficient Vibrating Screen1. Using eccentric block, stronger exciting force
2. Flexible connection
3.Large handling capacity
Efficient Vibrating Screen
TengFei Quality
Product Description
- Type: Necessary Equipment
- Input Size: 0-100mm
- Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
- Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
Detailed Specification of Efficient Vibrating Screen
- Efficient Vibrating Screen moves in a circular motion with multiple layers and high efficiency. The vibrating screen is designed with the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing.
- It is manufactured with long material screen rifling and many screen specifications. The vibrating screen is especially designed for screening stones and features reliable structure, strong vibration force, high screening efficiency, low vibrating noise, excellent durability, convenient maintenance, safe use, etc.
Technical Parameters of Efficient Vibrating Screen
Model |
Screen Size (mm) |
No. of Layer |
Screen mesh (mm) |
Max. feed size (mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Vibrating frequency (r/min) |
2YZS1237 |
3700×1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
3YZS1237 |
3700×1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
3YZS1848 |
4800×1800 |
3 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
4YZS1848 |
4800×1800 |
4 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |

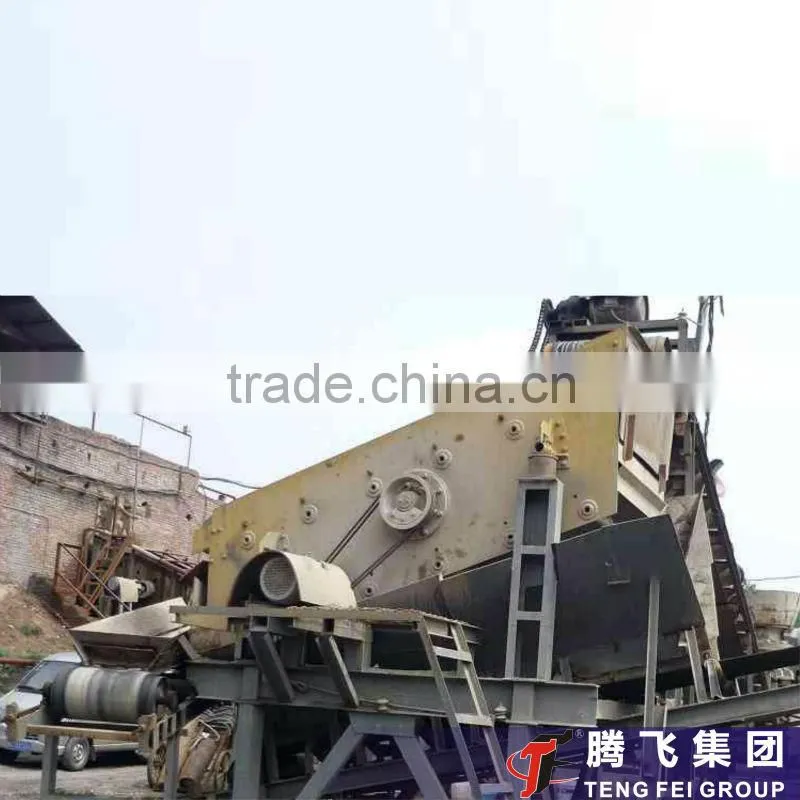

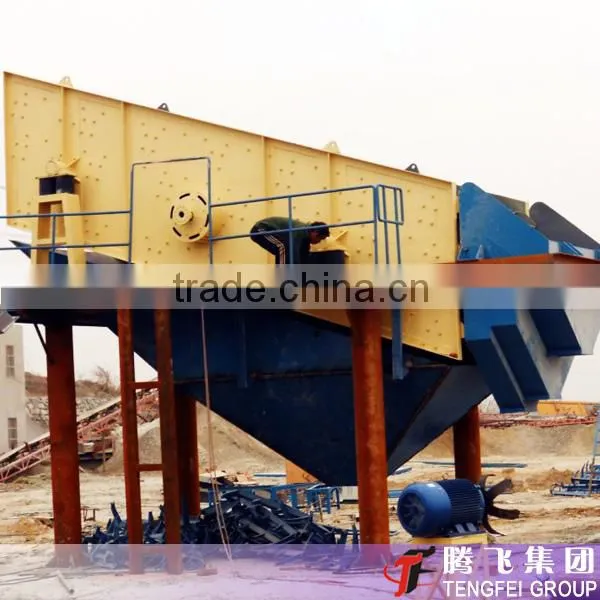

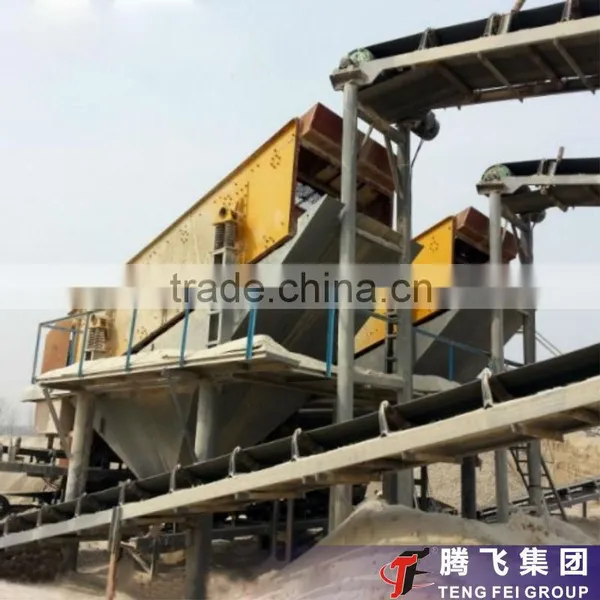

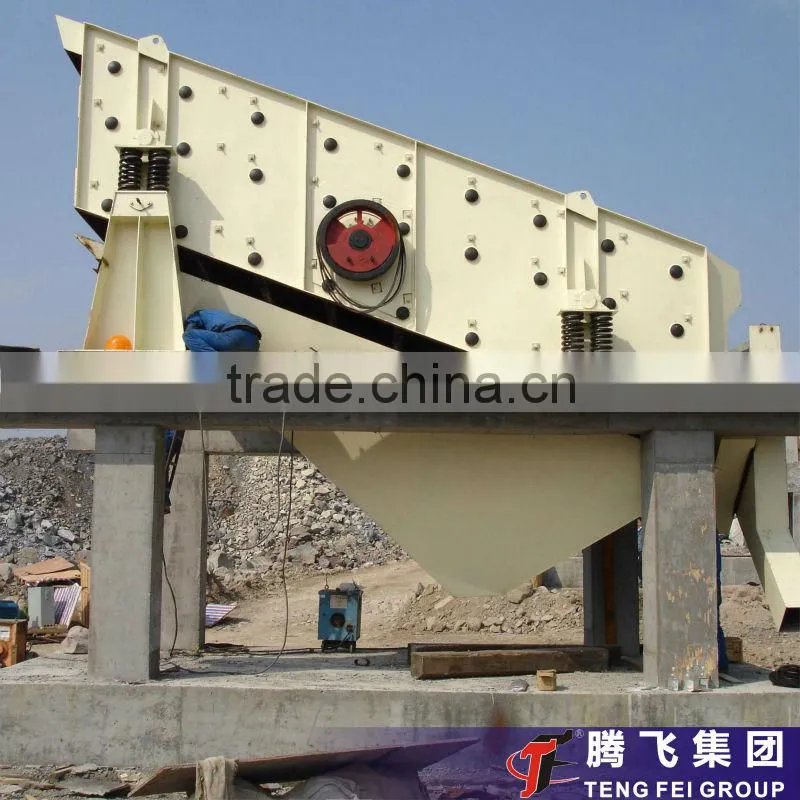

Working Site
