Specifications
Sand Sieve Machine1. Ring groove rivet connection
2. Advanced structure
3. Excellent durability
4. High efficiency
Sand Sieve Machine
Type: Necessary Equipmen
Input Size: 0-100mm
Processed Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangueetc.
Applications: Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
Intruduction of Sand Sieve Machine
- We have a wide range of Vibrate Screen suitable for various screening application.Vibrating Screens are used to separate materials into various sizes for further processing in Crusher.
- Vibrate Screen works on circular motion. It is applicable for wide range of operations like screening of dry or wet sand gravel crushed stone, mineral ores and industrial applications.
- We offer Vibrate Screen in a variety of combination of sizes to apt solutions for different capacity requirement for crushers. In screen grading, the material is separated mechanically on screen plates. Vibrating screen has rolling bearing stressed by high loads. Output of the screen depends on screen inclination, feeding system, screen RPM and vibration ratio.
- We can design and supply all ranges of vibrating screens according to the capacity and requirement
Technical Parameters of Sand Sieve Machine
Model |
Screen Size (mm) |
No. of Layer |
Screen mesh (mm) |
Max. feed size (mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Vibrating frequency (r/min) |
2YZS1237 |
3700×1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
3YZS1237 |
3700×1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
2YZS1548 |
4800×1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
3YZS1548 |
4800×1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
2YZS1848 |
4800×1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
3YZS2160 |
6000×2100 |
3 |
3-100 |
400 |
81-720 |
30 |
700-900 |
4YZS2160 |
6000×2100 |
4 |
3-100 |
400 |
81-720 |
30 |
700-900 |
2YZS2460 |
6000×2400 |
2 |
3-150 |
400 |
100-500 |
30 |
700-900 |

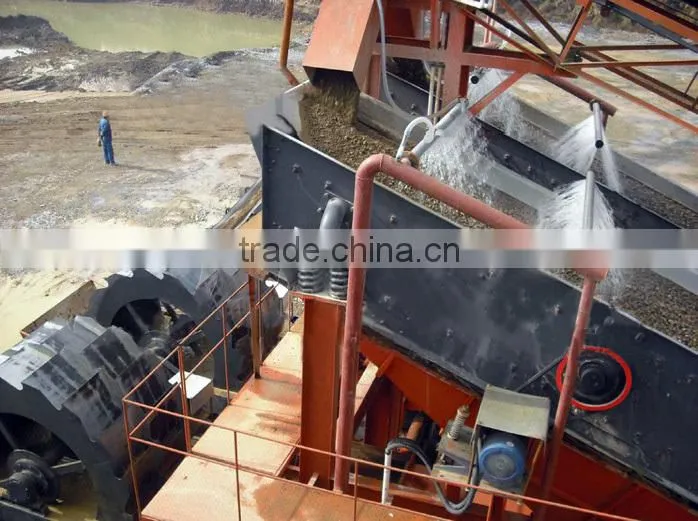

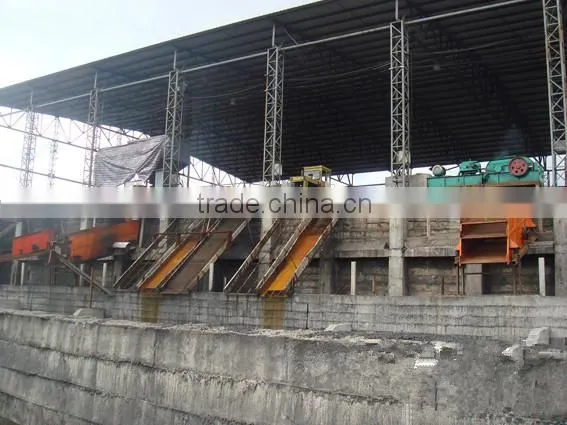

Worksite of Sand Sieve Machine:
