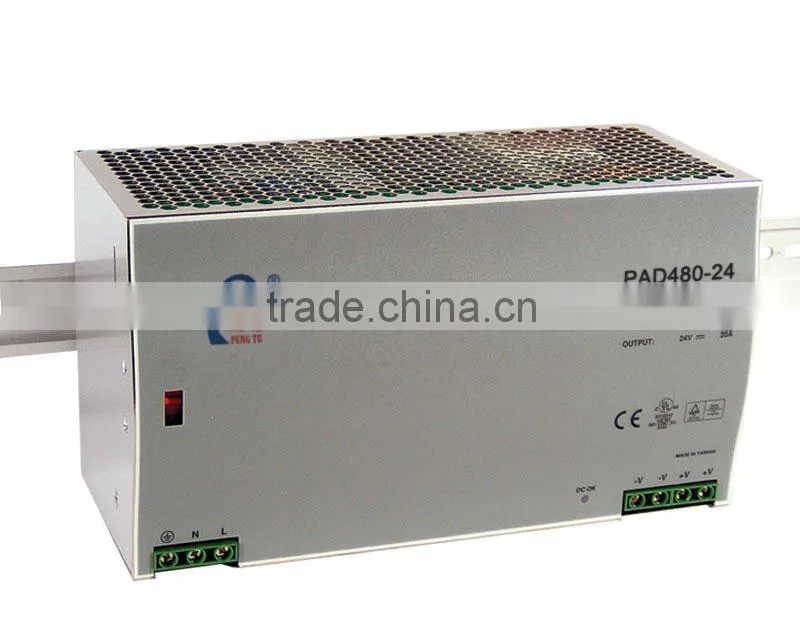

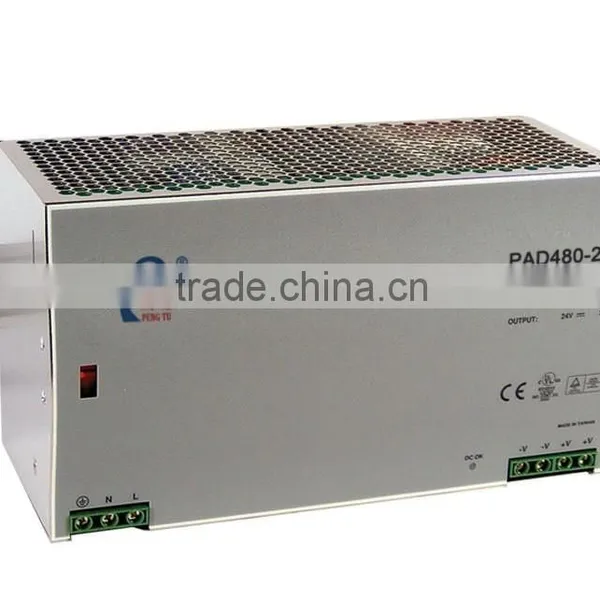

Help CenterPAD480 Series 480W DC/DC Din Rail Switching Power Supply
Related Products
-
High Quality Low Price Power Supply 48vdc Din RailNegotiableMOQ: 1 Piece -
400VAC to 24vdc 120w Din Rail Power Supply From Expert ManufactureUS$ 10 - 15MOQ: 1 Piece
-
Power Supply 12v Din Rail From Expert ManufactureUS$ 10 - 15MOQ: 1 Piece
-
High Quality Low Price Din-rail Power SupplyNegotiableMOQ: 1 Piece
-
PAD120 Series Hot Sale Power Supply Switch Din RailUS$ 1 - 25MOQ: 1 Piece
High quality low price din rail switching power supply
l Universal AC input voltage
l Install DIN-RAIL TS35/7, 5 or 15
l Using lead-free process, According with environmental protection RoHS requirement main index
Features
l Universal AC input voltage
l Install DIN-RAIL TS35/7, 5 or 15
l Using lead-free process, According with environmental protection RoHS requirement main index
l Insert PFC main index
Input Characteristic
l Inputvoltage range…………………… 90 ~ 240VAC / 140~340VDC
l Input inrush current …………………… cold start, 45A / 230V
Output Characteristic
l Adjustable extent of foutput voltage ……… 12V: 12 ~ 14V, 24: 24 ~ 28V, 48V: 48 ~ 53V
l Overloadprotection …………Over current point in 105% ~ 150% when constant current limit flow, self-reset
l Over-voltage protection ……………………… 24VDC (30-36V); 48VDC(54-60V), Restart
l Over temperature protection ………………… shut off, Temperature recovery
General Characteristic
l Insulationcharacteristic …input and output : 1.5KVAC, input and case : 1.5KVAC, output and case : 0.5KVAC 1MIN
l Operating temperature …-10 ~ +60℃ (See the output drop load curve)
l Safety Certification ………Reference through the UL508, TUV EN60950-1 certification
l EMC Standards ………… EN55022 class B, EN61000-3-2.3 ENV50204, EN-61000-6-2
l Industrial standard ………EN61000-4-2, 3, 4, 5, 6, 8, 11
l Modeof connection………input : 3 points, output : 4 point screw DIN terminal
l Dimension(W*H*D)mm : 277*125.2*100MM
Models
Model |
Output Lines |
Power (W) |
Output V.(V) |
Output Curr.(A) |
Ripple (mv) |
Efficieency (%) |
PAD240-220S24 |
Single |
240 |
24 |
20 |
100 |
85 |
PAD240-220S48 |
48 |
10 |
200 |
86 |
Remarks: Custom-made specifications are acceptable.

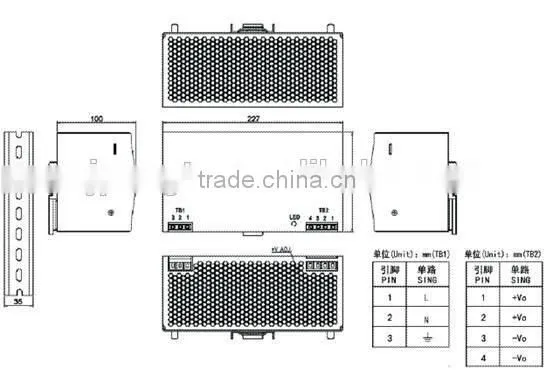

Mechanical drawing and pin definition
