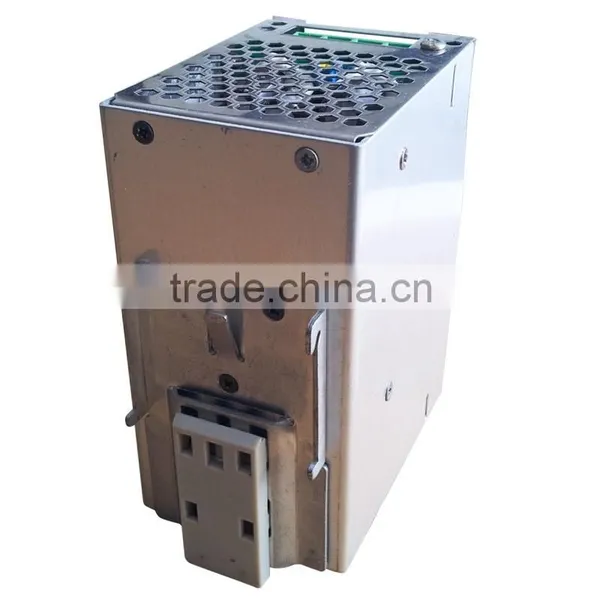

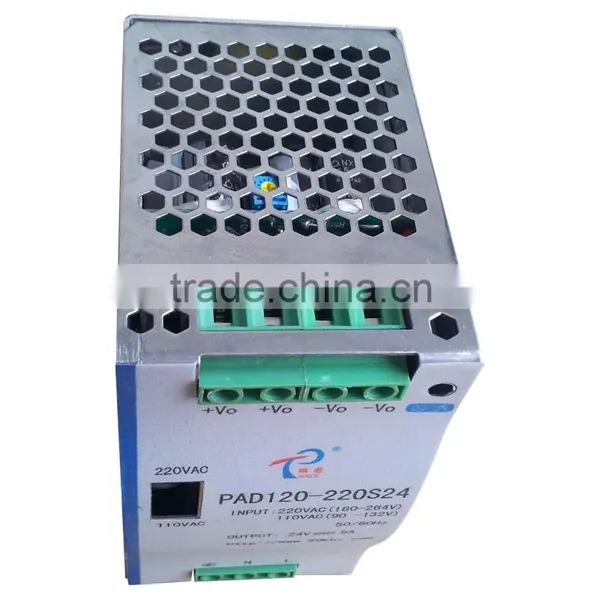

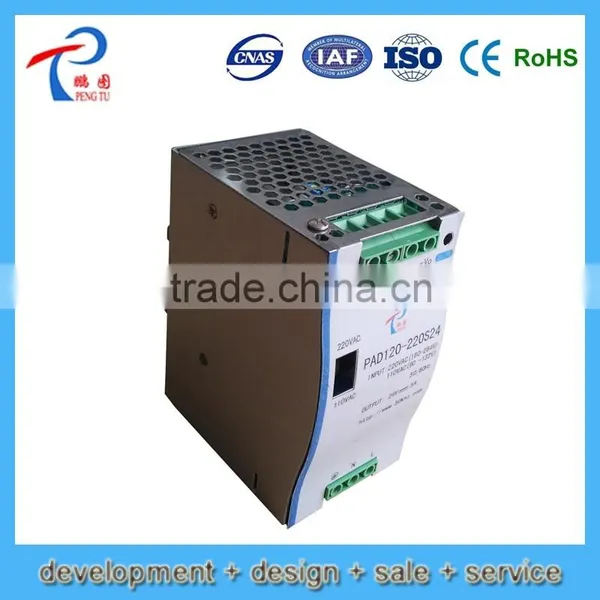

PAD120 Series 120W switch din rail
Features
l Double insulation level
l Light standby consumption wattage <1W (conform to the energy star requirements)
l Suitable for installation on DIN-rail TS35 / 7.5 or 15
l Suitable for building automation and control field main index
Input Characteristic
l Inputvoltage range…………………… 90 ~ 132VAC / 180~264VAC l Input inrush current …………………… cold start, 40A / 230V
Output Characteristic
l Adjustable extent of foutput voltage ……… 12V: 12 ~ 14V, 24: 24 ~ 28V, 48V: 48 ~ 53V
l Overloadprotection …………Over current point in 105% ~ 150% when constant current limit flow, self-reset
l Over-voltage protection ……………………… Rated output voltage of 115% ~ 142% when shut off, self-reset
l Over temperature protection ………………… shut off, Temperature recovery
General Characteristic
l Insulationcharacteristic …input and output : 1.5KVAC, input and case : 1.5KVAC, output and case : 0.5KVAC 1MIN
l Operating temperature …-10 ~ +60℃ (See the output drop load curve)
l Safety Certification ………Reference through the UL508, TUV EN60950-1 certification
l EMC Standards ………… EN55022 class B, EN61000-3-2.3 ENV50204, EN-61000-6-2
l Industrial standard ………EN61000-4-2, 3, 4, 5, 6, 8, 11
l Modeof connection………input : 3 points, output : 4 point screw DIN terminal
l Dimension(W*H*D)mm : 125.2*55.5*100MM
Models
| Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| PAD120 Series 120W | ||||||
| PAD120-220S12 | Single | 120 | 12 | 10 | 80 | 80 |
| PAD120-220S24 | 24 | 5 | 80 | 84 | ||
| PAD120-220S48 | 48 | 2.5 | 100 | 85 | ||
Remarks: Custom-made specifications are acceptable.
Mechanical drawing and pin definition
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
switch din rail
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid service.
switch din rail
If you want to know more information ,pls feel free to contact us. Any feedback from you will be given the prompt attention and reply!
