Help CenterPA-D Series Professional Manufacture 230V AC 24V DC Power Converter Module
Related Products
-
PA-D Series Professional Manufacture Power ConvertersNegotiableMOQ: 1 Piece -
PA-D Series Professional Manufacture ac Power ConverterNegotiableMOQ: 1 Piece
-
PA-D Series Professional Manufacture Power Converter 120v to 240vNegotiableMOQ: 1 Piece
-
PA-D Series Professional Manufacture 48vdc RectifierNegotiableMOQ: 1 Piece
-
PA-D Series Professional Manufacture ac dc Power Module 5vNegotiableMOQ: 1 Piece
Specifications
PA-D Series 230V AC 24V DC power converter moduleWide input voltage
Broadband noise filter input
PA-D Series 5-10W 230V AC 24V DC power converter module
We can supply you all kinds of power converter. If you can not find your required below, pls feel free contact with us.
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±2%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 0.2-2A
l Output voltage …………………………… 3.3-48V
l Power …………………………………… 5-10W
General Characteristic
l Switching frequency …………………… 40-60 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>2000 VAC/Min (Leakage current<5mA)
Input-case: >2000 VAC /Min (Leakage current<5mA)
Output-case: >500 VAC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃
Storage temperature ……………….. Industry: -45~ +105℃
Models
| Model | Output Lines | Input V. (V) | Input V. Range (V) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) |
| PA-D Series 5-10W | |||||||
| PA5-220S05-D | Single | 220 | 85-264 | 5 | 1 | 50 | 73% |
| PA5-220S12-D | 220 | 85-264 | 12 | 0.417 | 120 | 75% | |
| PA5-220S24-D | 220 | 85-264 | 24 | 0.208 | 200 | 75% | |
| PA10-220S05-D | 220 | 85-264 | 5 | 2 | 50 | 73% | |

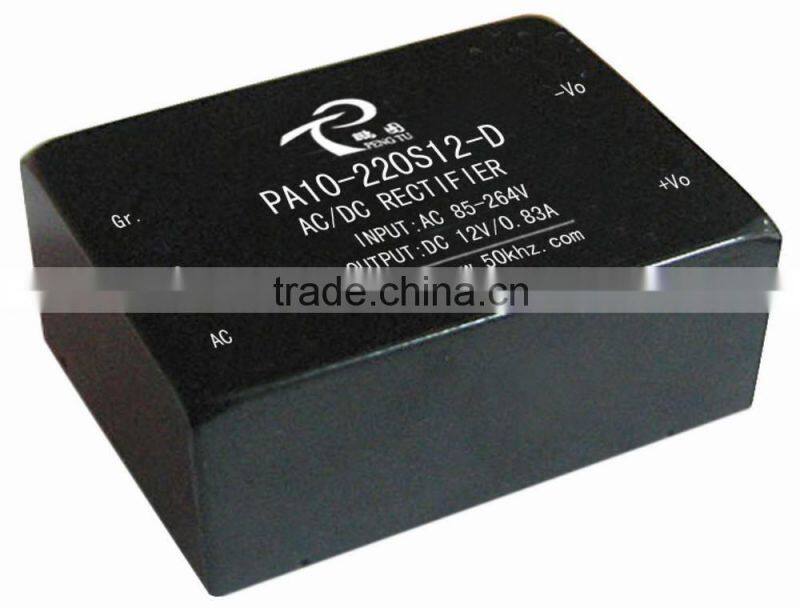

| PA10-220S12-D | 220 | 85-264 | 12 | 0.83 | 120 | 76% | |
| PA10-220S24-D | 220 | 85-264 | 24 | 0.417 | 200 | 76% | |
| PA10-220D05-D | Dual | 220 | 85-264 | 05&05 | 1&1 | 50/50 | 75% |
| PA10-220D12&24-D | 220 | 85-264 | 12&24 | 0.5&0.16 | 50/150 | 75% | |
| PA10-220T05&05&05-D | Triple | 220 | 85-264 | 05&05&05 | 0.66&0.66&0.66 | 80/80/80 | 75% |
| PA10-220T05&12&24-D | 220 | 85-264 | 05&12&24 | 1&0.208&0.104 | 80/120/240 | 75% | |
Remarks: Custom-made specifications are acceptable.

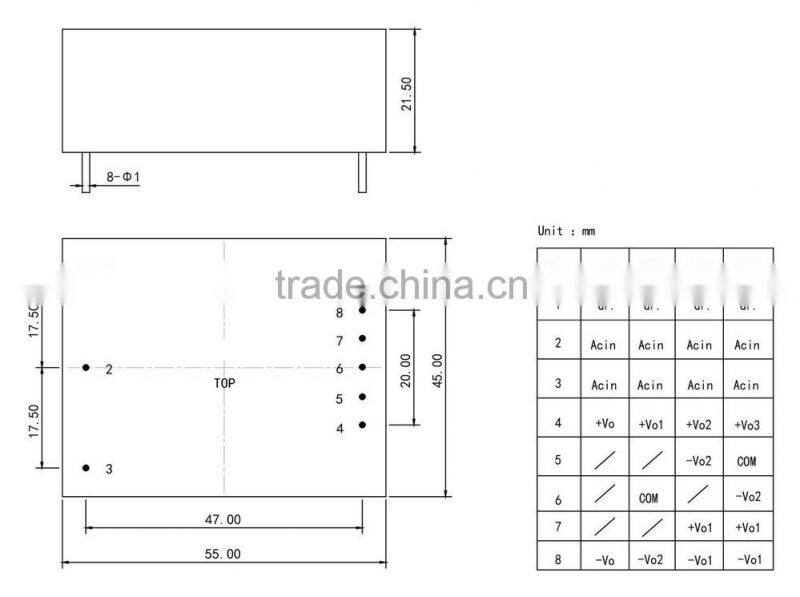

Mechanical drawing and pin definition
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide paid .36w
slim led panel light
If you want to know more information ,pls feel free to contact us. Any feedback from you will be gave the prompt attention and reply!
