PA-D Series 5-10W module power sourceWide input voltage
Broadband noise filter input

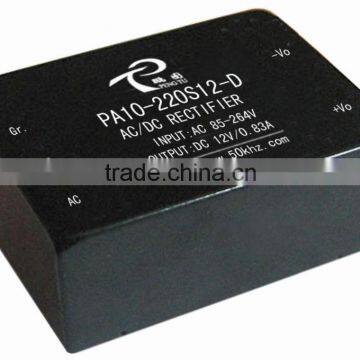

PA-D Series 5-10W Pin type AC/DC module power source
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±2%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 0.2-2A
l Output voltage …………………………… 3.3-48V
l Power …………………………………… 5-10W
General Characteristic
l Switching frequency …………………… 40-60 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>2000 VAC/Min (Leakage current<5mA)
Input-case: >2000 VAC /Min (Leakage current<5mA)
Output-case: >500 VAC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃
Storage temperature ……………….. Industry: -45~ +105℃
Models
| Model | Output Lines | Input V. (V) | Input V. Range (V) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (Typ) |
| PA-D Series 5-10W | |||||||
| PA5-220S05-D | Single | 220 | 85-264 | 5 | 1 | 50 | 73% |
| PA5-220S12-D | 220 | 85-264 | 12 | 0.417 | 120 | 75% | |
| PA5-220S24-D | 220 | 85-264 | 24 | 0.208 | 200 | 75% | |
| PA10-220S05-D | 220 | 85-264 | 5 | 2 | 50 | 73% | |
| PA10-220S12-D | 220 | 85-264 | 12 | 0.83 | 120 | 76% | |
| PA10-220S24-D | 220 | 85-264 | 24 | 0.417 | 200 | 76% | |
| PA10-220D05-D | Dual | 220 | 85-264 | 05&05 | 1&1 | 50/50 | 75% |
| PA10-220D12&24-D | 220 | 85-264 | 12&24 | 0.5&0.16 | 50/150 | 75% | |
| PA10-220T05&05&05-D | Triple | 220 | 85-264 | 05&05&05 | 0.66&0.66&0.66 | 80/80/80 | 75% |
| PA10-220T05&12&24-D | 220 | 85-264 | 05&12&24 | 1&0.208&0.104 | 80/120/240 | 75% | |
Remarks: Custom-made specifications are acceptable.
