2.5W 3Wmax Single Output 120v ac to 9v dc converter PA-A series
Features
l Wide input voltage
l Broadband noise filter of input
l Comply with UL1950, IEC950 safety regulation
l Nice shape design
l Pin function compatible
l Fast dynamic response
Input Characteristic
l Inputvoltage range……………………85 ~ 264 VAC Rated value: 220VAC
Reverse Protection
Fuse Outside
Output Characteristic
l Voltage accuracy …….................…………±1%
l Line regulation(main) ………………........±0.2%
l Load regulation(main) …………….......…±0.4%
l Temperature coefficient …………........…±0.01%/℃
l Output current limiting ………….........… 120%(Typ)
l Dynamic response ……………………… 400μs
l Output current …………………………… 0-1A
l Output voltage …………………………… 3.3-48V
l Power …………………………………… 0.1-3W
General Characteristic
l Switching frequency …………………… 40-60 KHz
l Isolation resistance …………………… 200 MΩ
l MTBF ………………………………… >500000H
l Isolation voltage
Input-output:>1500 VAC/Min (Leakage current<5mA)
Input-case: >1500 VAC /Min (Leakage current<5mA)
Output-case: >500 VAC/Min
l Environmental Characteristic
Case temperature …………………… Industry: -25-+85℃
Storage temperature ……………….. Industry: -45~ +105℃
Models
If you can not find the required products below, pls feel free contact with us! We can supply you all kinds of power converter and switching power supply.
Remark: Custom-made specifications are acceptable.

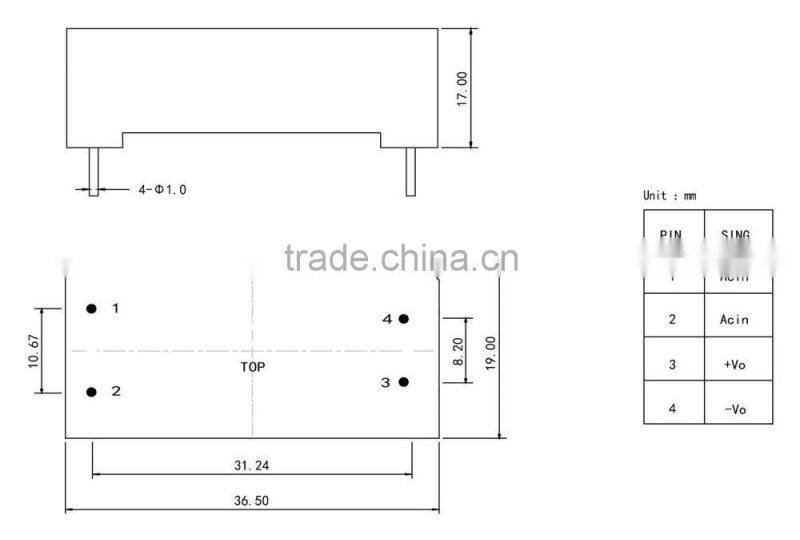

Mechanical drawing and pin definition
Shipping:
Warranty and Guarantee:
Other Policies:
