MG Manufacturer Magnet Wire Colored Aluminium Enamelled Winding Wire
- 1000 Ton / Tons per Month
- Qingdao Shanghao Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
- XTW CXWT 300V UL62 PVC FIexible Cord
- Enameled Copper wire
- 3x185mm2 Overhead Insulated Cable
- Service Drop Cable XLPE/PVC/PE Insulated
Product Details
Place of Origin: | Henan, China | Brand Name: | MG | Model Number: | Aluminium Enamelled Winding Wire |
Type: | Insulated | Application: | Other, Aluminium Enamelled Winding Wire for Transformer, Welding Machine | Conductor Material: | Aluminum |
Conductor Type: | Solid | Insulation Material: | Enameled |
Product Description

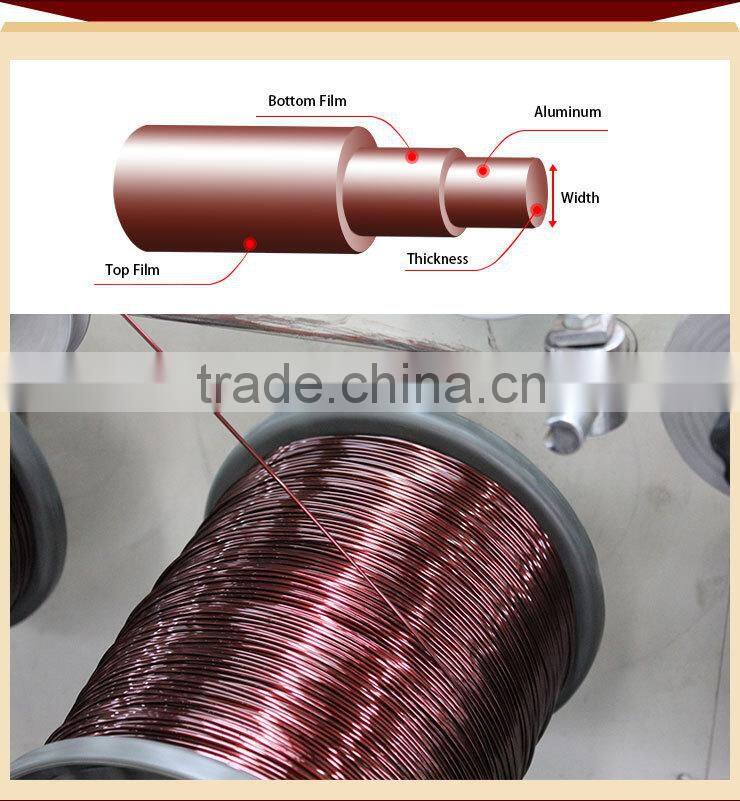

Aluminium Enamelled Winding Wire
1. Features of Aluminium Enamelled Winding Wire
a) High cut through
b) Good electricity performance
c) Excellent resistance to abrasion and solvent

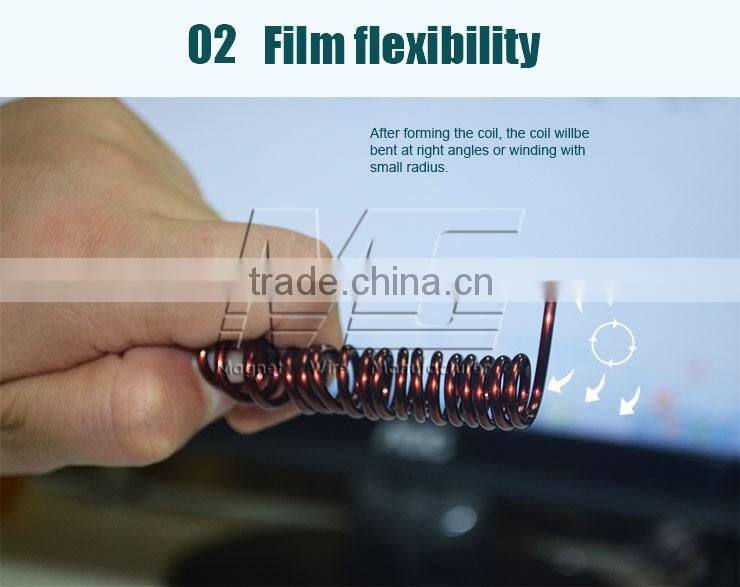

d) Excellent heat shock, adherence and flexibility
2. Advantages of Aluminium Enamelled Winding Wire
♦ Square Wire are available
♦ Varieties of wires,Stable quality
♦ Timely,continuous after-sales service
♦ Professional Tech and sales Work Team
♦ Safe and variety packing terms are available
♦ Double or Three Type Insultaions covered wires are available
♦ NEMA/IEC/JIS/GB and any Local Standards base on requirements

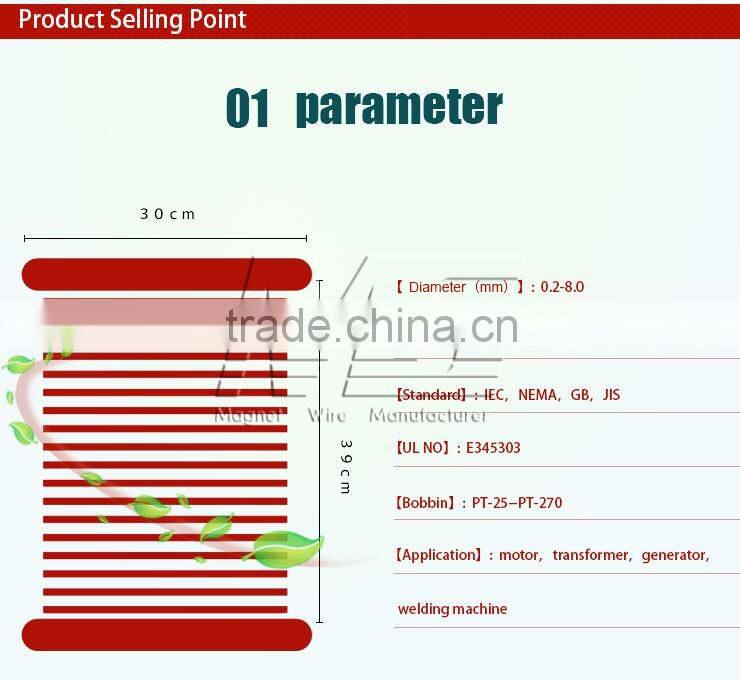

3.Reference parameter as follows
Name | enameled aluminum wir | ||
Type | Q(ZY/XY)L-2/220 | ||
Diameter | 0.2-8mm | ||
Standard | MW35-A | ||

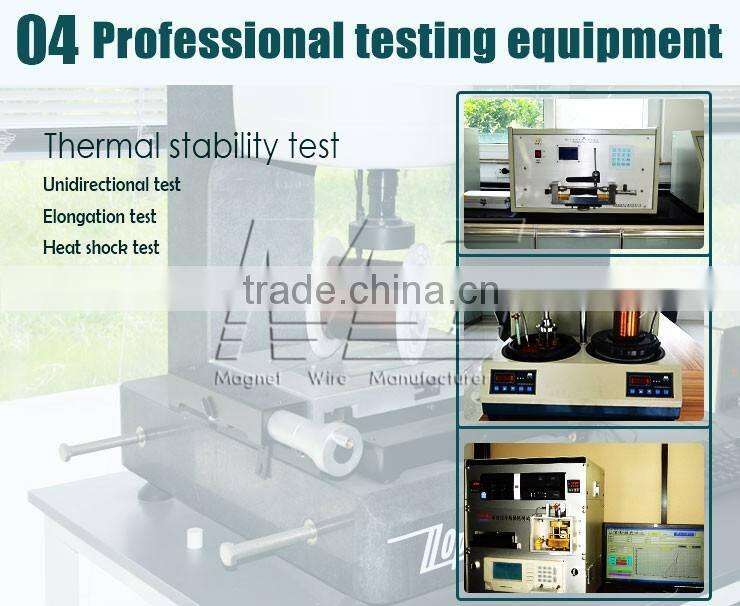

Test Item | Unit | Technical Requirement | Test Result |
Appearance | bright and clean, Uniform color, | Ok | |
Overall Diameter | mm | <5.330 | 5.269 |
Conductor Diameter | mm | 5.138-5.225 | 5.160 |
Thickness of insulation film | mm | >0.094 | 0.109 |
resistance | Ω/m | <0.001364 | 0.001300 |
Elongation | >15% | 36% | |
winding test | no cracking | Ok | |
Tensile Test | 15% No cracking | no cracking | |
Peel twist | insulation film Without losing adhesion | Ok | |
Jerk test | insulation film Without losing adhesion | Ok | |

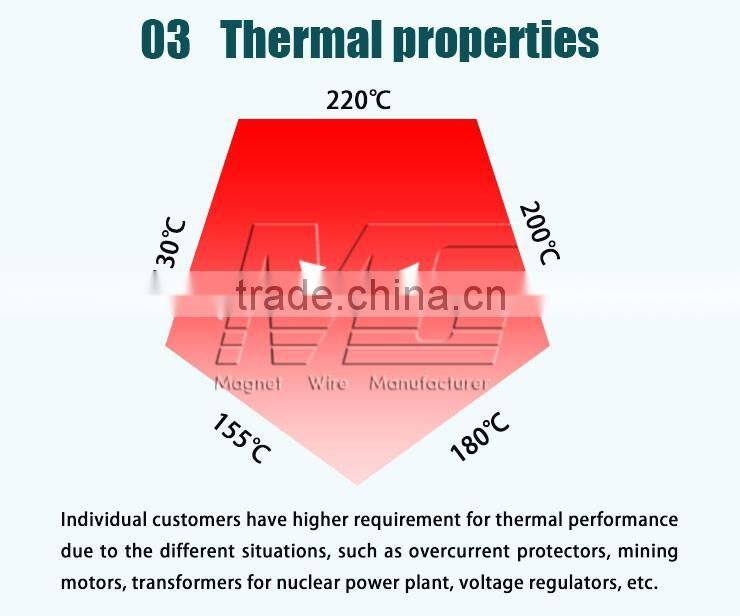

Resistance to heat shock | °C | 240 °C insulation film no cracking | Tensing 15% half an hour, no cracking |
Resistance to solvent | Standard solvent “H” Pencil | 2H is ok | |
Breakdown Voltage | KV | > 3.7KV | 6.0,5.8,5.7,5.8,5.0 |
package | Meet the export standards | Ok | |
Quality Control Result | Ok |
We will try our best to send the Aluminium Enamelled Winding Wire to your city as soon as possible. Carton and wooden box will be used as double protection to protect the product from wear and tear during transport.
We are a enterprise which is widely known in the industry for the excellent range of magnet wire products, which we offer to our customers. We are a high profile supplier, manufacturer and an exporter of a wide range of Enameled Wire ,which are made using a superior range.Our products are made available to the customers at very reasonable rates in the market.Main application including:
♦ Oil-immersed transformer windings;
♦ Motor, transformer, generator,welding machine;
♦ Medium and large electrical motor and transformer windings;
♦ Power substations,rectifiers,furnace transformer oil-immersed transformer coil winding;
♦ Lifting electromagnet,reactors and other low-voltage and high current electromagnetic winding;
♦ Used in aerospace,submersible motor and high voltage coil,wind turbines,micro-electronics and so on.
HENAN MG MAGNET WIRE.,LTD. is a professional supplier of magnet wires and electrical materials. From the company founded till now, our company has been committed to providing professional Enameled Magnet wires , winding Magnet Wires and Electrical materials for customers.
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing enameled magnet wire and winding magnet wire market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, sureness and steadiness,providing best service,devotion and dedication".Please feel free to contact us at any time.
