Super Mini Elm327 Bluetooth V1.5 OBD2 OBD II Can-Bus Diagnostic Car Scanner Tool With Switch

Support OEM & ODM

Features:
Enable to read diagnostic trouble codes.
Small bluetooth interface with a 16 pin socket.
Support different kinds of devices to use this scan tool: Android system phones, Symbian system phones, Windows XP and WIN7 32bite computers.
With a switch to turn on/ off these indicator lights.

Bluetooth pairing PIN code: 1234

Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others...

Compatible software:
Windows version: ScanMaster-ELM, , PCMSCAN;
Android version: Torque, OBD Car Doctor, DashCommand, EOBD;
Symbian version: OBDScope.

Software Support Platform: Windows XP, Windows 7, Android, Symbian.

Support OBDII Protocols:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP(5 baud init,10.4 Kbaud)
ISO14230-4 KWP(fast init,10.4 Kbaud)
ISO15765-4 CAN(11bit ID,500 Kbaud)
ISO15765-4 CAN(29bit ID,500 Kbaud)
ISO15765-4 CAN(11bit ID,250 Kbaud)
ISO15765-4 CAN(29bit ID,250 Kbaud)

Package List:
1 x Mini OBDII ELM327 Bluetooth Adapter
1 x CD-Ro

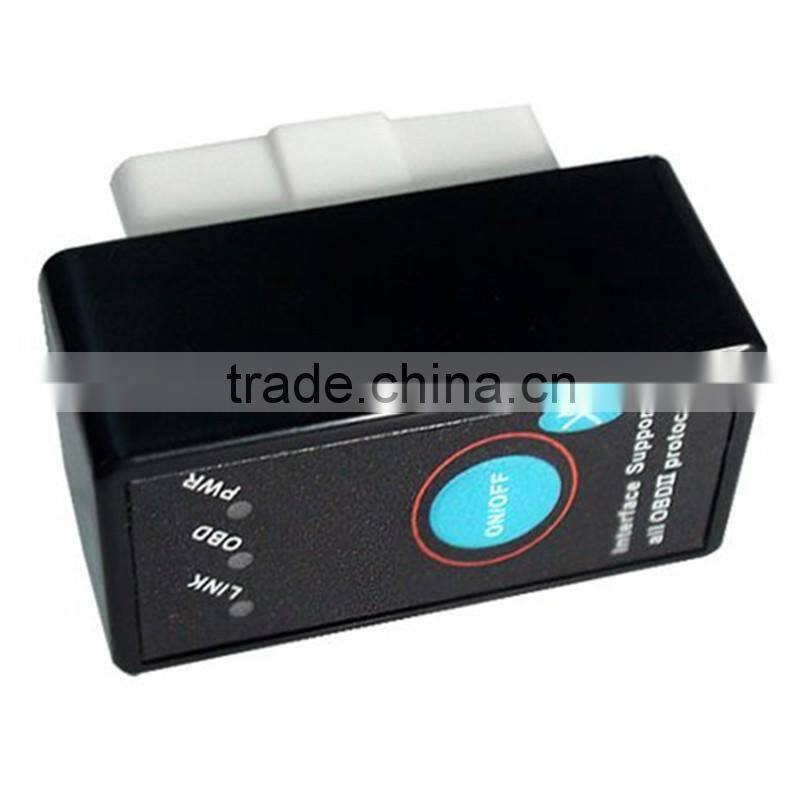

Product Display
