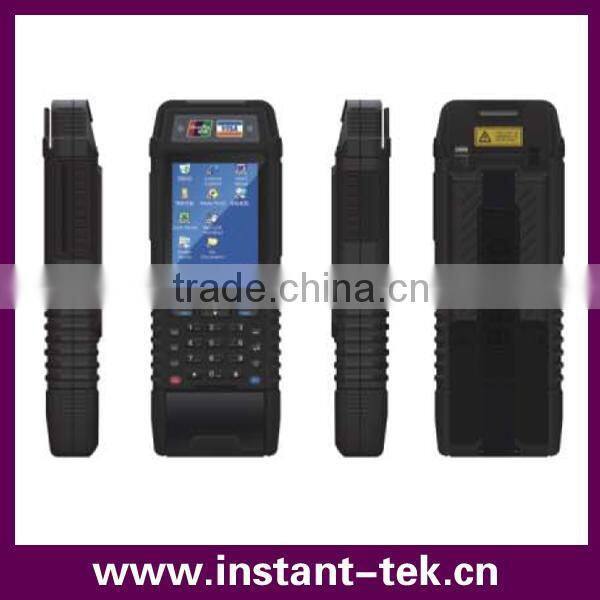

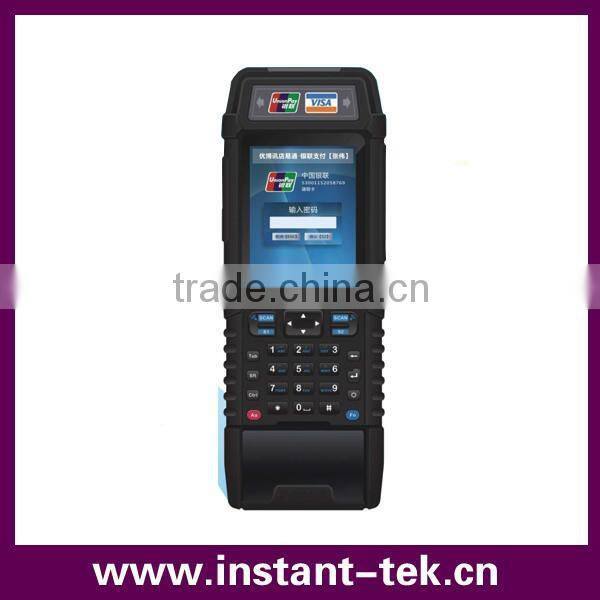

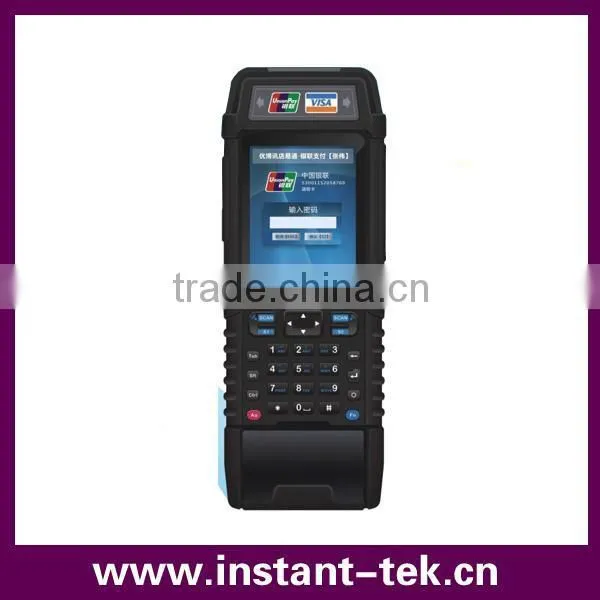

Rugged Mobile Payment Terminal JK-i9000
Mobile Payment / Wireless Communication
Data Collection / Mobile Printing
JK’s rugged mobile payment terminal JK-i9000 is designed for application in current e-commerce industry, financial insurance, retail, express logistics, police enforcement, counterfeiting, sourcing and more. Integrating customized application, security payment, fast data collection and information access features, it combines financial POS and traditional industry PDA to provide powerful solutions in different fields.
Professional Financial Transaction
Support 3 E-payment methods: magnetic stripe card reader, IC card reader and contactless RFID card reader
High Performance
1GHz CPU, 2.3-inch color touch screen, extra-large storage capacity, integrated terminal printer, bar code reader and camera to satisfy multi-function in financial, industrial application and TMS terminal management
High Security
Designed according to PCI safety standard, it has passed the safety assessment test (PIN input safety for Union Pay) to ensure secure financial transaction
Rugged Industrial PDA
Compliant with industrial protection grade of IP64, completing tasks with excellence even in harsh working environment
Multiple Data Communication
Support communication modes of 2.5G, 3G, WiFi and Bluetooth
Modern and Business Style
Ergonomic design for easy operation and carrying, built-in large battery for long working time.
Dual Operation Systems
Windows CE 6.0 and Android 2.3 optional
Application Fields:
Transportation & Logistics / Garment & Chain Store / Retail Market / Wholesale / International Trade / Healthcare & Hospitality / E-commerce / Financial and Insurance / Government Law Enforcement / Manufacturing
| JK-i9000 Specification | |||
| Physical Characteristics |
Dimentions | 220*75*30mm | |
| Weight | 550g(include battery) | ||
| Keyboard | 28keys(numeric/alphabetic keys,diretional button,scan button,warm reset key) | ||
| Input | Chinese, English, handwriting, soft keyboard support | ||
| Display | 3.2-inch TFT-LCD QVGA (240*320) color touch screen | ||
| Power | Main Battery | Removable, rechargeable 7.4V 2200mAh lithium battery pack,which can work for eight hours or above (depending on environment). | |
| Slave Battery | 150mAh lithium battery | ||
| RTC Battery | Individual RTC to keep real time clock working | ||
| Performance Characteristics |
O.S. | Microsoft Windows CE 6.0 R3 & Android 2.3 (multi-language) | |
| Main Processor | 1GHz | ||
| Security Processor | MAXQ1850 | ||
| Memory | ROM | 256MB/512MB Nand flash | |
| RAM | 256MB/512MB Mobile DDR | ||
| Expansion | Support Micro SD/TF x 1 (up to 32G)+A1, SIM x 1, PSAM x 1 | ||
| Audio | loudspeaker x 1, microphone x 1, earphone x 1 | ||
| Interfaces | Mini USB x 1, DC jack x 1, 3.5mm Andio Jack x 1 | ||
| Barcode Scanner | 1D Laser | Scanning Rate | 100±20scan/sec |
| Decode Capability |
UPC-A,UPC-E,UPC-E1,EAN-8,EAN-13,Bookland EAN, | ||
| Code39,Codabar,Code128,Disrete 2 of 5;IATA 2 of 5;Interleaved 2 of 5;Code 93;UPC A;UPC E0;EAN 8;EAN 13;MSI;EAN 128;UPC E1: | |||
| Trioptic Code 39;Bookland EAN;Coupon Code; RSS-Limited;RSS-14;RSS-Expanded; | |||
| 2D CMOS | Scanning Rate | 100±20scan/sec | |
| Decode Capability |
1D Symbologies: UPC/EAN,Bookland EAN,UCC Coupon Code,ESSN EAN,CODE 39,CODE 128,GS1-128,ISBT 128,Trioptic Code 39,CODABAR,MSI,Interleaved 2/5,Discrete 2/5,Chinese 2/5,Korean3/5,Matrix 2/5, CODE 32,CODE 93,CODE 11,Inverse 1D,GS1 DataBar,Composite Codes | ||
| 2D Symbologies: PDF417,MicroPDF417,Data Matrix,Data Matrix inverse,MaxiCode,QR Code,Aztec,Aztec Inverse | |||
| Postal Codes: U.S.Postnet,U.S.Planet,U.K.Postal,Japan Postal,Australian Postal,Netherlands KIX Code,USPS 4CB/One Code/Intelligent Mail,UPU FICS Postal | |||
| Wireless Communication |
Wi-Fi WLAN | WIFI 802.11b/g Frequency range: 54MB/sec; Cisco Compatible CCX2/3 Security,CISCO AP Security | |
| WAN | Frequency Range | GSM 850/900/1800/1900MHz | |
| Data Rate | GPRS multi-slot Class 10:DL 85.6 kbps/UL 42.8kbps | ||
| GPRS multi-slot Class 8: DL 85.6 kbps/UL 21.4kbps | |||
| WCDMA | Frequency Range | UMTS2100/900 MHz | |
| UMTS1900/850 MHz | |||
| GSM850/900/1800/1900 MHz | |||
| Data Rate | GSM CS: UL 9.6kbps/DL 9.6kbps | ||
| GPRS/EDGE: Multi-slot Class 12, Class B | |||
| WCDMA CS: UL 64kbps/DL 64kbps | |||
| WCDMA PS: UL 384kbps/DL 384kbps | |||
| HSDPA: DL 3.6Mbps | |||
| CDMA 2000 | Frequency Range | CDMA2000 1x,CDMA2000 EV-DO Rev. 0, | |
| CDMA2000 EV-DO Rev. A | |||
| Supports BC0(800MHz band), BC1(1900MHz band) | |||
| Data Rate | CDMA2000 1X: UL/DL: 153.6kbps | ||
| CDMA2000 1X/EV-DO REV.0: UL 153.6kbps DL 2.4Mbps | |||
| CDMA2000 1X/EV-DO REV.A: UL 1.8Mbps DL 3.1Mbps | |||
| Payment | Safety Cerificate | China Unionpay Pin-input Safety Certificate | |
| Magcard | Triple track (tracks 1,2,3),bi-directional;read life time;1 million times;ISO7811 amplitude;30%-200%;read rate:5-254cm/s | ||
| IC card | Compatible with ISO 7816-3 and EMV 4.2 pay standards;Certified to UnionPay PBOC 2.0 | ||
| Contactless IC card | ISO/IEC 14443 A/MIFRARE approved;Support ISO/IEC 14443 B read-write; | ||
| MIFARE Mini,MIFARE 1K,MIFARE 4K encryption;ISO/IEC 14443A Communication;212 kBd,424 kBd,848 kBd; | |||
| Certified to Unionpay qPBOC 2.0 | |||
| Options | Printer | Printing speed: 75mm/s; | |
| Printing resolution: 8 dot/mm; | |||
| Printing life time: 100M pulses, 50KM; | |||
| Paper Roll Width: 58mm; | |||
| Printing Width: 48mm | |||
| Bluetooth | Bluetooth Class 2.1 + EDR | ||
| Camera | Front:facing camera:1.3 mega piexls;rear camera:5.0 mega piexls:automatic focus | ||
| GPS | Support A-GPS | ||
| RFID | Customizable, support: | ||
| LF: ISO11784/11785; | |||
| HF: ISO15693, ISO14443A/B, SRI513/SRI4K | |||
| UHF: ISO180006B (EPC C1 Gen1), ISO18000-6C | |||
| User Environment |
Operating Temperature | -10°C to +50°C | |
| Storage Temperature | -20°C to +60°C | ||
| Humidity | 5% to 95% non condensing (Condensation Resistant Configurations Available) | ||
| Drop | Multiple drops to concrete: 3ft./1.0m across the operating temperature range | ||
| Peripherals and Accessories |
Other Acceseries | Universal battery charger, USB Cradle Cable | |
| Regulatory | Product Certification | CCC, CE | |
| Electrical Safety | Certified to UL60950, CSA C22.2 No.6050, EN60950/IEC950 | ||
| Laser Safety | IEC Class 2/FDA Class II, in accordance with IEC60825-/EN60825-1 | ||
| Warranty | 12 months (except for accessories) | ||
