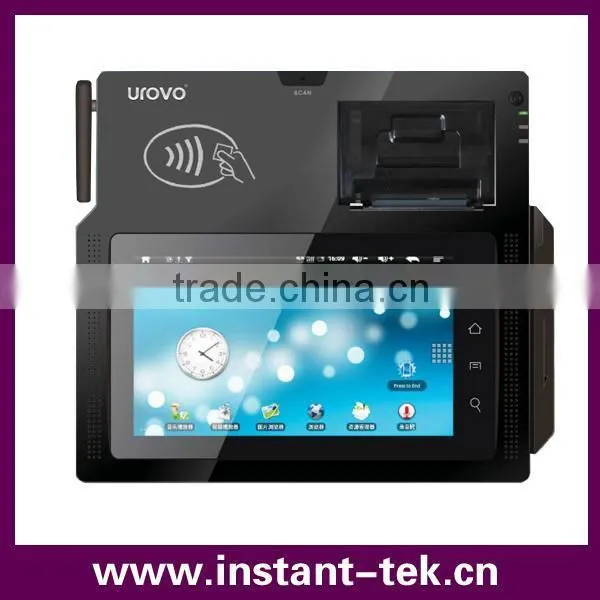

Intelligent Tablet Payment Terminal i9300
E-Payment / Data Collection & Access
Intelligent Tablet / All-in-one Terminal
JK-i9300 is an all-in-one tablet payment terminal, integrated with all functions of traditional handheld POS and tablet PC. Based on Android platform, JK-i9300 is specially designed for electronic payment application of retail and business field. It supports bar code scanning, RFID reading and wireless communication to achieve more efficient, convenient, secure terminal solutions in a variety of industries; it also supports E-Payment function of multiple magnetic cards, IC card and inductive cards, to confirm the real-time and safety financial services of such pay application.
Professional Financial Transaction Terminal
Support 3 E-payment methods: functions for magnetic stripe bank cards, financial IC card and contactless cards (RFID)
Excellent Functions and User Experience
1GHz High-performance CPU, 7-inch high-definition capacitance screen, support multi-point touch and large storage capacity; integrated with thermal printer, bar code reader and RFID module, to better meet the retail industries application requirement.
High Security
Conform to multiple payment standards and certifications. According to PCI safety standard design, JK-i9300 has successfully passed the conducted PIN input device security assessment testing of Union Pay Card acceptance terminal to ensure the safety of financial transaction.
Multiple Data Communication
Support GPRS/GSM, WiFI, Bluetooth and 3G network (optional: WCDMA HSDPA / CDMA2000 1x EV-DO).
Flexible External Interface
Provide password keyboard conforming to the UnionPay standard and HDMI interface; support development interface of SDK to satisfy flexible customization in various applications.
Application Fields:
Transportation & Logistics / Garment & Chain Store / Retail Market / Retain & Wholesale / International Trade / Healthcare & Hospitality / E-commerce / Production Management / Government Law Enforcement / Manufacturing
| JK-i9300 Specification | |||
| Physical Characteristics |
Dimentions | 230mm*200mm*60mm | |
| Weight | 550g | ||
| Buttons | Mechanical buttons: Power key | ||
| Capactive keypad: MENU/HOME/ESC/SCAN | |||
| Performance Characteristics |
O.S. | Android 2.3 (multi-language) | |
| CPU | 1GHz | ||
| Display | 7-inch TFT LCD display,800*480 pixels,Capacitance screen (thickness not less than 1.4 mm),support multi-point touch | ||
| Memory | ROM | NAND/INAND Flash 512M-2G | |
| RAM | DDR2 512M | ||
| Barcode Scanner | 2D CMOS (Option) | Decode Capability |
1D Symbologies: UPC/EAN,Bookland EAN,UCC Coupon Code,ESSN EAN,CODE 39,CODE 128,GS1-128,ISBT 128,Trioptic Code 39,CODABAR,MSI,Interleaved 2/5,Discrete 2/5,Chinese 2/5,Korean3/5,Matrix 2/5, CODE 32,CODE 93,CODE 11,Inverse 1D,GS1 DataBar,Composite Codes |
| 2D Symbologies: PDF417,MicroPDF417,Data Matrix,Data Matrix inverse,MaxiCode,QR Code,Aztec,Aztec Inverse | |||
| Postal Codes: U.S.Postnet,U.S.Planet,U.K.Postal,Japan Postal,Australian Postal,Netherlands KIX Code,USPS 4CB/One Code/Intelligent Mail,UPU FICS Postal | |||
| Radio Communication |
Wi-Fi WLAN | WIFI 802.11b/g Frequency range: 54MB/sec | |
| Bluetooth | Bluetooth Class 2.1 | ||
| GSM/GPRS | 900MHz/1800MHz | ||
| 3G (Optional) | WCDMA HSDPA / CDMA2000 1x EV-DO | ||
| Wired Network | Support RJ45 interface | ||
| Payment Function | Magcard | Conform to the ISO7811,support triple track (track 1,2,3),bi-directional | |
| IC card | Compatible with ISO7816 standard | ||
| Contactless card (RFID) |
Support 14443 A/14443 B approved | ||
| Frequency: 10MHz-20MHz;Reading access time:less than 300 milliseconds | |||
| PSAM | Conform to ISO7816 standard x 3 | ||
| Printer | 58 mm printing paper,203 dpi / 8 dot/mm; | ||
| Printing speed:50-70 mm/s,support barcode printing. | |||
| Power Supply | Emergency Battery (optional) |
1000mAh (7.4V) removable lithium battery | |
| Endurance Ability | Dormancy standby time:100 hours | ||
| Power supply time:4 hours | |||
| Battery charging time:4 hours | |||
| User Environment |
Operating Temperature | -10°C to +50°C | |
| Storage Temperature | -20°C to +60°C | ||
| Operating Humidity | 30%-85% | ||
| Storage Humidity | 10%-90% | ||
| Peripherals and Accessories |
PIN Pads | Support password keyboard interface (RJ11, Serial port)x1,conforms to the UnionPay standard | |
| Audio | Headset/Microphoe:3.5 mm socket,2 zone | ||
| Loudspeaker (2W)x1 | |||
| Expansion | Support Micro SD/TF up to 32G | ||
| USB | USB 2.0;MINI USB (device)x1,USB (host)x1 | ||
| Charging | External DC 9V | ||
| Other Output | Serial port (RJ11) x1,HDMI x1 | ||
| Regulatory | Product Certification | CCC, CE | |
| Electrical Safety | Certified to UL60950, CSA C22.2 No.6050, EN60950/IEC950 | ||
| Laser Safety | IEC Class 2/FDA Class II, in accordance with IEC60825-/EN60825-1 | ||
| Warranty | 12 months (except for accessories) | ||
