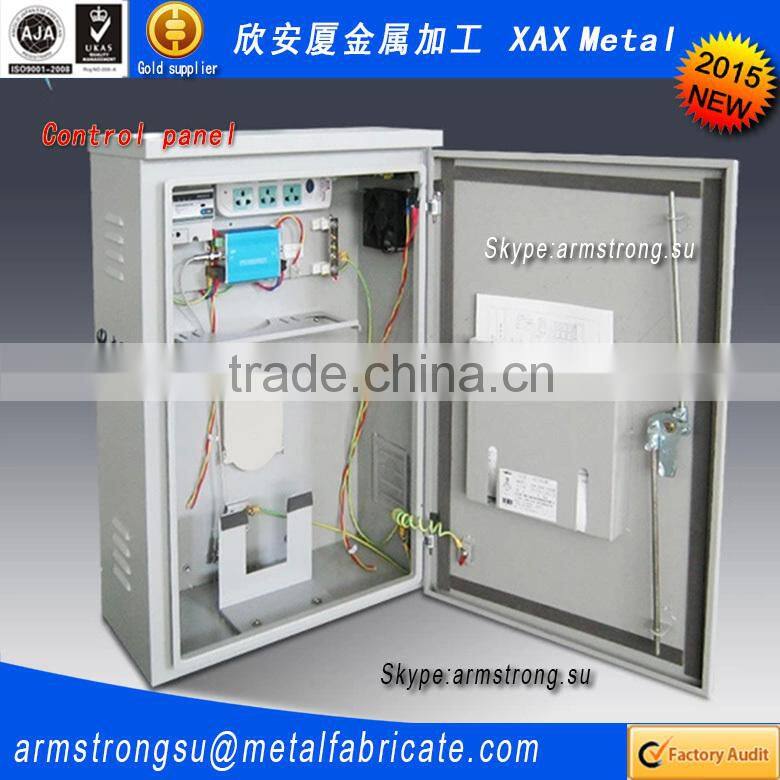

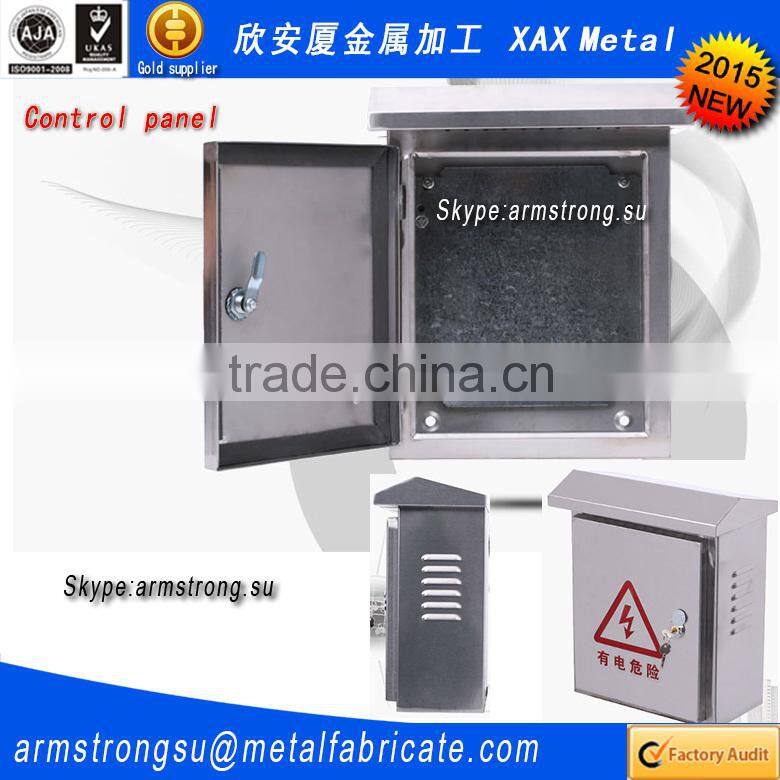

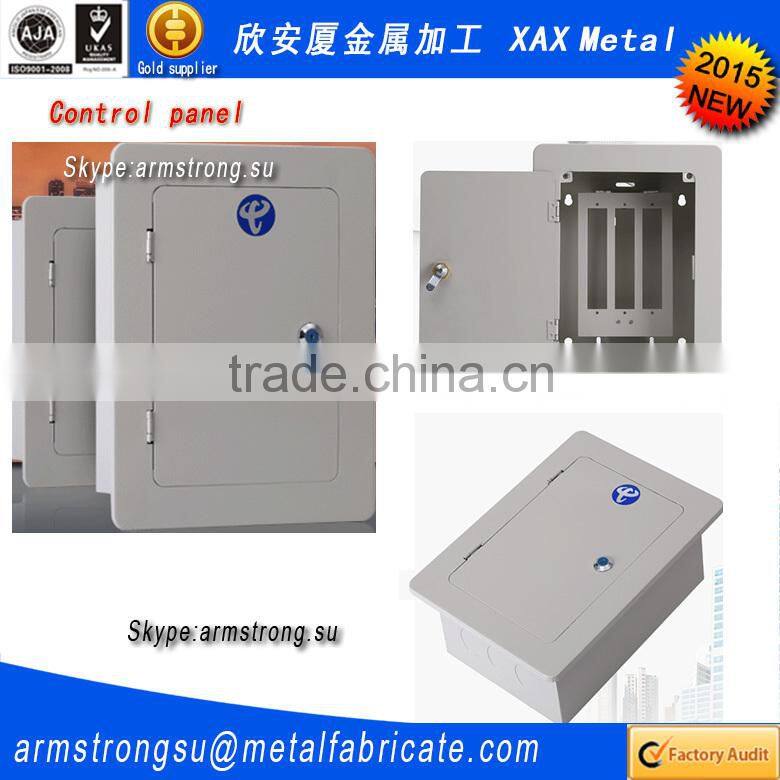

Help CenterXAX021CP Dubai Wholesale Market Reseller Account Special Control Panel Cccam / Mgcamd
Related Products
-
XAX020CP Novelty Items for Sell Wellhead Control Panel Buy Chinese Products OnlineUS$ 10 - 100MOQ: 1 Unit -
XAX019CP Top Selling Products Car Air Conditioner Control Panel Supplier onUS$ 10 - 100MOQ: 1 Unit
-
XAX028MB Best Things to Sell Metal Box for Electronic Top Selling Products in Quality ChoiceUS$ 1 - 100MOQ: 10 Units
-
XAX027MB New Products 2015 Technology Metal Trunk Box China Market in DubaiUS$ 1 - 100MOQ: 10 Units
-
XAX026CP Auto Air Conditioning Control Panel China Supplier WholesalesUS$ 10 - 100MOQ: 1 Unit
Advantage

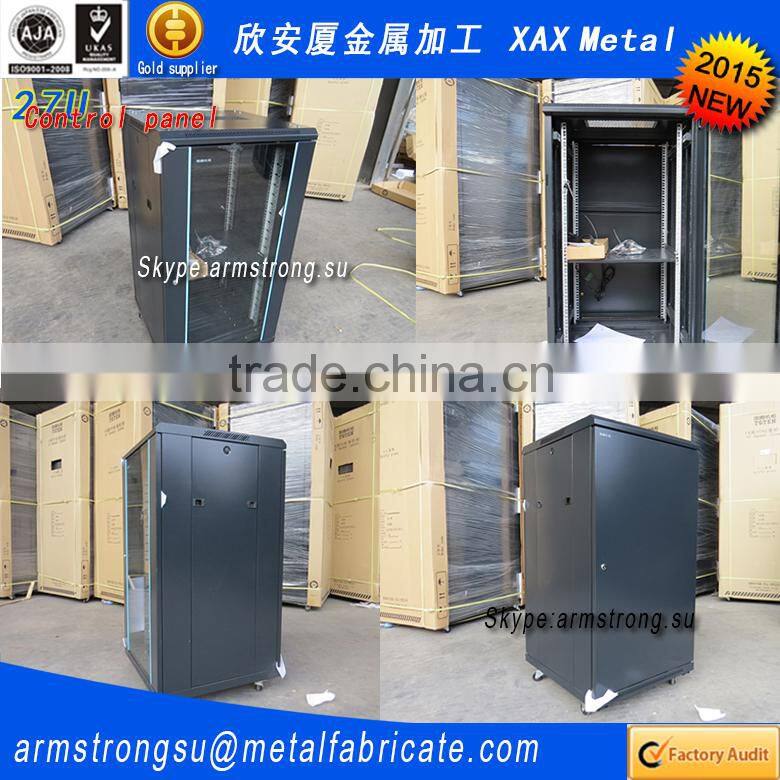

1). Main structure made of Nine Bend Profile Cold Roll Forming. Provide maximum loading over 2000kg.
2). White transparent tempered glass front door, black textured screen printing glass on both sides
3). 71% Ventilated Rate of the High-Density Vented Door, 2 round ventilation holes on the top and bottom;
4). Powder coating RAL7035;
5). 4 wheels and hanging ring available
6). Heavy Duty Casters and Leveling Feet, the maximum loading of 800KG (with feet);
7). Flexible and multiple channel alignment on the top and bottom cover, the bottom line hole size can be adjustable
8). Optional mounting base, to fix the cabinet, bottom line, bottom ventilation, rat proof
9). 4 Removable side panels and the rear doors
10). Four post, depth-adjustable rack system with 19" mounts and square holes
11). Perforated roof with cable entry access in the rear
12). Perforated front and rear locking doors (easily removable)
13). Complete optional accessories available
14). Edit by Armstrong Su. Skype:Armstrong.su
Main future
1). Capacity: 24u
2). Dimensions (W x D x H): Check the table below
3). Material: SPCC cold rolled steel
4). Thickness: Mounting profile 0.08" (2.0mm), mounting angle 0.06" (1.5mm), others 0.05" (1.2mm)
5). Surface Finish: Degreasing, pickling, phosphoric, powder coated
6). Degree of Protection:IP20
7). Loading Capacity: 1670lbs
8). Main Parts: Top cover 1 piece, mounting profile 4 pieces, mounting angle 6 pieces, spring lock 2 pieces, key 4 pieces, vented front door 1 piece, heavy duty caster 4 pieces, frame 2 pieces, side panel 2 pieces, bottom panel 1 piece, M6 B-head screw 40 pieces, M6 square nut 40 pieces, Allen wrench 1 piece, M12 adjustable feet 4 pieces
| W*D*H (mm) | W*D*H (inch) | Capacity (U) |
| 600*600*988 | 23.62*23.62*38.9 Inches | 18U |
| 600*600*988 | 23.62*23.62*38.9 Inches | |
| 600*1000*988 | 23.62*39.37*38.9 Inches | |
| 600*600*1166 | 23.62*23.62*45.91 Inches | 22U |
| 600*800*1166 | 23.62*31.5*45.91 Inches | |
| 600*1000*1166 | 23.62*39.37*45.91 Inches | |
| 600*600*1388 | 23.62*23.62*54.65 Inches | 27U |
| 600*800*1388 | 23.62*31.5*54.65 Inches | |
| 600*1000*1388 | 23.62*39.37*54.65 Inches | |
| 600*600*1610 | 23.62*23.62*63.39 Inches | 32U |
| 600*800*1610 | 23.62*31.5*63.39 Inches | |
| 600*900*1610 | 23.62*35.43*63.39 Inches | |
| 600*1000*1610 | 23.62*39.37*63.39 Inches | |
| 600*600*1833 | 23.62*23.62*72.17 Inches | 37U |
| 600*800*1833 | 23.62*31.5*72.17 Inches | |
| 600*900*1833 | 23.62*35.43*72.17 Inches | |
| 600*1000*1833 | 23.62*39.37*72.17 Inches | |
| 600*600*2055 | 23.62*23.62*80.91 Inches | 42U |
| 600*800*2055 | 23.62*31.5*80.91 Inches | |
| 600*900*2055 | 23.62*35.43*80.91 Inches | |
| 600*1000*2055 | 23.62*39.37*80.91 Inches | |
| 600*1200*2055 | 23.62*47.24*80.91 Inches | |
| 600*600*2277 | 23.62*23.62*89.65 Inches | 47U |
| 600*800*2277 | 23.62*31.5*89.65 Inches | |
| 600*900*2277 | 23.62*35.43*89.65 Inches | |
| 600*1000*2277 | 23.62*39.37*89.65 Inches | |
| 600*1200*2277 | 23.62*47.24*89.65 Inches | |
| 800*600*2055 | 31.5*23.62*80.91 Inches | 42U |
| 800*800*2055 | 31.5*31.5*80.91 Inches | |
| 800*900*2055 | 31.5*35.43*80.91 Inches | |
| 800*1000*2055 | 31.5*39.37*80.91 Inches | |
| 800*1200*2055 | 31.5*47.24*80.91 Inches | |
| 800*600*2277 | 31.5*23.62*89.65 Inches | 47U |
| 800*800*2277 | 31.5*31.5*89.65 Inches | |
| 800*900*2277 | 31.5*35.43*89.65 Inches | |
| 800*1000*2277 | 31.5*39.37*89.65 Inches |
Xiamen XinAnXia Metal Products Co., Ltd., is the one of the highest efficient factory, we focus on the on time delivery with good quality product, although we are not biggest factory in China. We are is ready to undertake any machinery parts processing from customers at home and abroad. Moreover, we have been doing deeply business cooperation with American and European customers. Our company upholds the approaches of "Honesty first, customer foremost, Management scientifically and Pursuance excellently". Highlighting the theory of "Details Determine Success" corporate culture, we will try our best to make our company become a modern corporation
For more information contact armstrongsu @metalfabricate.com
Phone:+86-13400620992
