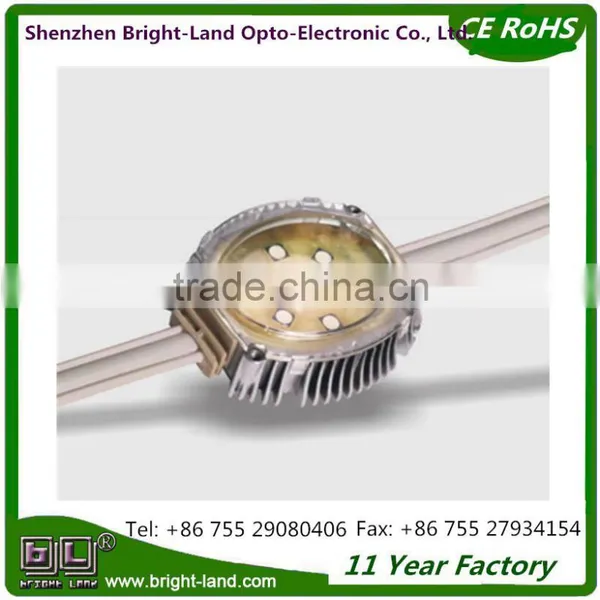

Smart DC15V Single 2.7W RGBW Full Color Dmx Led Pixel Point Light

Name: Smart DC15V Single 2.7W RGBW Full Color Dmx Led Pixel Point Light
Brand: Bright-land
Availability: InStock

FOB Price

US$ 2.5 - 3.5 / Piece

500 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T D/P D/A Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD5050	Input Voltage(V)	DC15V
Lamp Power	2.7	Color Temperature(CCT)	Other, RGB
Working Temperature(℃)	-20, 50	Working Lifetime(Hour)	50000
Lamp Body Material	ABS	IP Rating	IP66
Certification	CE	Emitting Color	RGB
Place of Origin	Guangdong, China	Brand Name	Bright-land
Model Number	BL-SMD9-D55

Product Description

Smart DC15V single 2.7W RGBW full color dmx led pixel point light

Product Description

BL-SMD9-D55 full color series are a full-color LED series string LED pixel, which are designed for outdoor landscape lighting . Each pixel is a separate lighting pixel, and each pixel can realize 256 grades gray scale changing. They can be used for indoor and outdoor applications, such as building facade, shopping mall, celebration ceremony or party,Disco, NIGHT CLUB decoration. Customized pixel pitch, and easy installation.

Piont light model choose:

Model	Source	Color	Voltage	Power	Beam	Light intensity
BL-SMD9-D55	9pcs SMD5050 LEDs	Full RGB	DC15V	2.7W	120	22.5cd
BL-SMD9-D55-RGBW	6+3pcs SMD5050 LEDs	RGBW	DC15V	2.7W	120	34.5cd
BL-SMD6-D505	6pcs SMD5050 LEDs	Full RGB	DC15V	1.8W	120	15cd

More Product Feature:

- RGBW four primary color design,The newest generation technology: DMX512 parallel bus design

- Clip on-off style connection and anti- pull connection without connector design

- High thermal conductivity transformer and full-sealed filling waterproof method by German imported glue

- Outdoor lighting protection and electrostatic discharge design

- Flexible design ensures 4 kinds of mounting way

- Off-line & on-line control

1. Host controller should connect with Data adpator and slave controller. Working voltage for controllers are
AC220V, the voltage for data adaptor is the same as the lighting fixture.

2. each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 200
meters ultra-long haul transmission.

3. The CAT-5 e. cable distance should be within 150 meters between host controller and slave controller,
between slave controllers and switch, etc. The distance from first lighting fixture to data adpator should
be within 2 meters.

4. the maximum spacing of not more than 5 meters, more than the need to add a signal amplifier.

Control Systems

LED point light Control System:

Method 1: Off-line

Method 2: Off-line

Method 3 : On-line

Installation Method

LED Point light Installation Method:

Product effect Pic:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5 - 7 days, mass production time needs 15 working days for order quantity.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 50pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. We can offer free charge Laser Engraving service. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
