Home > Products > Metal waterproof connectors > metal panel socket and cable female waterproof

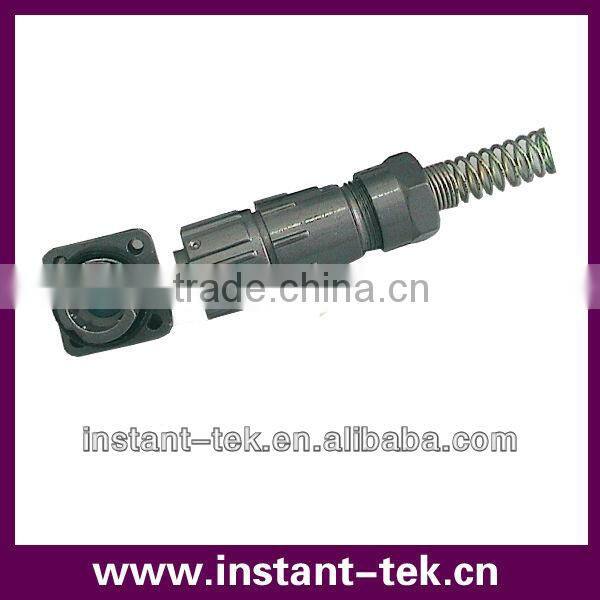

metal panel socket and cable female waterproof
- 20000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | instant | Model Number: | FQ |
Type: | Other, FQ | Application: | Automotive | Gender: | Other, male and female |
Product Description
Specifications
our company's male and female FQ connector is widely used in industry,LED,electricfields with its powerful function.
male and female FQ connector is designed and produced by Shenzhen Instantware IT Co., Ltd. waterproof . It widely used in new energy, LED, industrial control product, automotive, security product etc. outdoor electronic product. It is high performance and competitive price.
Description | Details | Code |
1. Connector Size | JKGL-FQ14 | FQ14 |
2. Current Rating | 5-10A | 5-10 |
3. Number of Contacts | 3,4,5,6,10,19,26 | |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | A |
8. Mating Style | Screw | S |
9. Backs hell | Straight | ST |
10. Waterproof Rating | IP67 | 7 |
Material: Insulator: UV resistent, Nylon+GFUL94V0 Conntacts: Brass, Gold plated RoHS CE Housing: Aluminum alloy Sealing: Silicone RoHS CE | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP67, 300mm water half an hour Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
|
