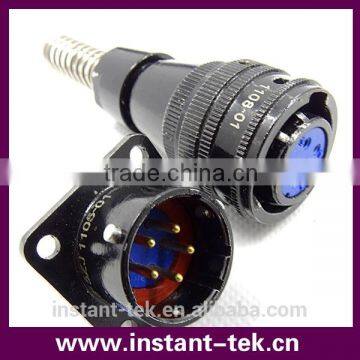

FQ14 multi pin male bulkhead electrical waterproof connector
- 50000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | INST | |
| Model Number | FQ Series | Type | RCA | |
| Application | Power | Gender | Other, Male and Female |
Product Description
FQ14 multi pin male bulkhead electrical waterproof connector
Description | Details | Code |
1. Connector Size | INST-FQ14 | FQ14 |
2. Current Rating | 5-10A | 5-10 |
3. Number of Contacts | 2,3,4,5,6,7,8,9,10 | 2-10 |
4. Connector Type | Without SR | B |
5. Connector Gender | Male,Female | M,F |
6. Contact Gender | Male,Female | M,F |
7. Assembly Style | Field Installation | A |
8. Mating Style | Screw | S |
9. Backs Shell | Straight | ST |
10. Waterproof Rating | IP67 | 7 |
Material: Insulator: UV resistent, Nylon+GFUL94V0 Contacts: Brass, Gold plated RoHS CE Housing: Aluminum alloy Sealing: Silicone RoHS CE | ||
Property : Contact Resistance: <5mΩ Insulation Resistance: ≥500 MΩ at DC500V Breakdown Voltage: ≥2.5kV normal, 1.0kV water Temperature Rating: -45°C~+105°C Protection Ration: IP67, 300mm water half an hour Durability: 3K plug/Unplug Cycles
| ||
It is widely used in ·New energy ·LED ·Industrial control product ·Automotive ·Security product ·Power Supply ·Electric Vehicle ·Solar Energy ·IPC ·Various Mold It is high performance and competitive price. Welcome OEM/ODM.
| ||
Company profile:
INSTANTWARE is now manufacturing the whole range of ,M8,M12,M16,M23 7/8"waterproof connector and normalized Din 43650 rectangular connectors type A,B,C, both to be cabled and molded,with or without electrinic components.The connection products are widely sed in field bus components,Ethernet,solenoid valves,pressure sitches,motors-control,protoelectric barries,flow monitoring devices,proximity switches,and sensors in the hydraulic,pneumatic and automation industries.
Iastantware as a total-solution provider,also produces cable harness for automative diagnostic service,industrial connectivity,medical equipments,HVAC climate control technologies.The products have been world-widely exported to the markets as in:Germany,Sweden,Denmark,Australia,Dutchland,UK,Spain,Italy,Irael,USA,Canada and Asia.
Welcme to send us enquiry and we will give you prompt reply and make satisfaction based on your requirements,and OEM is also offered!
FQ14 multi pin male bulkhead electrical waterproof connector
FQ14 multi pin male bulkhead electrical waterproof connector
FQ14 multi pin male bulkhead electrical waterproof connector
