Product Details
Place of Origin: | China | Brand Name: | chinaskyline | Model Number: | SK gsm16-64 |
Type: | VoIP Gateway |
Product Description
16 ports gsm gateway voip gateway 16-64,telecom equipment;goip 16-64 gsm gateway sk
- TECHNICAL PARAMETER
Features | Relay Encryption Solution(Fix IP blocking) | |||
Bandwidth Optimization | ||||
Support SIM Rotating(one channel including 4 SIM cards) | ||||
Changing SIM automatically(Fix SIM blocking) | ||||
Base Station Switch | ||||
SIM Hot Plugging | ||||
Remote Control(Access your device system anywhere) | ||||
Multi-Codec Support(G729 a/b/e,G723,G711 A/U law,iLBC) | ||||
SMS Receive & Send | ||||
Upgrade online or local | ||||
Network | IPv4,TCP,UDP | |||
DHCP, DNS, PPPoE | ||||
Telnet, STUN | ||||
HTTP,FTP,TFTP,ARP,NTP | ||||
Encryption | ||||
WAN,LAN,USB | ||||
SIM Frequency | GSM:850/900/1800/1900MHz CDMA:450/800/1900MHz WCDMA:850/900/1800/1900+2100MHz | |||
Software | Guide Initialization Web | |||
Call Forwarding | ||||
PIN Code Management | ||||
AT, SMS,USSD | ||||
Personification | ||||
Caller Anonymous | ||||
Avoid FAS | ||||
High-Q ASR,ACD | ||||
Echo/Silence control | ||||
VOL control | ||||
RTP/RTCP RFC3551 | ||||
SIP V2.0 RFC3261 | ||||
Qos | ||||
IVR | ||||
Black/White List | ||||
Linux Operation(Safe & Stable) | ||||
Hardware | Cooling Fans | |||
Power Input:100-240V~50-60Hz 1.2A MAX Power Output:12V/5A | ||||
RJ45&USB Cable support | ||||
16 Antennas |
Working Temperature:0~+50°C |
Working Moisture: 10 ~ 90 % RH |
HTTP Web Browser: Firefox/Chrome /IE/Opera |
16 Channel 64 SIM cards/16 Channel 16 SIM cards |
USB Serial Port , Baudrate:115200,8,n,1,n § View |

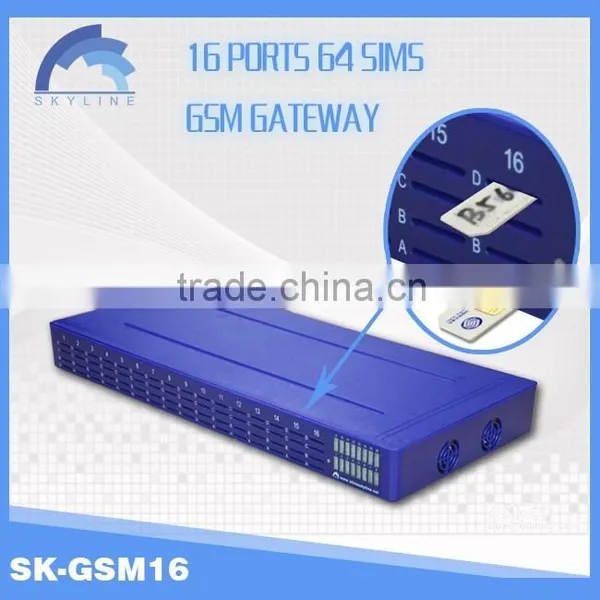

1, SIM slots: The 16/64 GoIP device can read 64 SIMs totally. It means the gateway can support 16 calls concurrently (16 channels), and each channel can read 4 SIMs named A,B,C,D (This SIMs will rotate to avoid blocking).
2, Channel number.
3, Channel LED: One channel include 4 LEDs for ABCD SIMs.
4, Power LED.
5, RESET: Restore the factory default (Press the button and hold on for more than 5s).
6, Power connector.
Input power: 100-240V ~ 50-60Hz 1.2A MAX
Output power: 12V/5A
7, LAN: Ethernet port.
100M/10M Adaptive
8, WAN: Ethernet port.
100M/10M Adaptive
The default WAN IP is 192.168.1.10 .
9, CONSOLE: USB serial port.
Baud rate: 115200, 8.n.1.n
10, Antenna connector.
11, Cooling fans: Support 2 mode – ON & Automatic (When Control center detect the CPU too hot, fans will be ON, otherwise it will OFF).
Working Temperature: 0 ~ +50°C
Working Moisture: 10 ~ 90 % RH
Quick Start
- § Insert SIM cards
Connect Device
connect the power adapter to keep power on , connect a RJ45 network cable from WAN port to a route
Lan port ( the router should be connected to internet).
1, route :A device used for visiting internet, such as TP-Link, Tenda, D-Link
Check Device IP
The Goip WAN default IP is 192.168.1.10
1,if the route Lan IP is 192.168.1.1, the Goip default IP will be OK .
2,If the router LAN IP is not 192.168.1.1 , for example 192.168.0.1,the GOIP default IP should be changed
- § Log Into The Management Web
After retrieving the IP address, open browser (IE, Chrome, FireFox, Opera …), input the IP address and the login web will return. The username & password will be needed to log into. Default Account is root, password is root.
§ Connect To Network
Phone Number: (same with SIP id or keep it empty)
Account: (The SIP id created in the SIP server)
Password: (The SIP password created in the SIP server)
SIP Server: (The SIP server IP address or domain name)
SIP Sever Port: (The SIP server SIP port, default port is 5060)
How To
- § How to change GoIP WAN default IP?
If the router’s LAN IP segment is not same with GoIP WAN segment (192.168.1.10), need modify GoIP default IP.
First, connect a computer to the same router with GoIP, add the GoIP IP segment in the computer.
Save it, then input “192.168.1.10” in the browser, log into the page and change the WAN IP to be compatible with the router.
