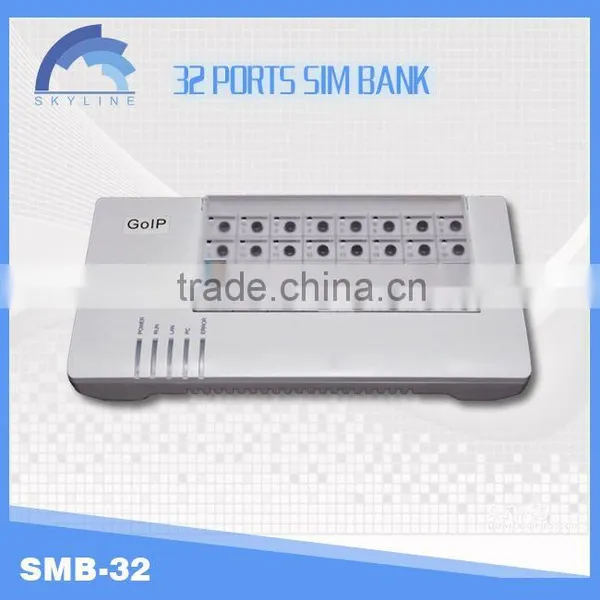

Help CenterHot Sales !! 32 Sim Bank /adsl Voip Modem for Server Gsm Gateway
Related Products
-
Hot Sales !! 32 Sim Bank /sim Box Gsm Voip Gateway for Server Gsm GatewayUS$ 550 - 550.1MOQ: 1 Piece -
Hot Sales !! 32 Sim Bank /wireless Communications Network Equipment for Server Gsm GatewayUS$ 550 - 550.1MOQ: 1 Piece
-
Hot Sales !! 32 Sim Bank /fixed Phone Gsm for Server Gsm GatewayUS$ 550 - 550.1MOQ: 1 Piece
-
Sim BankUS$ 750 - 1,750.01MOQ: 1 Piece
-
Goip 128/256 Sim Card Voip Gateway With Remote Control Function Sim Bank Sim Box Gsm Gateway Call Termination With Sim BankUS$ 1,800 - 2,000MOQ: 1 Piece
Specifications
adsl voip modem1.32 ports Gsm sim box
2.support SIP and H.323 Protocol
3.remote and centralized management of sim card
Hot sales !! 32 sim bank /adsl voip modem for server
gsm gateway.
What is SIM?
IC securely stores the service-subscriber key (IMSI)
Encrypted communications for protection
SIM cards are inserted in mobile devices
What is the Remote SIM ?
Remote SIM separates SIM cards and mobile devices
SIM cards are now inserted in SIM Bank
SIM Emulators replaces SIM cards to communicate with mobile devices
Advantages of Remote SIM:
Remote and Centralized Management of SIM cards
Dynamic allocation of SIM cards
No need to replace / recharge SIM cards on-site
Hot swap of SIM Cards with no service interruptions
Example: GoIP with Remote SIM support will no longer require on-site SIM Card replacement or recharge. Management of a group of GoIPs be achieved remotely, efficiently, and cost-effectively.
key features:
Storage array for 32 SIM cards
Hot swap
Standalone operation to support up to 32 independent SIM connections
Free SIM Server for management of SIM Banks and SIM cards (> 10K SIM connections)
DDNS
Basic function:
Support both On-board SIM slots and built-in Remote SIM Emulator
"PARK" to SIM Bank RS32
"PARK" to SIM Server
SIM card reallocation without power interruption
4-Channel GoIP (GoIP4) available
8-Channel GoIP (GoIP8) available
Designed to work with most GSM devices with SIM card slots
Installed in the existing SIM card slots so that SIM cards are installed in SIM Bank RS32
4-Port SIM Card Emulator available in Q4, 2011
Enhanced function:
Free Server to manage SIM Banks and Remote SIM devices
Management of over 10K SIM cards
Re-allocation of SIM cards among Remote SIM devices
SIM territory concept
Programmable schedules for SIM card re-allocation
Seamless re-allocation without call interruptions
Dear customers
There has three system architectures,you may like
A:System architecture(Independent SIM Bank):
As shown in the above figure, several GoIP devices (up to 32 ways) be
connected to the SMB32 through Internet. The SIM cards installed with
the devices are all integrated to the SMB32 to be controlled and scheduled
by the latter. (SIM Bank mode: server mode)
B:System architecture(through SIM Bank):
More than 10,000 SIM cards be collectively scheduled and managed via
the SIM Server. The planned tasks are allocated by the SIM Server (SIM
Bank mode: client mode)
C:Exchange logic(through SIM Bank):
| FAQ | |||||||||
| Question | Answer | ||||||||
| 1 | What is main funtion of the 16 ports terminal gsm voip gateway GoIP? | For call terminal | |||||||
| 2 | What is the software can be supported by GoIP? | VOS,VPS,VoIP switch,3CX,P·B·Xes,free PBX,MOR | |||||||
| 3 | What is the hardware can be supported by GoIP? | IPPBX and so on | |||||||
| 4 | What is the bandwidth requested by GoIP? | It is up to your voice code.G723 need 23kbps per channel,G729 need 34kbps, G711 need 90 kbps | |||||||
| 5 | Is there any 32 port or 64 port GSM VOIP GATEWAY? | Each gsm port need 30-45 kpbs upload,and normally for adsl's upload bandwith is 512 kpbs. So max is 16 port . | |||||||
| 6 | What is the differnce between the new GoIP(antena bulit in)and the previous GoIP? | The function is the same with the previous GoIP.The only difference is antena. New GoIP antena is bulit in the board. | |||||||
| 7 | What is the communication network can be supported by GoIP? | Only GSM | |||||||
| 8 | How about our service? | Pls don't worry.If you have some problem,our engineer will give u help at the first time | |||||||
| 10 | What is our main express shipment? | DHL,UPS,FEDEX,TNT,EMS(can send to all over the world) | |||||||
NOTES
>We provide strong tech support about VOIP server and A-Z termination. (6 days*12 hours)
>We can help you rent a VoIP server in USA.
>We can provide copy version VOS.
>We can install Relay server, SMS server,SMB server for you.
(for free)
>We can offer voip terminal guide.
>We may need your termina routes.
>We offer full tech support untill your gateway runs.
Any ENQUIRY, contact me freely
