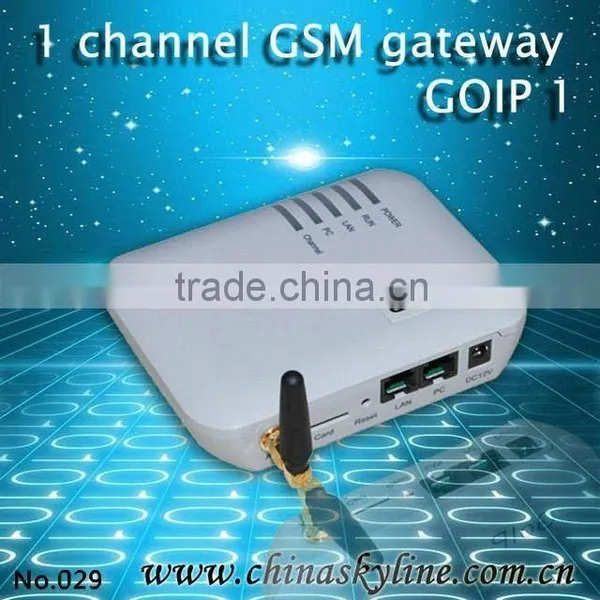

1 goip gsm gateway change IMEI/sim card emulator
Description
The GSM Fixed Wireless Terminal 1 ports Gateway GoIP-1 is a 1 SIM Card Broadband Phone Gateway that had been developed by CHINASKYLINE Ltd. GoIP-1 SIM Card Broadband Phone Gateway is a new product that connect the GSM and the VOIP seamlessly. To GoIP-1 what is installed on the Mobile SIM Card, you can register the GSM telephone on the VoIP soft switch. SIP and H.323 agreement are built in the GoIP-1 and configured flexible. Caller ID can be seen by using SIP. Flexible routing can meet the need of all kinds of call forwarding; even more special is that GoIP-1 support multi-device group, it can be easily combined into arbitrary number of channels of Large Gateway Group.
Key Features
Multiple GoIP1 grouping mode
Provide one cellular channels for IP-PBX
Open Standard VoIP Protocols (ITU H.323 V4 and IETF SIP V2)
Single or Multiple Server Registrations
Two 10/100 Ethernet circuits connect to the LAN and an additional device
GSM module for making GSM calls
Speech quality ensured by QoS at the Ethernet and IP layers and comprehensive jitter buffer
VLAN and QoS support
NAT Transversal and Router functions
Voice prompts, HTTP Web, Auto Provision support for configuration and updates
Highly stable embedded Linux operating system in high performance ARM 9 Processor
Basic Features
LEDs for Power, Ready, Status, WAN, PC, GSM
Call forward from GSM to VoIP and VoIP to GSM
Dial in mode or dial out mode only
Dial Plan
Password protection for both GSM dial in or dial out
Retransmit GSM Caller ID to VoIP terminal
Enhanced Features
Dynamic selection of codec
Advanced jitter buffer Automatic traversal of NAT and firewall
VLAN / Qos
Echo cancellation for Speakerphone
Comfort noise generation (CNG)
Voice activity detection (VAD)
Auto provisioning (requires auto provisioning server)
On line firmware upgrade
Multi-language support: English and Chinese
Hardware Specifications
Processor: ARM9E 133MHz
DSP: VPDSP101 196MHz
Memory: RAM 16MB/ Flash 4MB
GSM Module: Type: 850MHz, 900MHz, 1800MHz, 1900MHz
Power: Input AC100V ~ 240V, output DC12V/2A +-10%
Power consumption: 32W maximum
Network card: 100/10Base-T x2
LED: Operation and lines light
GSM Passway:16
Operating temperature: 10°C to 40°C (32°F to 104°F)
Storage temperature: 0°C to 50°C (32°F to 122°F)
Working Humidity: 40% ~ 90% Not congealed
Weight: 1203 g (1 lb) (Including AC/DC Adapter)
Warranty: one year
