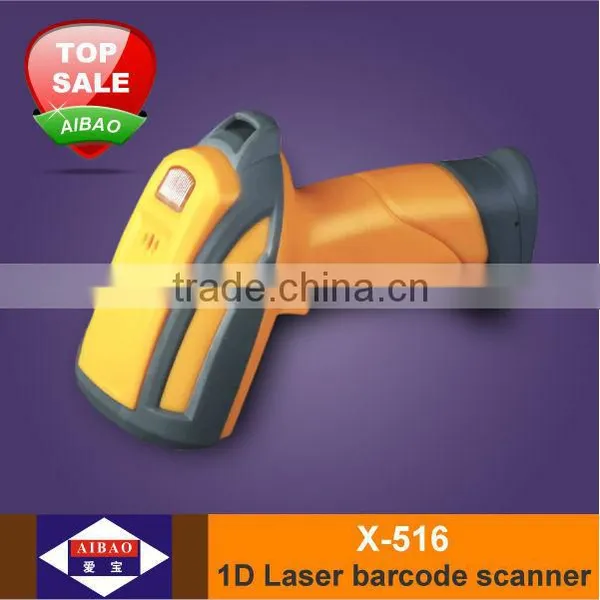

Laser Barcode Scanner with wire, X-516

Specifications

Laser Barcode Scanner with wire, X-516

RECOMMEND! HIGHER SPEED OF SCANNING!

Technical parameters:

• Input voltage: 5V DC ± 5%
• Power: 258mW;    Work; 100mW
• Task state: 380mW (maximum peak)
• Source: 650nm visible laser diode
• Way of use: Handheld
• Current: 60mA;    Work: 30mW;    Task state: 100mW (maximum peak)
• Electrostatic discharge: 15kV electrostatic discharge
• Laser grade: state secondary laser safety standard
• Depth of field: 2 to 9cm (0.1mm bar width) and 3 to 40cm(0.3mm bar width)
• Scan width: 5 to 30cm
• Decode speed: 120 times/s
• Readable bar width: minimum 0.1mm (4miles)
• Decode capacity: UPC-A, UPC-E, EAN-13, ISBN/ISSN, Code 39, Codabar, interleaved 2 of 5 Code
• Discrete 2 of 5, matrix 25 code, code 128, code11, MSI/PIESSEY, UK/PLES, SEY, UCC/EAN128 code, China post code and more
• Notice method Indicator: double color LED and buzzer
• System interface: IBM PS/2 keyboard, IBM PC/XT/AT, RS-232 serial interface
• Standard 2.0 USB port
• Trigger method: operating manual, continuous scan automatically and infrared scanning automatically and holder scanning automatically (selectable)
• Product dimensions: 105*70*160mm (L x W x H)
• Weight: 135g
• Electric cable standard: straight line 2m
• Interface type: RJ45
• Jacket materials: ABS+TPU+PC
• Working temperatures: -10 to 60°C
• Storage temperatures: -20 to 60°C
• Operation humidity: 0 to 95%
• Shock resistance: 100m/ 2.5m drop on concrete surface
• Language: multi-language

• Yellow color :
•

Normal cable is USB cable.
