1D Laser Barcode Scanner in Higher Scanning Speed, for POS Systems

Name: 1D Laser Barcode Scanner in Higher Scanning Speed, for POS Systems
Brand: AIBAO
SKU: 115454103
Availability: InStock

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AIBAO

Model Number:

B-10

Guangzhou Heshi Office Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AIBAO

Model Number B-10

Specifications

1. 1D laser scanner
2. With base support
3. Hihger speed
4. USB/ RS232/ PS2 port for your choice
5. Error rate < 1/5 million

Technical parameters:

Input voltage: 5V DC ± 5%
Power: 258mW; Work; 100mW; Task state: 380mW (maximum peak)
Current: 50mA; Work: 30mW

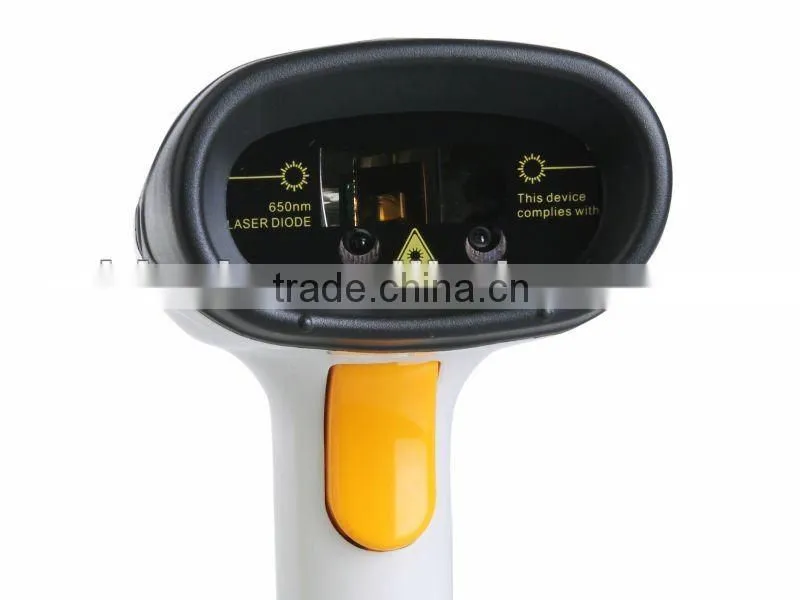

Source: 650nm visible laser diode
Way of use: Fixed/ Support
Task state: 100mW (maximum peak)
Electrostatic discharge: 15kV electrostatic discharge
Laser grade: state secondary laser safety standard
Depth of field: 2 to 9cm (0.1mm bar width) and 3 to 40cm(0.3mm bar width)
Scan width: 5 to 30cm
Decode speed: 120 times/s
Readable bar width: minimum 0.1mm (4miles)
Decode capacity: UPC-A, UPC-E, EAN-13, ISBN/ISSN, Code 39, Codabar, interleaved 2 of 5 Code, Discrete 2 of 5, matrix 25 code, code 128, code11, MSI/PIESSEY, UK/PLES, SEY, UCC/EAN128 code, China post code and more
Notice method Indicator: LED and buzzer
System interface: IBM PS/2 keyboard, IBM PC/XT/AT, RS-232 serial interface
Standard 2.0 USB port
Trigger method: operating manual, continuous scan automatically and infrared scanning automatically and holder scanning automatically (selectable)
Product dimensions: 9.80 x 6.80 x 15.80cm (L x W x H)
Weight: 135g
Electric cable standard: straight line 2m
Interface type: RJ45
Jacket materials: ABS/PC/PVC
Working temperatures: -10 to 60°C
Storage temperatures: -20 to 60°C
Operation humidity: 0 to 95%
Shock resistance: 100m/ 2.5m drop on concrete surface
Language: multi-language
