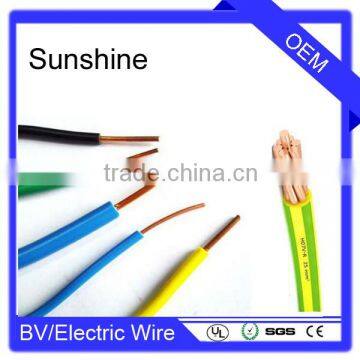

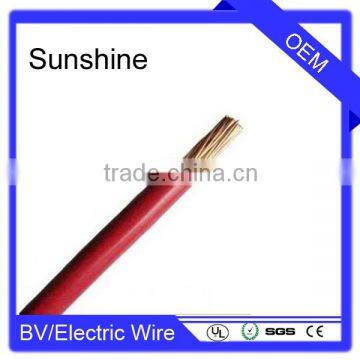

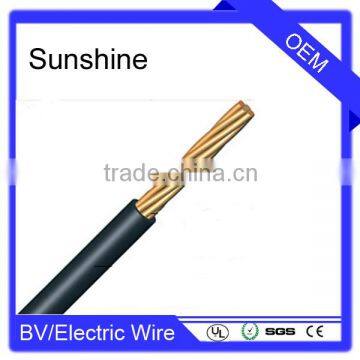

Twin and earth flat cable waterproof bv cable
Nominal Section(mm2) |
Number /diameter of core (mm) | Thickness of insulation(mm) | Outer diameter(mm) | BV weight (kg/km) | BLV weight (kg/km) | Thickness of sheath(mm) |
| 1.5 | 1/1.38 |
0.7 | 2.78 | 20.07 | / | 0.8 |
| 2.5 | 1/1.78 | 0.8 | 3.38 | 31.72 | 16.32 | 0.8 |
| 4 | 1/2.25 | 0.8 | 3.85 | 46.7 | 22.09 | 0.9 |
| 6 | 1/2.76 | 0.8 | 4.36 | 66.43 | 29.39 | 0.9 |
| 10 | 7/1.35 | 1 | 6.05 | 113.15 | 50.71 | 0.9 |
| 16 | 7/1.70 | 1 | 7.1 | 170.56 | 71.55 | 0.9 |
| 25 | 7/2.14 | 1.2 | 8.82 | 267.85 | 110.96 | 1.2 |
| 35 | 7/2.52 | 1.2 | 9.96 | 361.34 | 143.78 | 1.2 |
| 50 | 19/1.78 | 1.4 | 11.7 | 490.78 | 195.74 | 1.4 |
| 70 | 19/2.14 | 1.4 | 13.5 | 691.22 | 264.77 | 1.4 |
| 95 | 19/2.52 | 1.6 | 15.8 | 954.92 | 363.58 | 1.6 |
| 120 | 37/2.03 | 1.6 | 17.41 | 1191.27 | 443.7 | 1.6 |
| 150 | 37/2.25 | 1.8 | 19.35 | 1465.85 | 547.47 | 1.8 |
| 185 | 37/2.52 | 2 | 21.64 | 1837.14 | 685.12 | 2 |
| 240 | 61/2.24 | 2.2 | 24.56 | 2384.59 | 883.48 | 2.2 |
| 300 | 61/2.50 | 2.4 | 27.3 | 2963.24 | 1093.44 | 2.4 |
| 400 | 61/2.89 | 2.6 | 31.21 | 3934.43 | 1435.75 | 2.5 |
Our products apply to electrical appliance, instrument, small electric tools, power lighting, telecommunication equipment with AC rated voltage(Uo/U) up to and including 450/750V.
Features:
a. Laying temperature: ≥ 0℃
b.The working temperature: the max working temperature of 60227IEC07(BV-90) and 60227IEC08(RV-90) are 90℃, others are 70℃ .
c. acceptable curved radius : the external diameter(D) less than 25mm, the curved radius isn't less than 4D;if external diameter is above and including 25mm, the curved radius should be not less than 6D. (D is the wire's actual outer diameter.)
| 1, Wire Drawing | 2, Conductor Stranding | 3,Wrapping |
| ||
| 4,Spurt Code | 5, Molding |
6, Extrusion |
| ||
| 7, Armour | 8, Testing | 9, Packing&Delivery |
| ||
| Advantage | Delivery time( Working Day) | |||||
| 2-3 | 3-7 | 7-10 | 10-20 | 20-30 | >30 | |
| Airmail Post | 10% | 50% | 35% | 5% | ||
| EMS | 5% | 50% | 30% | 15% | ||
| DHL | 5% | 80% | 15% | |||
| Fedex | 5% | 80% | 15% | |||
| UPS | 80% | 20% | ||||
| UPS Expedited | 30% | 70% | ||||
|
|
The wire is widely used in houses, construction and other industrial sites.
Sunshine cable is one of the most famous and reputation cable manufacturer in China. We have more than 500 skillful employees to make products with high quality. Our products are seld to all over the world including Europe, Australia, the US, Canada, Brazil and other areas.
Our company specializes in producing conductors, utp cables, medium/high-pressure cables, pvc/xlpe cables, YC cable, BV cable, aerial insulation cable and coexial cable. Besides, we offer the most efficient and effective assembly services.
If you are interested in any of our products, feel free to contact us. We are looking forward to establishing successful and long-term business relationships with your esteemed company.
- What kind of cable do you produce?
We specialize in producing various conductors, pvc/xlpe cable, YC calbe, BV cable, areial cable, coexial cable and so on.
- What is your delivery time?
Usually, our delivery time wihtin 7days after received deposit.
- What is your payment term?
Usually, we accept T/T. Other payment, we can negotiate with customers.
- Can you customize cables basing on customer's sample?
Yes, of course
- What is your minimum order quantity?
1 box for EXW as your samples,
- Can I get some discount if we place a bulk order?
Yes, of course you can, we used to give some discount for our long time cooperation.
