Help CenterGREATCOOL Solar Energy Systems Solar Panel For Hot Water
Related Products
-
GREATCOOL Solar Energy Systems Thermodynamic Solar PanelUS$ 30 - 55MOQ: 50 Pieces -
GREATCOOL Aluminum Roll Bond Thermodynamic Solar Panel Collector for Hot WaterUS$ 30 - 55MOQ: 50 Pieces
-
GREATCOOL Thermodynamic Solar PanelUS$ 40 - 60MOQ: 50 Pieces
-
GREATCOOL Refrigerator Wire Tube CondenserUS$ 1 - 10MOQ: 500 Pieces
-
GREATCOOL Non-frost Evaporator/aluminum Fin EvaporatorUS$ 1 - 50MOQ: 1000 Pieces
Specifications | |
Application |
Solar water heater system |
Raw material |
Al-plate: finished products thickness: 1.1 ~ 2.0mm , |
Structure |
Double side roll bond solar panel
|
Key process |
Prepare the material-Cleaning-Printing-Rolling-Annealing-Punching-Leveling- Blowing up – Folding and shaping-Capillary connecting-Assembly welding-Leakage Test-Cleaning and dry-Coating-Curing-Inspection-Packing. |
Size |
Width: 1200 mm (max) Length:2300 mm (max) |
Performance |
Absorb solar energy |
Note |
Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different new models. |
How to work:

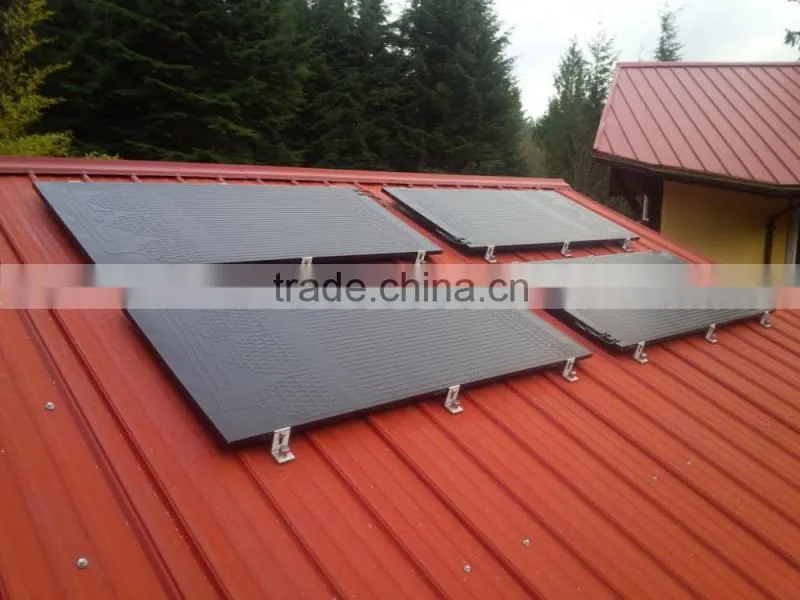

A thermodynamic panel is fitted to the outside of the property, usually on a south facing wall or roof. Refrigerant enters the panel at -22°C and is heated by the air around the panel until it becomes a gas. This heat can come from the air, sun or rain as long as the outside temperature is above -22°C. The gas then passes through a compressor which increases the temperature. The heat is released into the water tank through a heat exchange coil to a maximum temperature of 55°C. The cooler refrigerant then circulates back to the panel to be warmed again. The system uses a small amount of electricity to run but mostly relies on the ambient heat outside. For every unit of electricity used, the system will generate 3 - 6 units of heat for your home.

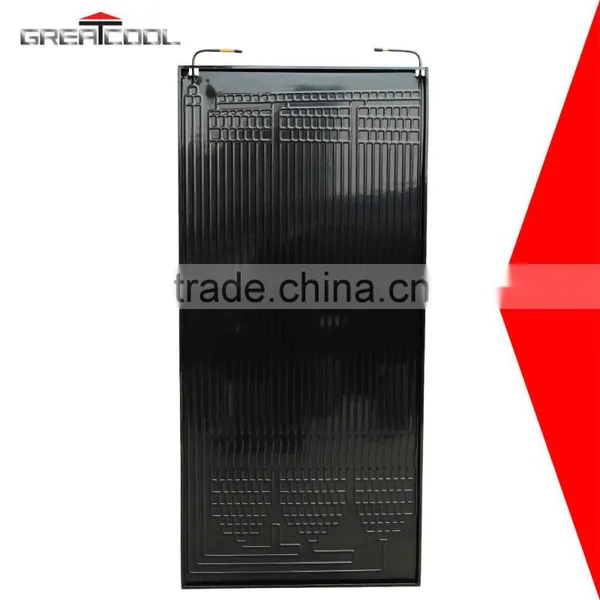

Roll bond evaporator is made up by two pieces of printed aluminum plates through the crafts contain reunite,roll and blow bulge.
1) Size can up to width 700mm, length 2000mm,thickness of finished plate1.2-1.8mm
2) Surface treatment: No treatment or Powder coating;
3) Inner quality:No leakage.It can meet the requirements of inner cleanliness of CFC refrigerating medium and non-CFC refrigerating medium.
4) We can produce according to the drawings or samples provided by you, also we can help you design and produce different models of roll bond evaporator.
More details,please feel free to contact with us.
