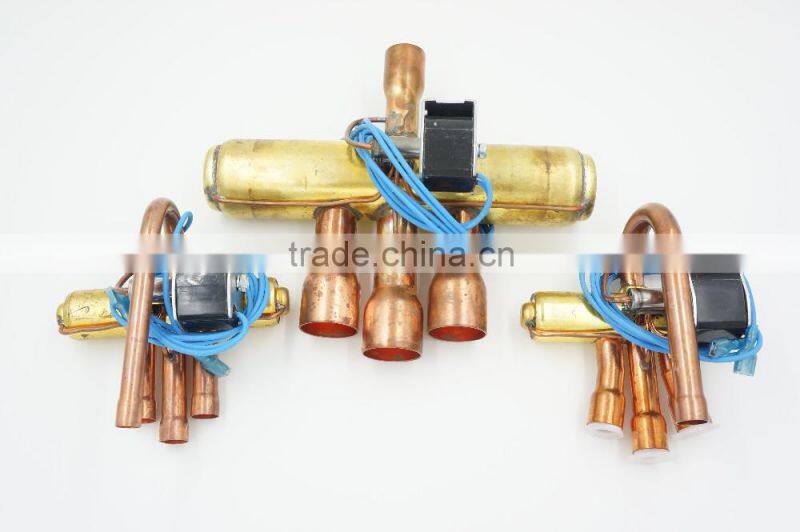

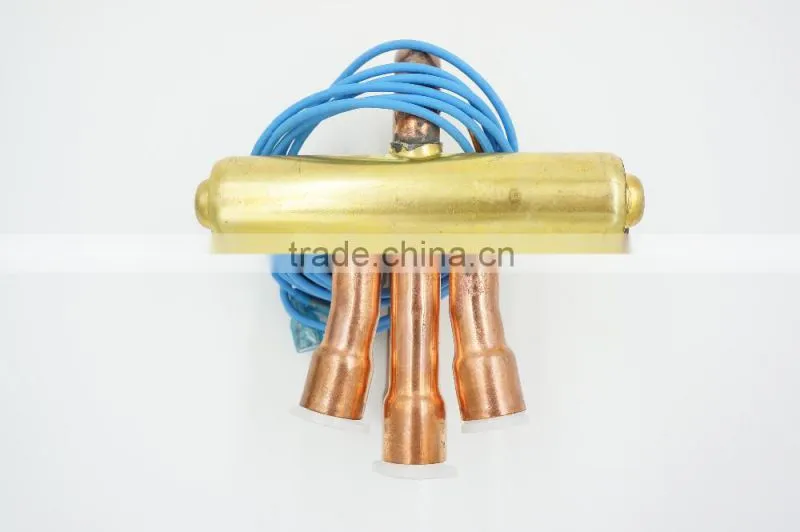

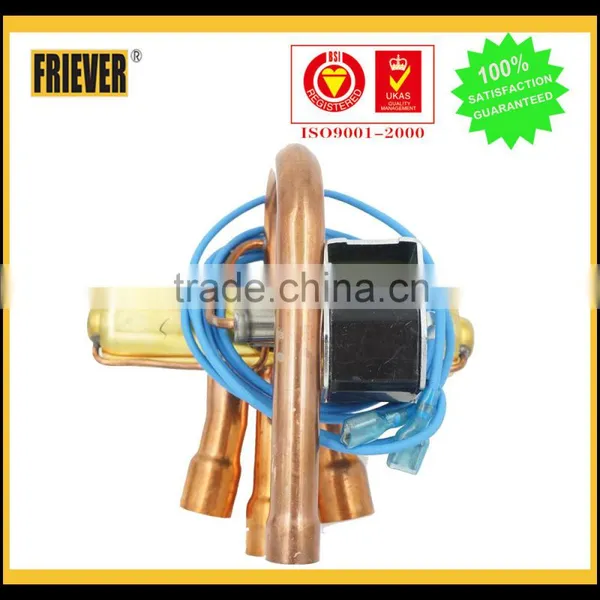

FRIEVER 4 Way Reversing Valve for Air Conditioner
US$ 5 - 20
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Vacuum
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FRIEVER Air Conditioning 4 Way Reversing ValveUS$ 5 - 50MOQ: 100 Pieces -
FRIEVER 4 Way Reversing Valve for Air ConditionerUS$ 5 - 20MOQ: 100 Pieces
-
FRIEVER Air Conditioner Parts Service ValveUS$ 0.5 - 5MOQ: 500 Pieces
-
FRIEVER Air Conditioner Refrigeration Copper Service ValveUS$ 1 - 5MOQ: 10000 Pieces
-
FRIEVER Air Conditioner Parts Stop Valve for Air ConditionerUS$ 0.5 - 5MOQ: 500 Pieces
Standard or Nonstandard
Standard
Structure
Control
Pressure
Vacuum
Power
Pneumatic
Material
Brass
Temperature of Media
Low Temperature
Media
Gas
Port Size
1/4"sae
Place of Origin
Zhejiang, China
Model Number
4V6
Brand Name
FRIEVER
Application
General
Specifications of 4 Way Reversing Valve For Air Conditioner
Product Description
| MODEL | PAVEMENT(MM) | R22 CAPACITY(US TON) | RANGER OF CAPACITY (REFERENCE VALUE)(KW) | JOINT PIPE (MM) | |||
| R22/R407C | R410A | R134A | D PIPE | ESC PIPE | |||
| MIN/MAX | MIN/MAX | MIN/MAX | |||||
| DSF-4A23 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 5/16 | 3/8 |
| DSF-4A33 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 3/8 | 3/8 |
| DSF-4B23 | 8 | 1 | 1/4.9 | 1/5.5 | 1/3.9 | 5/16 | 3/8 |
| DSF-9A24 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 5/16 | 1/2 |
| DSF-9A34 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 3/8 | 1/2 |
| DSF-9B24 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 5/16 | 1/2 |
| DSF-9B34 | 11.1 | 2 | 2.6/9.8 | 2.6/11 | 2.6/7.7 | 3/8 | 1/2 |
| DSF-11C35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11C45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11D35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11D45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11E35 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 3/8 | 5/8 |
| DSF-11E45 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 5/8 |
| DSF-11E46 | 11.5 | 3 | 2.6/12.7 | 2.6/14 | 2.6/9.8 | 1/2 | 3/4 |
| DSF-20A46 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 3/4 |
| DSF-20B46 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 3/4 |
| DSF-20A47 | 16 | 6 | 4/19 | 5/24 | 3/15 | 1/2 | 7/8 |
| DSF-20A57 | 16 | 6 | 4/19 | 5/24 | 3/15 | 5/8 | 7/8 |
| DSF-35A47 | 20 | 10 | 11/38 | 13/47 | 9/29 | 1/2 | 7/8 |
| DSF-35A57 | 20 | 10 | 11/38 | 13/47 | 9/29 | 5/8 | 7/8 |
| DSF-35A67 | 20 | 10 | 11/38 | 13/47 | 9/29 | 3/4 | 7/8 |
| DSF-35A69 | 20 | 10 | 11/38 | 13/47 | 9/29 | 3/4 | 9/8 |
| DSF-35A79 | 20 | 10 | 11/38 | 13/47 | 9/29 | 7/8 | 9/8 |
| DSF-48A711 | 25 | 13 | 23/47 | 27/59 | 19/36 | 7/8 | 11/8 |
| DSF-48A911 | 25 | 13 | 23/47 | 27/59 | 19/36 | 9/8 | 11/8 |
| DSF-48F711 | 25 | 13 | 23/47 | 27/59 | 19/36 | 7/8 | 11/8 |
| DSF-48F911 | 25 | 13 | 23/47 | 27/59 | 19/36 | 9/8 | 11/8 |
| DSF-70A810 | 26 | 20 | 18/72 | 21/91 | 14/56 | 1 | 5/4 |
| DSF-70A911 | 26 | 20 | 18/72 | 21/91 | 14/56 | 9/8 | 11/8 |
| DSF-100A1012 | 35 | 30 | 26/109 | 31/137 | 22/85 | 5/4 | 3/2 |
| DSF-100A1013 | 35 | 30 | 26/109 | 31/137 | 22/85 | 5/4 | 13/8 |
| DSF-140A1214 | 41 | 40 | 35/145 | 42/183 | 29/113 | 3/2 | 7/4 |
| DSF-140A1314 | 41 | 40 | 35/145 | 42/183 | 29/113 | 13/8 | 7/4 |
| DSF-180A1217 | 46 | 50 | 35/181 | 42/228 | 29/141 | 3/2 | 17/8 |
| DSF-180A1417 | 46 | 50 | 35/181 | 42/228 | 29/141 | 7/4 | 17/8 |
More details,please feel free to contact with us.
