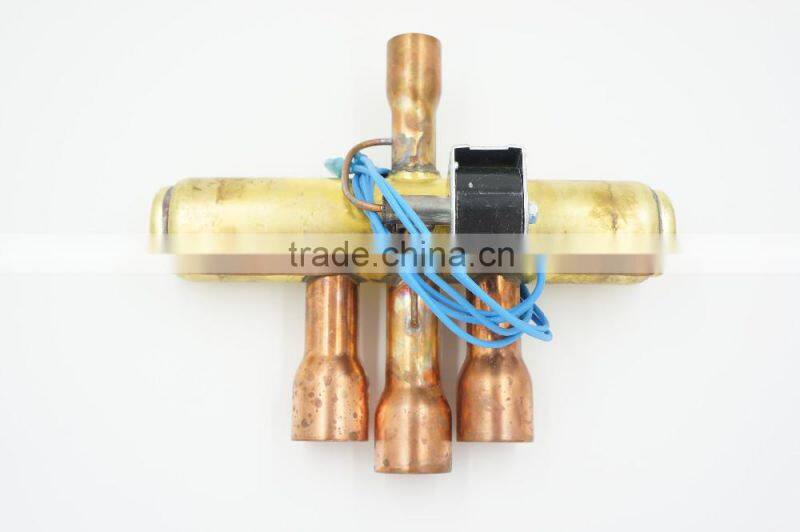

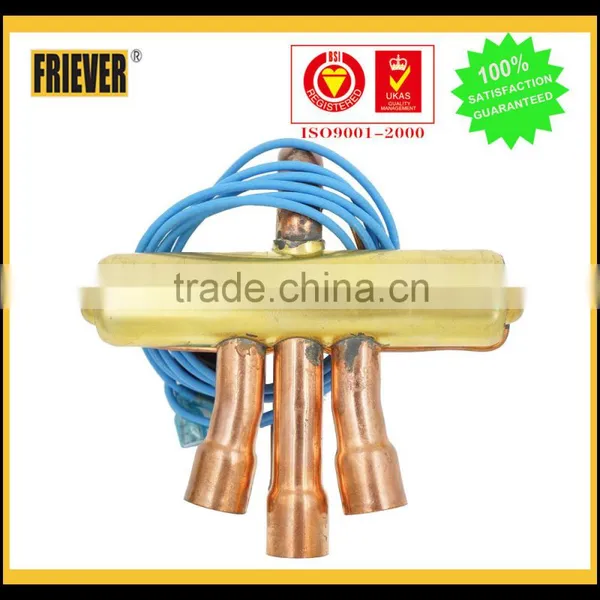

FRIEVER Air Conditioning 4 Way Reversing Valve

Name: FRIEVER Air Conditioning 4 Way Reversing Valve
Brand: FRIEVER
SKU: 115444593
Availability: InStock

US$ 5 - 50 MOQ: 100 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Stop

Pressure:

High Pressure

Hangzhou Greatcool Refrigeration Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Stop

Pressure High Pressure

Power Pneumatic

Material Brass

Temperature of Media Low Temperature

Media Gas

Port Size 1/4"sae

Place of Origin Zhejiang, China

Model Number 4v5

Brand Name FRIEVER

Application General

Specifications of Air Conditioning 4 way Reversing Valve

Product Description

MODEL	PAVEMENT(MM)	R22 CAPACITY(US TON)	RANGER OF CAPACITY (REFERENCE VALUE)(KW)			JOINT PIPE (MM)
			R22/R407C	R410A	R134A	D PIPE	ESC PIPE
			MIN/MAX	MIN/MAX	MIN/MAX	D PIPE	ESC PIPE
DSF-4A23	8	1	1/4.9	1/5.5	1/3.9	5/16	3/8
DSF-4A33	8	1	1/4.9	1/5.5	1/3.9	3/8	3/8
DSF-4B23	8	1	1/4.9	1/5.5	1/3.9	5/16	3/8
DSF-9A24	11.1	2	2.6/9.8	2.6/11	2.6/7.7	5/16	1/2
DSF-9A34	11.1	2	2.6/9.8	2.6/11	2.6/7.7	3/8	1/2
DSF-9B24	11.1	2	2.6/9.8	2.6/11	2.6/7.7	5/16	1/2
DSF-9B34	11.1	2	2.6/9.8	2.6/11	2.6/7.7	3/8	1/2
DSF-11C35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11C45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11D35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11D45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11E35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11E45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11E46	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	3/4
DSF-20A46	16	6	4/19	5/24	3/15	1/2	3/4
DSF-20B46	16	6	4/19	5/24	3/15	1/2	3/4
DSF-20A47	16	6	4/19	5/24	3/15	1/2	7/8
DSF-20A57	16	6	4/19	5/24	3/15	5/8	7/8
DSF-35A47	20	10	11/38	13/47	9/29	1/2	7/8
DSF-35A57	20	10	11/38	13/47	9/29	5/8	7/8
DSF-35A67	20	10	11/38	13/47	9/29	3/4	7/8
DSF-35A69	20	10	11/38	13/47	9/29	3/4	9/8
DSF-35A79	20	10	11/38	13/47	9/29	7/8	9/8
DSF-48A711	25	13	23/47	27/59	19/36	7/8	11/8
DSF-48A911	25	13	23/47	27/59	19/36	9/8	11/8
DSF-48F711	25	13	23/47	27/59	19/36	7/8	11/8
DSF-48F911	25	13	23/47	27/59	19/36	9/8	11/8
DSF-70A810	26	20	18/72	21/91	14/56	1	5/4
DSF-70A911	26	20	18/72	21/91	14/56	9/8	11/8
DSF-100A1012	35	30	26/109	31/137	22/85	5/4	3/2
DSF-100A1013	35	30	26/109	31/137	22/85	5/4	13/8
DSF-140A1214	41	40	35/145	42/183	29/113	3/2	7/4
DSF-140A1314	41	40	35/145	42/183	29/113	13/8	7/4
DSF-180A1217	46	50	35/181	42/228	29/141	3/2	17/8
DSF-180A1417	46	50	35/181	42/228	29/141	7/4	17/8
