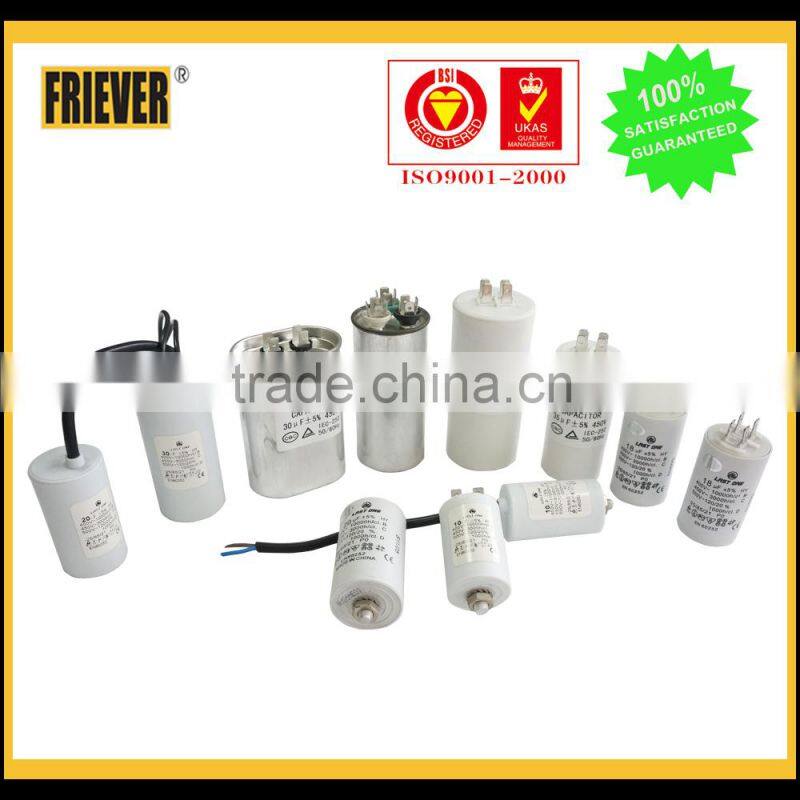

Help CenterFRIEVER Motor Capacitor
Related Products
-
FRIEVER Running CapacitorUS$ 0.5 - 10MOQ: 1000 Pieces -
FRIEVER Refrigerator Parts Timer for Refrigerator/defrosting Timer DBZ Serie Quality ChoiceNegotiableMOQ: 500 Pieces
-
FRIEVER Refrigerator Parts Refrigerator Defrost TimerUS$ 1 - 5MOQ: 2000 Pieces
-
FRIEVER Mapp Gas Torch/Welding TorchUS$ 1 - 100MOQ: 100 Sets
-
FRIEVER Mapp Torch/mapp Gas Welding TorchUS$ 5 - 30MOQ: 100 Pieces

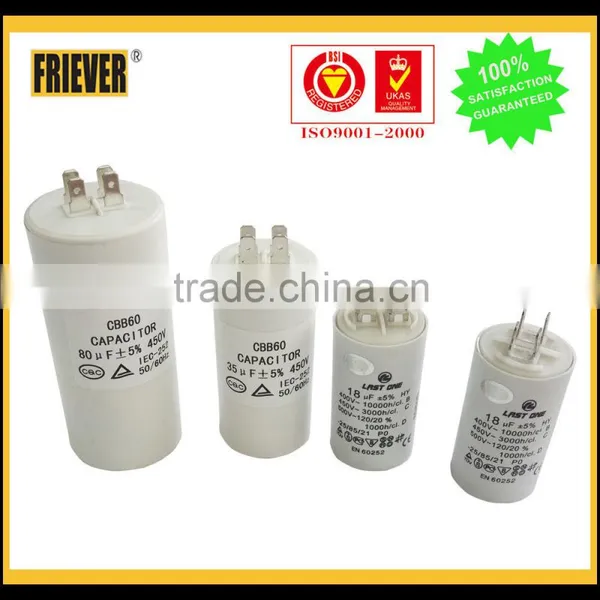

CBB60 motor running capacitor,motor capacitor pp film,plastic can for AC motor run,UL,CE,TUV,ROHS Approved
Capacitor,capacitors,capacitors,capasitor
Run capacitor,run capacitors,
Motor run capacitor,motor run capacitors
Motor running capacitor,motor running capacitors
Capacitor for motor running
Capacitor for motor
CBB60 capacitors,CBB60 capacitor
CBB60 motor capacitors,CBB60 motor running capacitor
Rated Voltage:
250Vac, 300Vac, 370Vac,380Vac, 400Vac, 440Vac, 450Vac,500Vac
250V, 300V, 370V,380V, 400V, 440V, 450V,500V
250Vca, 300Vca, 370Vca,380Vca, 400Vca, 440Vca, 450Vca,500Vca
250Volt, 300Volt, 370Volt,380Volt, 400Volt, 440Volt, 450Volt,500Volt
Rated Capacitance
1uf,1.5uf,2uf,2.5uf,3uf,3.5uf,4uf,4.5uf,5uf,6uf,7uf,8uf,9uf,10uf,12uf,14uf,15uf,16uf,18uf,20uf,22uf,24uf
25uf,30uf,33uf,35uf,40uf,45uf,50uf,55uf,60uf,65uf,70uf,75uf,80uf,90uf,100uf,120uf
1mf,1.5mf,2mf,2.5mf,3mf,3.5mf,4mf,4.5mf,5mf,6mf,7mf,8mf,9mf,10mf,12mf,14mf,15mf,16mf,18mf,20mf,22mf,24mf
25mf,30mf,33mf,35mf,40mf,45mf,50mf,55mf,60mf,65mf,70mf,75mf,80mf,90mf,100mf,120mf
1Mfd,1.5Mfd,2Mfd,2.5Mfd,3Mfd,3.5Mfd,4Mfd,4.5Mfd,5Mfd,6Mfd,7Mfd,8Mfd,9Mfd,10Mfd,12Mfd,14Mfd,15Mfd,16Mfd,18Mfd,20Mfd,22Mfd,24Mfd
25Mfd,30Mfd,33Mfd,35Mfd,40Mfd,45Mfd,50Mfd,55Mfd,60Mfd,65Mfd,70Mfd,75Mfd,80Mfd,90Mfd,100Mfd,120Mfd
1mkf,1.5mkf,2mkf,2.5mkf,3mkf,3.5mkf,4mkf,4.5mkf,5mkf,6mkf,7mkf,8mkf,9mkf,10mkf,12mkf,14mkf,15mkf,16mkf,18mkf,20mkf,22mkf,24mkf
25mkf,30mkf,33mkf,35mkf,40mkf,45mkf,50mkf,55mkf,60mkf,65mkf,70mkf,75mkf,80mkf,90mkf,100mkf,120mkf
motor run capacitor Specification:
Capacitance Range 1MFD-100MFD
Capacitance Tolerance +5%,+10%
Rated Alternate Voltage 250Vac, 300Vac, 370Vac, 400Vac, 440Vac, 500Vac
Rated Frequency 50/60 Hz
Dissipation Factors 0.35% Max
Operating Temp. 40/85/21
Case Material PBT, PP, Aluminium, Flammability Class - UL 94 V -2, 750C (RTI)
Dielectric Polypropylene with self healing SH
Termination Tin plated copper or copper alloy, 0.02in (0.51mm) thick minimum Insulated wire (AVL V2) AWM, No.18 or larger, rated 900 C Minimum, rated 600V for plastic case only.
Encapsulation Two component, self-extinguishing epoxy with resin and Harder, plastic, rated minimum UL 94 V-0, 900C minimum (RTI)
TT (Terminal to Terminal) 2 X Rated Voltage
TC (Terminal to Case) Minimum 2000 V AC for 1 Min.
Ref. Standard IEC - 252-1993
Quality System ISO-9002-1994
Approvals UL,TUV,CE,SGS
Application Electrical motor, pump, washing machine, air compressor, cleaner
motor run capacitor Alternate design include the followings:
1>Flat bottom or fixing stud M8×12
2>Fasten terminals 0.8×6.35 simple or double
3>Standard distance p=13.2mm±0.5
4>Solid cable or Flexibile cable
5>plastic can,ABS,PC.
