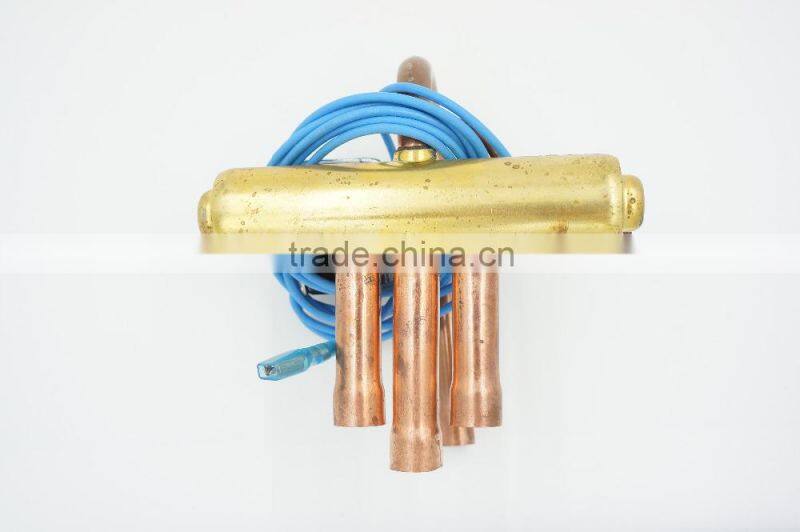

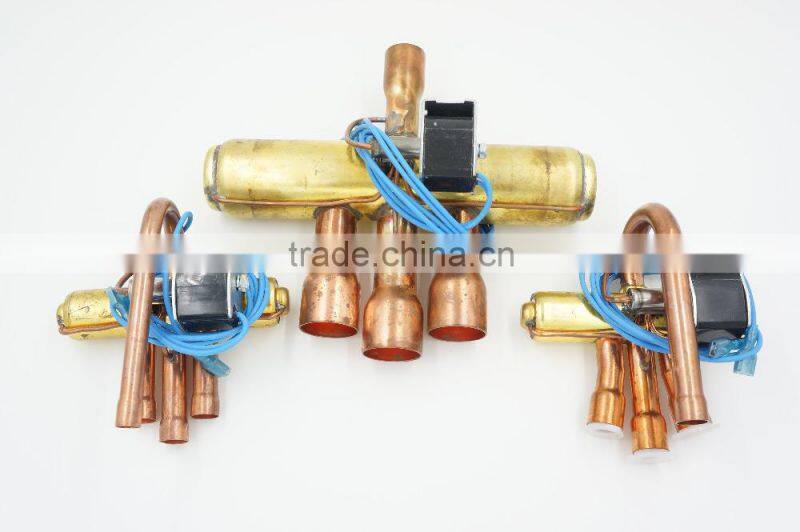

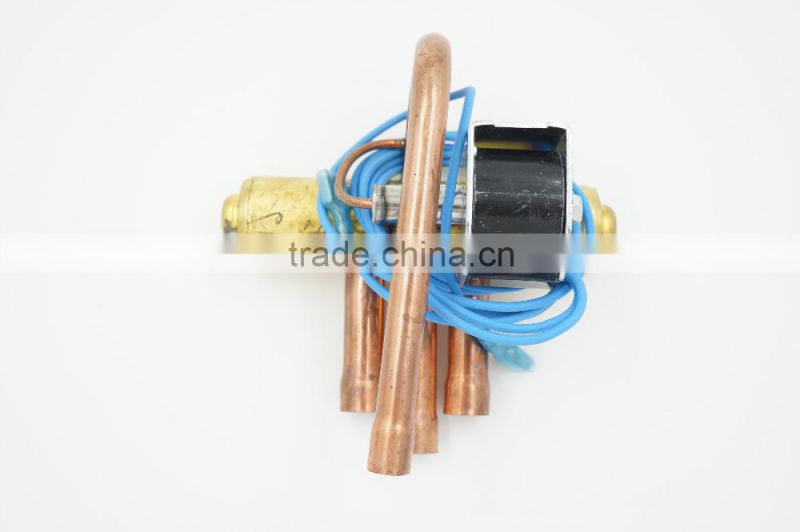

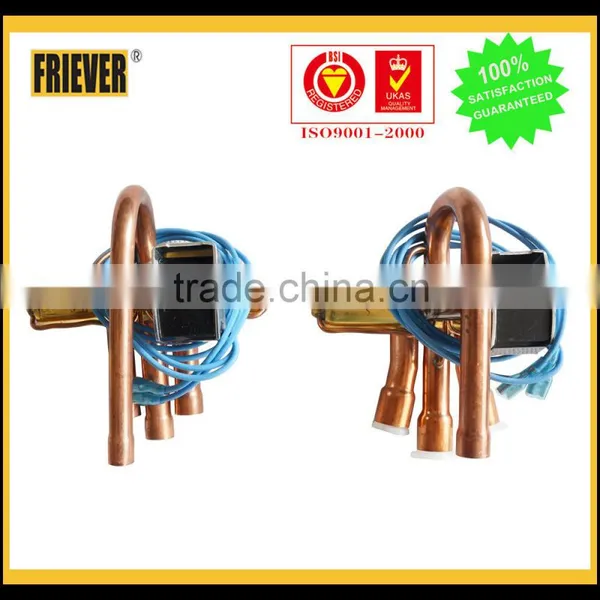

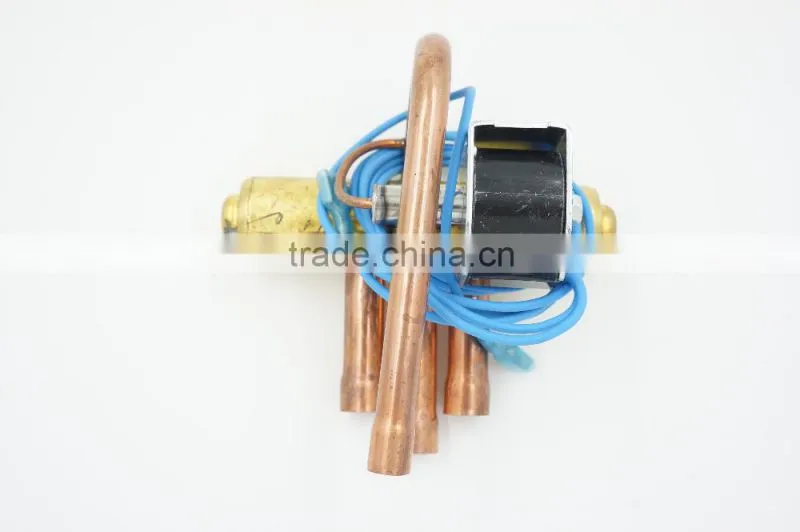

FRIEVER 4-ways Reversing Valve

Name: FRIEVER 4-ways Reversing Valve
Brand: FRIEVER
SKU: 115443089
Availability: InStock

US$ 5 - 50 MOQ: 50 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Pressure:

High Pressure

Power:

Solenoid

Hangzhou Greatcool Refrigeration Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Pressure High Pressure

Power Solenoid

Material Brass

Temperature of Media Low Temperature

Media Gas

Port Size 1/4,1/2,3/8,5/8,7/8,9/8,11/8,5/4

Place of Origin Zhejiang, China

Model Number 4v10

Brand Name FRIEVER

Application General

Specifications of 4-ways reversing valve

Product Description

It diverts the direction of the refrigerant flow under the electromagnetism of the pilot valve

to supply either heating in winter or cooling in summer to the conditioned place

Capacity: 4kW

Power: 3/4 to 1.5hp

Internal leakage: less than 1,000ml/min

Maximum operation pressure differential: 2.25mPa

Refrigerants: R22, R407c, R134a, and R410a

Connection at high-pressure side: 8.1mm

Connection at low-pressure side: 9.65mm

Minimum operation pressure differential: 0.25mPa

4 ways reversing valve,4-ways reversing valve,valve,reversing valve,4 way valve,4-way valve

MODEL	PAVEMENT(MM)	R22 CAPACITY(US TON)	RANGER OF CAPACITY (REFERENCE VALUE)(KW)			JOINT PIPE (MM)
			R22/R407C	R410A	R134A	D PIPE	ESC PIPE
			MIN/MAX	MIN/MAX	MIN/MAX	D PIPE	ESC PIPE
DSF-4A23	8	1	1/4.9	1/5.5	1/3.9	5/16	3/8
DSF-4A33	8	1	1/4.9	1/5.5	1/3.9	3/8	3/8
DSF-4B23	8	1	1/4.9	1/5.5	1/3.9	5/16	3/8
DSF-9A24	11.1	2	2.6/9.8	2.6/11	2.6/7.7	5/16	1/2
DSF-9A34	11.1	2	2.6/9.8	2.6/11	2.6/7.7	3/8	1/2
DSF-9B24	11.1	2	2.6/9.8	2.6/11	2.6/7.7	5/16	1/2
DSF-9B34	11.1	2	2.6/9.8	2.6/11	2.6/7.7	3/8	1/2
DSF-11C35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11C45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11D35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11D45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11E35	11.5	3	2.6/12.7	2.6/14	2.6/9.8	3/8	5/8
DSF-11E45	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	5/8
DSF-11E46	11.5	3	2.6/12.7	2.6/14	2.6/9.8	1/2	3/4
DSF-20A46	16	6	4/19	5/24	3/15	1/2	3/4
DSF-20B46	16	6	4/19	5/24	3/15	1/2	3/4
DSF-20A47	16	6	4/19	5/24	3/15	1/2	7/8
DSF-20A57	16	6	4/19	5/24	3/15	5/8	7/8
DSF-35A47	20	10	11/38	13/47	9/29	1/2	7/8
DSF-35A57	20	10	11/38	13/47	9/29	5/8	7/8
DSF-35A67	20	10	11/38	13/47	9/29	3/4	7/8
DSF-35A69	20	10	11/38	13/47	9/29	3/4	9/8
DSF-35A79	20	10	11/38	13/47	9/29	7/8	9/8
DSF-48A711	25	13	23/47	27/59	19/36	7/8	11/8
DSF-48A911	25	13	23/47	27/59	19/36	9/8	11/8
DSF-48F711	25	13	23/47	27/59	19/36	7/8	11/8
DSF-48F911	25	13	23/47	27/59	19/36	9/8	11/8
DSF-70A810	26	20	18/72	21/91	14/56	1	5/4
DSF-70A911	26	20	18/72	21/91	14/56	9/8	11/8
DSF-100A1012	35	30	26/109	31/137	22/85	5/4	3/2
DSF-100A1013	35	30	26/109	31/137	22/85	5/4	13/8
DSF-140A1214	41	40	35/145	42/183	29/113	3/2	7/4
DSF-140A1314	41	40	35/145	42/183	29/113	13/8	7/4
DSF-180A1217	46	50	35/181	42/228	29/141	3/2	17/8
DSF-180A1417	46	50	35/181	42/228	29/141	7/4	17/8
