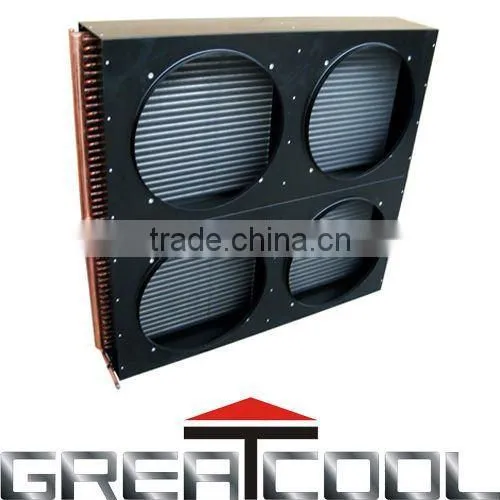

Industry Refrigeration Condenser

Industry Refrigeration Condenser thumbnail-1
Industry Refrigeration Condenser photo-1
US$ 1 - 3,000 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Condenser
Place of Origin:
Zhejiang, China
Brand Name:
GREATCOOL
Contact Supplier Request Quote Chat Now
Hangzhou Greatcool Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Condenser
Place of Origin Zhejiang, China
Brand Name GREATCOOL
Model Number SFN-20HP
Certification ROHS

Specifications

- Condenser
- 20HP SFN Series Air-Cooled Fin Type Condenser
- Material: 9.52mm Copper Tube, Aluminum Fin, Steel Housing

Industry Refrigeration Condenser

Industry Refrigeration Condenser

No. Drawing No. Dimensions (mm) Heat Exchange Area m2 FAN
(φmm)		 Cooling Capacity
(Watt)		 Rated Input of Fan Motor
(Watt)
La Lb Lc D Df Di Dg H 3.5mm 2.5mm
1 SFN-1/5HPD 315 285 255      3/8  3/8 255 1.4 2 200   33
2 SFN-1/4HPD-A 320 290 260 100 210  3/8  3/8 270 1.6 2.2 200 774 33
3 SFN-1/4HPD-B 235 230 925 38
4 SFN-1/3HPD 360 330 300 100 260  3/8  3/8 320 2.4 3.4 250 1235 70
5 SFN-3/8HPD 360 340 310 100 260  3/8  3/8 320 2.5 3.5 250 1333 70
6 SFN-1/2HPD 360 330 300 120 260  3/8  3/8 290 3.3 4.6 250 1570 70
7 SFN-3/4HPD-A 390 360 330 120 260  3/8  3/8 320 4.1 5.7 250 1779 70
8 SFN-3/4HPD-B 310 300 2406 120
9 SFN-1HPD-A 390 360 330 145 260  3/8  3/8 320 5.4 7.6 250 2025 70
10 SFN-1HPD-B 310 300 2817 120
11 SFN-1HP-CD 660 630 600 160 2-260  1/2  1/2 295 6.7 9.4 2-250 3117 2-70
12 SFN-1.5HPD 460 430 400 145 310  1/2  1/2 320 6.5 9.1 300 3214 120
13 SFN-1.5HPD-CD 660 630 600 160 2-260  5/8  1/2 295 9.0 12.6 2-250 3476 2-70
14 SFN-2HPD 440 410 380 165 310  5/8  1/2 360 9.1 12.7 300 3867 140
15 SFN-3HPD 660 630 600 200 420  3/4  5/8 520 22.8 31.9 400 7775 180
16 SFN-4HPD 660 630 600 220 420  3/4  5/8 520 27.3 38.2 400 9550 180
17 SFN-5HPD 1110 1080 1050 200 2-420  7/8  5/8 520 39.9 55.9 2-400 13975 2-180
18 SFN-10HPD   1235 1185 250 2-470  7/8  5/8 625     2-450
19 SFN-14HPD   1350 1300 250 2-570 1  5/8 830     2-550
20 SFN-17HPD   1150 1100 250 4-470 1  5/8 1130     4-450
21 SFN-20HPD   1300 1250 250 4-520 1-1/8  5/8 1250     4-500
22 SFN-28HPD   1500 1440 290 4-470 1-1/8  5/8 1200     4-450
23 SFN-32HPD   1650 1600 320 4-520 1-1/8  5/8 1250     4-500
24 SFN-35HPD   1600 1540 290 4-570 1-1/8 3/4 1400     4-550
25 SFN-40HPD   1800 1750 350 4-570 1-1/8 3/4 1450     4-550



Our  Condenser Coil carry out ISO standard and get RoHS report,we already supply to some famous manufacturer in Europe and China.



- Condenser
- 20HP SFN A Series Air-Cooled Fin Condenser
- Material: 9.52mm Copper Tube, Aluminum Fin, Steel Housing
- HVACR USED



We can supply according to costomers drawings or samples,also we can design as you need.

copper tube diameter: 7mm,5/16", 3/8",12mm and 1/2"

aluminum fin space:can up to 9.5mm max

pitch of holes and pitch of rows:   21*12.7mm,25*21.65mm and 31.75*27.5mm and 35*35

product length:   up to 4meters.

product height:   not limited

Size from 1/4HP to 40HP

fin type:  flat or corrugated or sine-wave

available temperature is above -40 degree.

20HP SFN Serial Aluninum Fin Copper Tube Air Cooled Condenser Coil
Air Cooled Condenser And Evaporator (Copper Tube)
