GREATCOOL 3/8HP Condenser Coil

GREATCOOL 3/8HP Condenser Coil thumbnail-1
GREATCOOL 3/8HP Condenser Coil photo-1
US$ 1 - 3,000 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GREATCOOL
Model Number:
fc70
Contact Supplier Request Quote Chat Now
Hangzhou Greatcool Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GREATCOOL
Model Number fc70
Type Condenser
Application Refrigeration Parts
Certification Other, RoHS



Specifications of freezer condenser coil



Product Description

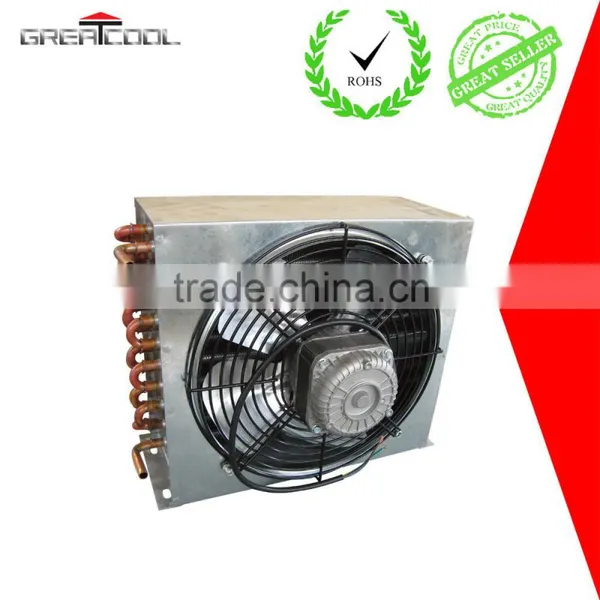

3/8HP Condenser Coil With Fan Motor as picture details as following:

Effective Length:290mm

Fin length:270mm

Width:90mm

Height:270mm

Fan Circle Diameter:210mm

Inlet Pipe Dia:3/8"

Outlet Pipe Dia:3/8"

Fan Motor:33W  Dia:200mm





We can supply according to costomers drawings or samples,also we can design as you need.

copper tube diameter: 7mm,5/16", 3/8",12mm and 1/2"

aluminum fin space:can up to 9.5mm max

pitch of holes and pitch of rows:   21*12.7mm,25*21.65mm and 31.75*27.5mm and 35*35

product length:   up to 4meters.

product height:   not limited

Size from 1/4HP to 40HP

fin type:  flat or corrugated or sine-wave

available temperature is above -40 degree.



EFN series condenser



Drawing No. Dimensions (mm)
La Lb Lc D Df Di Dg H
EFN-1/4HPD 260 240 220 90 210 3/8 3/8 240
EFN-3/8HPD 320 290 270 90 210 3/8 3/8 270
EFN-1/2HPD 320 290 270 100 260 3/8 3/8 270
EFN-3/4HPD 350 320 300 140 260 3/8 3/8 290
EFN-1HPD 420 390 370 140 310 3/8 3/8 320
EFN-1.5HPD 485 455 435 140 310 3/8 3/8 370
EFN-1.5HPD-2 660 640 610 140 2*260 1/2 1/2 270
EFN-2.5HPD-2 690 660 640 160 2*310 1/2 1/2 320







Packaging & Shipping





 GREATCOOL 3/8HP Condenser CoilGREATCOOL 3/8HP Condenser CoilGREATCOOL 3/8HP Condenser Coil



GREATCOOL 3/8HP Condenser Coil





Our Services





2013 Thailand  Bangkok RHVAC



GREATCOOL 3/8HP Condenser Coil



2015 ACREX INDIA EXHIBITION



GREATCOOL 3/8HP Condenser Coil



2015 SHANGHAI REFRIGERATION FAIR



GREATCOOL 3/8HP Condenser Coil
