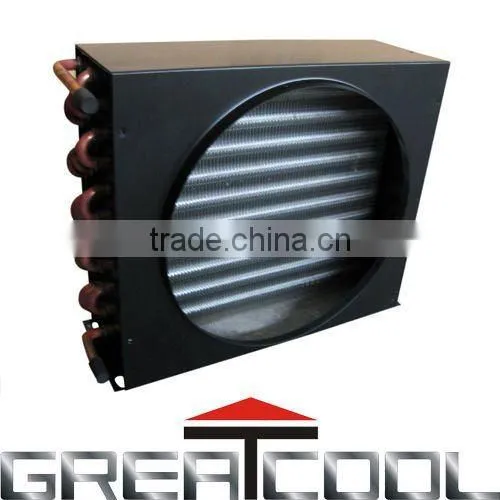

Condenser For Freezer

Condenser For Freezer thumbnail-1
Condenser For Freezer photo-1
US$ 1 - 3,000 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GREATCOOL
Model Number:
SFN-1/2HP
Contact Supplier Request Quote Chat Now
Hangzhou Greatcool Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GREATCOOL
Model Number SFN-1/2HP
Type Condenser
Application Refrigeration Parts
Certification Other, RoHS

Specifications

- Condenser
- 1/2HP SFN Serial Condenser For Freezer
- Material: 9.52mm Copper Tube, Aluminum Fin, Steel Housing
- HVAC&R

Condenser For Freezer

Condenser For Freezer

No. Drawing No. Dimensions (mm) Heat Exchange Area m2 FAN
(φmm)		 Cooling Capacity
(Watt)		 Rated Input of Fan Motor
(Watt)
La Lb Lc D Df Di Dg H 3.5mm 2.5mm
1 SFN-1/5HPD 315 285 255      3/8  3/8 255 1.4 2 200   33
2 SFN-1/4HPD-A 320 290 260 100 210  3/8  3/8 270 1.6 2.2 200 774 33
3 SFN-1/4HPD-B 235 230 925 38
4 SFN-1/3HPD 360 330 300 100 260  3/8  3/8 320 2.4 3.4 250 1235 70
5 SFN-3/8HPD 360 340 310 100 260  3/8  3/8 320 2.5 3.5 250 1333 70
6 SFN-1/2HPD 360 330 300 120 260  3/8  3/8 290 3.3 4.6 250 1570 70
7 SFN-3/4HPD-A 390 360 330 120 260  3/8  3/8 320 4.1 5.7 250 1779 70
8 SFN-3/4HPD-B 310 300 2406 120
9 SFN-1HPD-A 390 360 330 145 260  3/8  3/8 320 5.4 7.6 250 2025 70
10 SFN-1HPD-B 310 300 2817 120
11 SFN-1HP-CD 660 630 600 160 2-260  1/2  1/2 295 6.7 9.4 2-250 3117 2-70
12 SFN-1.5HPD 460 430 400 145 310  1/2  1/2 320 6.5 9.1 300 3214 120
13 SFN-1.5HPD-CD 660 630 600 160 2-260  5/8  1/2 295 9.0 12.6 2-250 3476 2-70
14 SFN-2HPD 440 410 380 165 310  5/8  1/2 360 9.1 12.7 300 3867 140
15 SFN-3HPD 660 630 600 200 420  3/4  5/8 520 22.8 31.9 400 7775 180
16 SFN-4HPD 660 630 600 220 420  3/4  5/8 520 27.3 38.2 400 9550 180
17 SFN-5HPD 1110 1080 1050 200 2-420  7/8  5/8 520 39.9 55.9 2-400 13975 2-180
18 SFN-10HPD   1235 1185 250 2-470  7/8  5/8 625     2-450
19 SFN-14HPD   1350 1300 250 2-570 1  5/8 830     2-550
20 SFN-17HPD   1150 1100 250 4-470 1  5/8 1130     4-450
21 SFN-20HPD   1300 1250 250 4-520 1-1/8  5/8 1250     4-500
22 SFN-28HPD   1500 1440 290 4-470 1-1/8  5/8 1200     4-450
23 SFN-32HPD   1650 1600 320 4-520 1-1/8  5/8 1250     4-500
24 SFN-35HPD   1600 1540 290 4-570 1-1/8 3/4 1400     4-550
25 SFN-40HPD   1800 1750 350 4-570 1-1/8 3/4 1450     4-550



Our  Condenser Coil carry out ISO standard and get RoHS report,we already supply to some famous manufacturer in Europe and China.

- Condenser
- 1/2HP SFN Serial Condenser For Freezer
- Material: 9.52mm Copper Tube, Aluminum Fin, Steel Housing
- HVAC&R



We can supply according to costomers drawings or samples,also we can desig n as you need.

copper tube diameter: 7mm,5/16", 3/8",12mm and 1/2"

aluminum fin space:can up to 9.5mm max

pitch of holes and pitch of rows:   21*12.7mm,25*21.65mm and 31.75*27.5mm and 35*35

product length:   up to 4meters.

product height:   not limited

Size from 1/4HP to 40HP

fin type:  flat or corrugated or sine-wave

available temperature is above -40 degree.

1/2HP SFN Serial Aluninum Fin Copper Tube Air Cooled Condenser Coil
